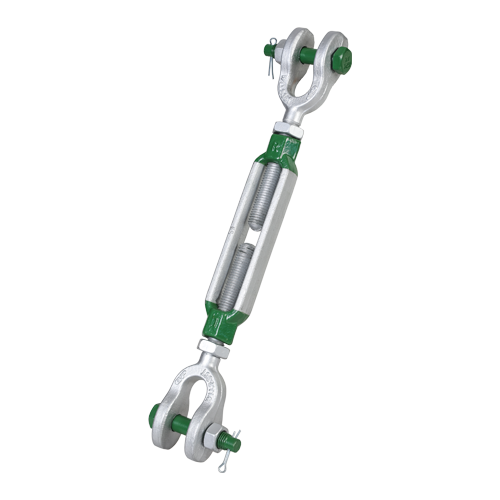

1-1/4" x 12" Green Pin® Jaw & Jaw Turnbuckle Galvanized BN 6.9 TON - SSGPMBGG3212
SSGPMBGG3212
$371.13
$0.00( / )
The Green Pin® JJ Turnbuckle BN is a turnbuckle with jaw-jaw end-fitting and a safety bolt which can be used for both lifting and lashing. The turnbuckle also offers a cotter pin and safety bolt which prevents accidental unscrewing of the pin.
- Can be used for both lifting and lashing
- Double safety (cotter pin & safety bolt)
- Design factor 5:1
- Temp. range-20°C up to +200°C
- Certification - 2.1, 2.2, 3.1, MTC, CE
- Generally to ASTM F1145-92, formerly U.S. Federal Specification FF-T-791b
Specifications
| Material | Drop forged high tensile steel SAE 1035 or 1045 |
| Finish | Hot dipped galvanized |
| WLL(Tonnes) | 6.9t |
| Take Up (Inches) | 12" |
| Products Code | G-6323 |
