1/2" DOG DOUBLE LEG DOMESTIC ALLOY CHAIN SLING G100 - WLL 26,000 LBS
Liftgear

1/2" DOG DOUBLE LEG DOMESTIC ALLOY CHAIN SLING G100 - WLL 26,000 LBS

SKU: 250-DOG-04
$301.65
View Details
Qty:
Your rigging equipment is now smart, with CertFID.
Learn More

Order Sheet

SKU Size Length Price Qty
250-DOG-04 1/2 in 4FT WLL: 26,000 LBS $301.65
210-DOG-06 1/2 in 6FT WLL: 26,000 LBS $343.65
210-DOG-08 1/2 in 8FT WLL: 26,000 LBS $385.65
210-DOG-10 1/2 in 10FT WLL: 26,000 LBS $427.65
210-DOG-12 1/2 in 12FT WLL: 26,000 LBS $469.65
210-DOG-14 1/2 in 14FT WLL: 26,000 LBS $511.65
210-DOG-16 1/2 in 16FT WLL: 26,000 LBS $553.65
210-DOG-18 1/2 in 18FT WLL: 26,000 LBS $595.65
210-DOG-20 1/2 in 20FT WLL: 26,000 LBS $637.65
250-DOG-04 $301.65
Size: 1/2 in Length: 4FT WLL: 26,000 LBS
210-DOG-06 $343.65
Size: 1/2 in Length: 6FT WLL: 26,000 LBS
210-DOG-08 $385.65
Size: 1/2 in Length: 8FT WLL: 26,000 LBS
210-DOG-10 $427.65
Size: 1/2 in Length: 10FT WLL: 26,000 LBS
210-DOG-12 $469.65
Size: 1/2 in Length: 12FT WLL: 26,000 LBS
210-DOG-14 $511.65
Size: 1/2 in Length: 14FT WLL: 26,000 LBS
210-DOG-16 $553.65
Size: 1/2 in Length: 16FT WLL: 26,000 LBS
210-DOG-18 $595.65
Size: 1/2 in Length: 18FT WLL: 26,000 LBS
210-DOG-20 $637.65
Size: 1/2 in Length: 20FT WLL: 26,000 LBS
0 items $0.00

Key Features

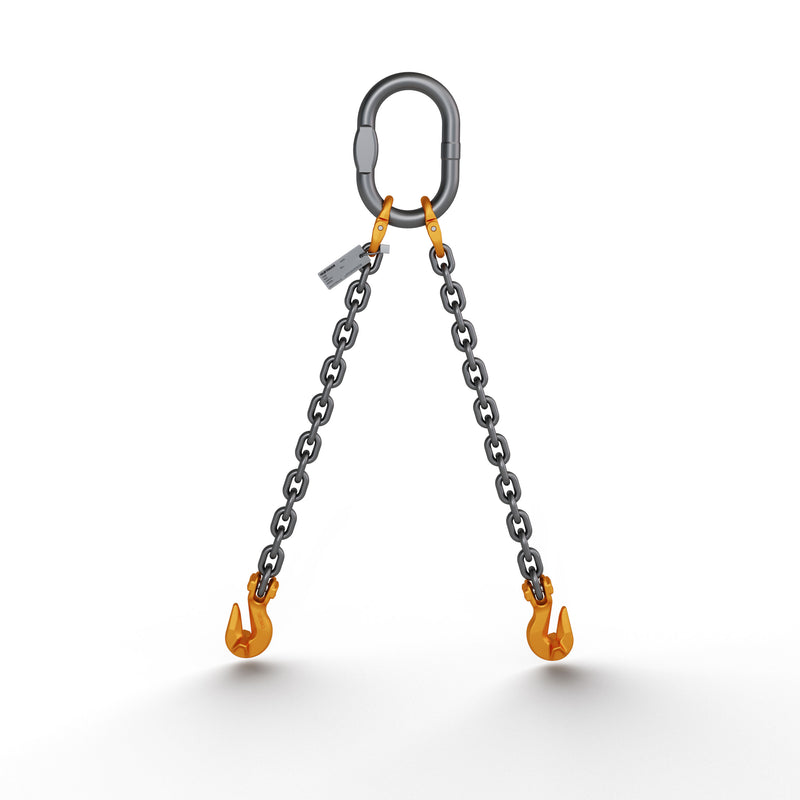

Double Leg Grade 100 alloy chain sling with master link on top, and grab hooks each end. Chain Sizes available in 9/32",3/8",1/2" and 5/8". Assembled with Premium Made in USA Grade 100 Alloy Steel Chain.

Specifications:

  • Made in USA Chain 🇺🇸
  • Metal tag with size, reach, capacity, and individual serial number
  • Approved for overhead lifting
  • Built in RFID Technology for asset management and safety compliance
  • 4:1 Design Factor

Grade 100 Chain Sling Specifications

Design Factor Single Leg Double Leg Triple and Quad Leg
4:1
Angle 90° 60° 45° 30° 60° 45° 30°
Chain Size Working Load Limit (lbs)
in mm
7/32" 6 3,000 5,100 4,200 3,000 7,800 6,300 4,500
9/32" 7 4,300 7,400 6,100 4,300 11,200 9,100 6,400
5/16" 8 5,700 9,900 8,100 5,700 14,800 12,100 8,500
3/8" 10 8,800 15,200 12,400 8,800 22,900 18,700 13,200
1/2" 13 15,000 26,000 21,200 15,000 39,000 31,800 22,500
5/8" 16 22,600 39,100 32,000 22,600 58,700 47,900 33,900
3/4" 20 35,300 61,100 49,900 35,300 91,700 74,900 53,000
7/8" 22 42,700 74,000 60,400 42,700 110,900 90,600 64,000
1" 26 59,700 103,400 84,400 59,700 155,100 126,600 89,550
1-1/4" 32 90,400 156,600 127,800 90,400 234,900 191,700 135,600

*Never Exceed Working Load Limits. Always follow your domestic safety regulations
