Liftgear

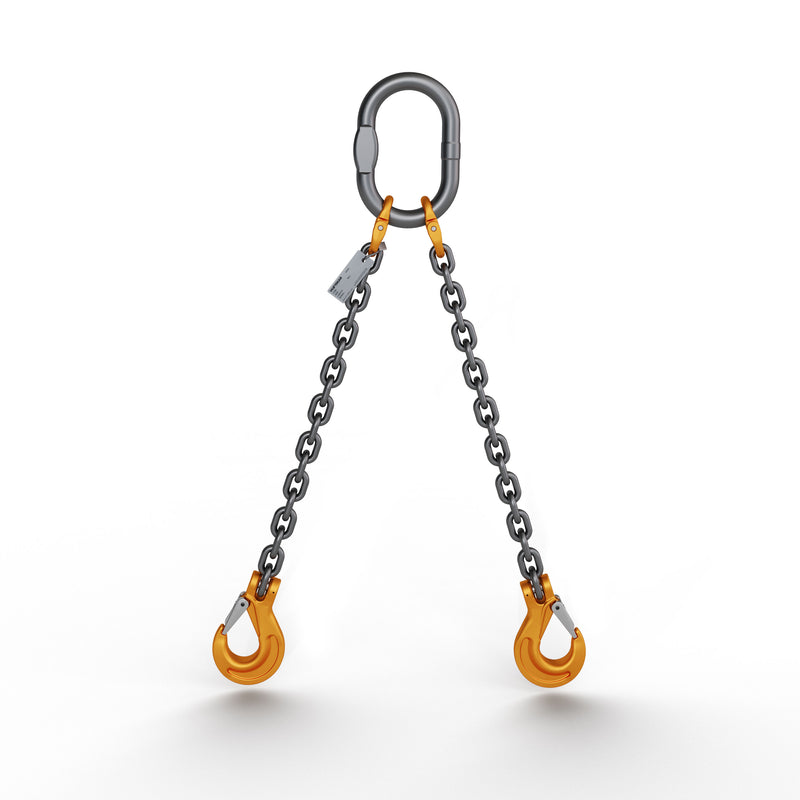

1/2" DOS DOUBLE LEG DOMESTIC ALLOY CHAIN SLING G100 - WLL 26,000 LBS
SKU: 250-DOS-04
$343.60
View Details
Order Sheet
| SKU | Size | Length | Price | Qty | |
|---|---|---|---|---|---|
| 250-DOS-04 | 1/2 in | 4FT WLL: 26,000 LBS | $343.60 |
|
|
| 250-DOS-06 | 1/2 in | 6FT WLL: 26,000 LBS | $382.09 |
|
|
| 250-DOS-08 | 1/2 in | 8FT WLL: 26,000 LBS | $420.58 |
|
|
| 250-DOS-10 | 1/2 in | 10FT WLL: 26,000 LBS | $459.07 |
|
|
| 250-DOS-12 | 1/2 in | 12FT WLL: 26,000 LBS | $497.56 |
|
|
| 250-DOS-14 | 1/2 in | 14FT WLL: 26,000 LBS | $536.04 |
|
|
| 250-DOS-16 | 1/2 in | 16FT WLL: 26,000 LBS | $574.53 |
|
|
| 250-DOS-18 | 1/2 in | 18FT WLL: 26,000 LBS | $613.02 |
|
|
| 250-DOS-20 | 1/2 in | 20FT WLL: 26,000 LBS | $651.51 |
|
250-DOS-04
$343.60
250-DOS-06
$382.09
250-DOS-08
$420.58
250-DOS-10
$459.07
250-DOS-12
$497.56
250-DOS-14
$536.04
250-DOS-16
$574.53
250-DOS-18
$613.02
250-DOS-20
$651.51
Key Features
Double leg alloy chain sling with master link on top and sling hooks on bottom ends. Chain Sizes available in 9/32",3/8",1/2" and 5/8". Assembled with Premium Made in USA Grade 100 Alloy Steel Chain.Â
Specifications:
- Made in USA Chain 🇺🇸
- Metal tag with size, reach, capacity, and individual serial number
- Approved for overhead lifting
- Built in RFID Technology for asset management and safety compliance
- 4:1 Design Factor
Grade 100 Chain Sling Specifications
| Design Factor | Single Leg | Double Leg | Triple and Quad Leg | |||||
|---|---|---|---|---|---|---|---|---|
| 4:1 |  |
 |
 |
 |
 |
 |
 |
|
| Angle | 90° | 60° | 45° | 30° | 60° | 45° | 30° | |
| Chain Size | Working Load Limit (lbs) | |||||||
| in | mm | |||||||
| 7/32" | 6 | 3,000 | 5,100 | 4,200 | 3,000 | 7,800 | 6,300 | 4,500 |
| 9/32" | 7 | 4,300 | 7,400 | 6,100 | 4,300 | 11,200 | 9,100 | 6,400 |
| 5/16" | 8 | 5,700 | 9,900 | 8,100 | 5,700 | 14,800 | 12,100 | 8,500 |
| 3/8" | 10 | 8,800 | 15,200 | 12,400 | 8,800 | 22,900 | 18,700 | 13,200 |
| 1/2" | 13 | 15,000 | 26,000 | 21,200 | 15,000 | 39,000 | 31,800 | 22,500 |
| 5/8" | 16 | 22,600 | 39,100 | 32,000 | 22,600 | 58,700 | 47,900 | 33,900 |
| 3/4" | 20 | 35,300 | 61,100 | 49,900 | 35,300 | 91,700 | 74,900 | 53,000 |
| 7/8" | 22 | 42,700 | 74,000 | 60,400 | 42,700 | 110,900 | 90,600 | 64,000 |
| 1" | 26 | 59,700 | 103,400 | 84,400 | 59,700 | 155,100 | 126,600 | 89,550 |
| 1-1/4" | 32 | 90,400 | 156,600 | 127,800 | 90,400 | 234,900 | 191,700 | 135,600 |
*Never Exceed Working Load Limits. Always follow your domestic safety regulations
