Order Sheet
| SKU | Length | Price | Qty | |
|---|---|---|---|---|
| 370-T011-B04K | 4' | $70.66 |
|
|
| 370-T011-B05K | 5' | $74.73 |
|
|
| 370-T011-B06K | 6' | $78.80 |
|
|
| 370-T011-B07K | 7' | $82.88 |
|
|
| 370-T011-B08K | 8' | $86.95 |
|
|
| 370-T011-B10K | 10' | $95.09 |
|
|
| 370-T011-B12K | 12' | $103.23 |
|
|
| 370-T011-B15K | 15' | $115.45 |
|
|
| 370-T011-B20K | 20' | $135.81 |
|
370-T011-B04K
$70.66
370-T011-B05K
$74.73
370-T011-B06K
$78.80
370-T011-B07K
$82.88
370-T011-B08K
$86.95
370-T011-B10K
$95.09
370-T011-B12K
$103.23
370-T011-B15K
$115.45
370-T011-B20K
$135.81
Working Load Limit
7.6 T @ 90°
Dia
7/8 in
Legs
1
Fit
Eye-Eye

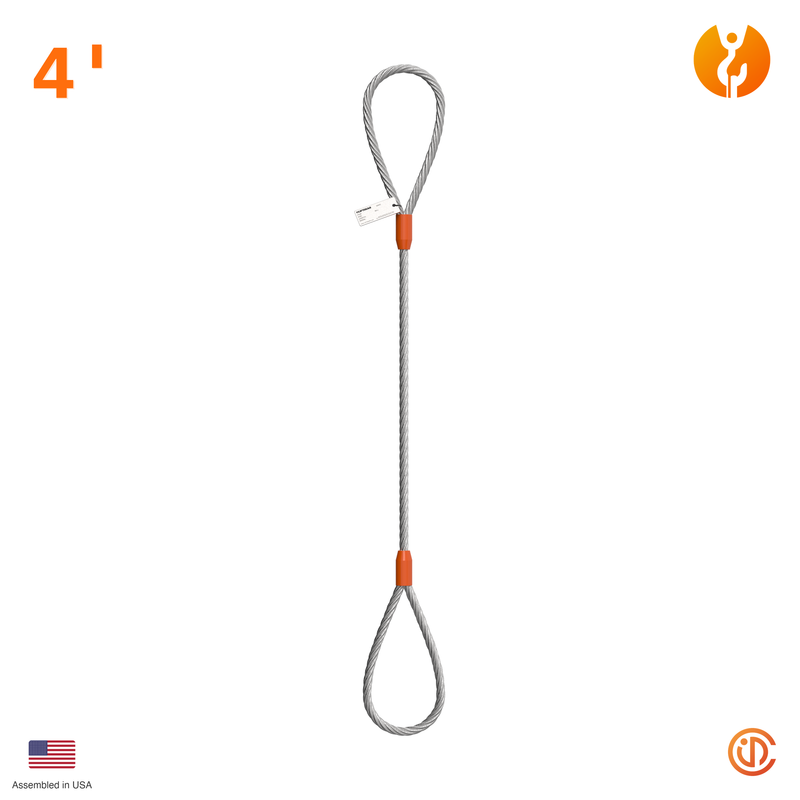

Single leg wire rope sling with flemish eye terminations at both ends. 7/8” diameter, 6×36WS Class IWRC bright wire rope construction, EIPS grade. Proof tested to 2× rated capacity with serialized tag and test certificate. Galvanized finish available on request.
Reach
4 – 20 FT
Top
FLEMISH EYE
Bottom
FLEMISH EYE
Termination
FLEMISH EYE SPLICE
Core
INDEPENDENT (IWRC)
Finish
BRIGHT (GALV. AVAIL.)
Grade
EIPS
Safety Factor
5 : 1
Proof Test
2× WLL
Weight
~1.42 LB/FT (ROPE)
Working Load Limits — Single Leg @ 90°
| Dia. | WLL (Tons) |
|---|---|
| 3/8” | 1.4 |
| 1/2” | 2.5 |
| 5/8” | 3.9 |
| 3/4” | 5.6 |
| 7/8” | 7.6 |
| 1” | 9.8 |
| 1-1/4” | 15 |
| 1-1/2” | 21 |
⚠
Never exceed the rated Working Load Limit. Sling capacity decreases at lower angles — verify the WLL for your specific hitch and angle before each lift. Inspect before every use per ASME B30.9.
Need a custom length, fitting, or configuration?
Contact Sales →
ASME B30.9 │ OSHA 29 CFR 1926.251 │ WSTDA-WRS-1
