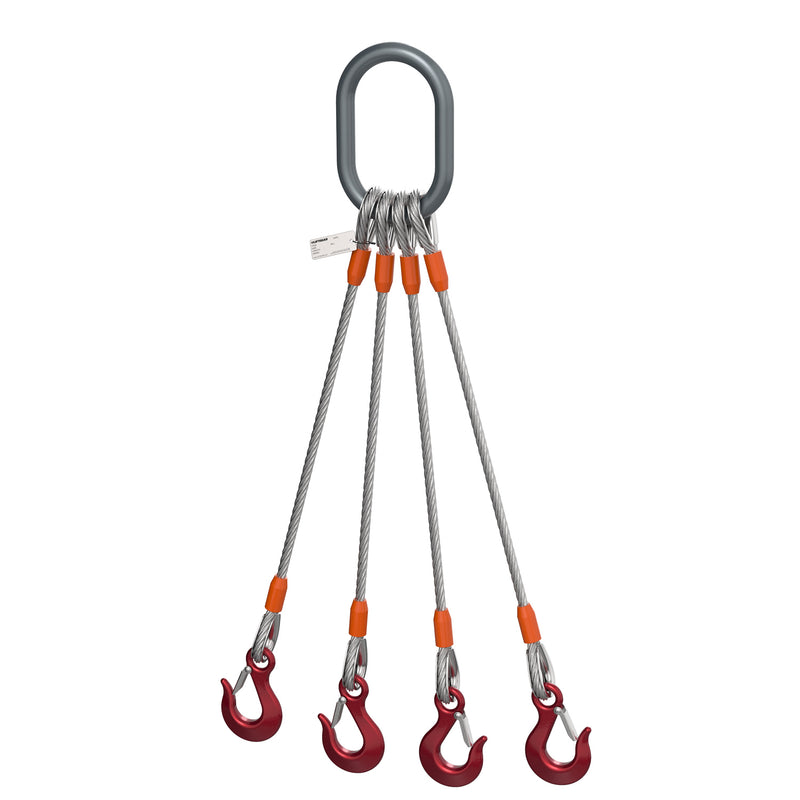

14 Ton Four Leg Wire Rope Sling with Sling Hooks - 5/8 Inch - T094
SKU: 210-T094-B02K
$345.58
View Details
Order Sheet
| SKU | Length | Price | Qty | |
|---|---|---|---|---|
| 210-T094-B02K | 2 ft | $345.58 |
|
|
| 210-T094-B04K | 4 ft | $349.13 |
|
|
| 210-T094-B05K | 5 ft | $350.90 |
|
|
| 210-T094-B06K | 6 ft | $352.68 |
|
|
| 210-T094-B08K | 8 ft | $356.23 |
|
|
| 210-T092BK-10 | 10 ft | $359.78 |
|
|
| 210-T092BK-12 | 12 ft | $363.33 |
|
|
| 210-T092BK-14 | 14 ft | $366.88 |
|
|
| 210-T092BK-15 | 15 ft | $368.65 |
|
|
| 210-T092BK-16 | 16 ft | $370.43 |
|
|
| 210-T092BK-18 | 18 ft | $373.98 |
|
|
| 210-T092BK-20 | 20 ft | $377.53 |
|
210-T094-B02K
$345.58
210-T094-B04K
$349.13
210-T094-B05K
$350.90
210-T094-B06K
$352.68
210-T094-B08K
$356.23
210-T092BK-10
$359.78
210-T092BK-12
$363.33
210-T092BK-14
$366.88
210-T092BK-15
$368.65
210-T092BK-16
$370.43
210-T092BK-18
$373.98
210-T092BK-20
$377.53
Four Leg Wire Rope Sling - with Hoist Hooks
Liftgear Four Leg Wire Rope Bridles are for the everyday general purpose material handling, crane rigging and overhead lifting applications. Perfect for big construction projects and around the garage for the occasional lift. Available from 3/8" (1.7 TON WLL) to 1" (17 TON WLL)
Specs: Type 9 - Hoist Hook with Latch Bottom Ends of each leg
Wire Rope Finish: Bright Finish (Galvanized available upon Request)
Splice: Mechanical
Compliance: Liftgear Wire Rope Slings are serialized and Tagged with Built in RFID Technology for safe Asset Management
Safety Factor: 5:1
Country of Origin: Assembled in Houston, TX
| Dia. (in) | Working Load Limit (Tons) | Master Link Dia. (in) | Alloy Hook WLL (Tons) | ||
|---|---|---|---|---|---|
| 60° | 45° | 30° | |||
| 1/4 | 2.2 | 1.8 | 1.3 | 1/2 | 1 |
| 5/16 | 3.5 | 2.8 | 2 | 3/4 | 1 |
| 3/8 | 5 | 4.1 | 2.9 | 3/4 | 1-1/2 |
| 7/16 | 6.7 | 5.5 | 3.9 | 7/8 | 2 |
| 1/2 | 8.8 | 7.1 | 5.1 | 1 | 3 |
| 9/16 | 11 | 9 | 6.4 | 1 | 5 |
| 5/8 | 14 | 11 | 7.8 | 1-1/4 | 5 |
| 3/4 | 19 | 16 | 11 | 1-1/2 | 7 |
| 7/8 | 26 | 21 | 15 | 1-3/4 | 11 |
| 1 | 34 | 28 | 20 | 2 | 11 |
| 1-1/8 | 42 | 34 | 24 | 2-1/4 | 15 |
| 1-1/4 | 51 | 42 | 30 | 2-1/2 | 15 |
| 1-3/8 | 62 | 50 | 36 | 2-3/4 | 22 |
| 1-1/2 | 73 | 60 | 42 | 3-1/2 | 22 |
*Never Exceed Working Load Limits. Always follow your domestic safety regulations
