Working Load Limit 1 TON
Grade 6
Factor 6:1

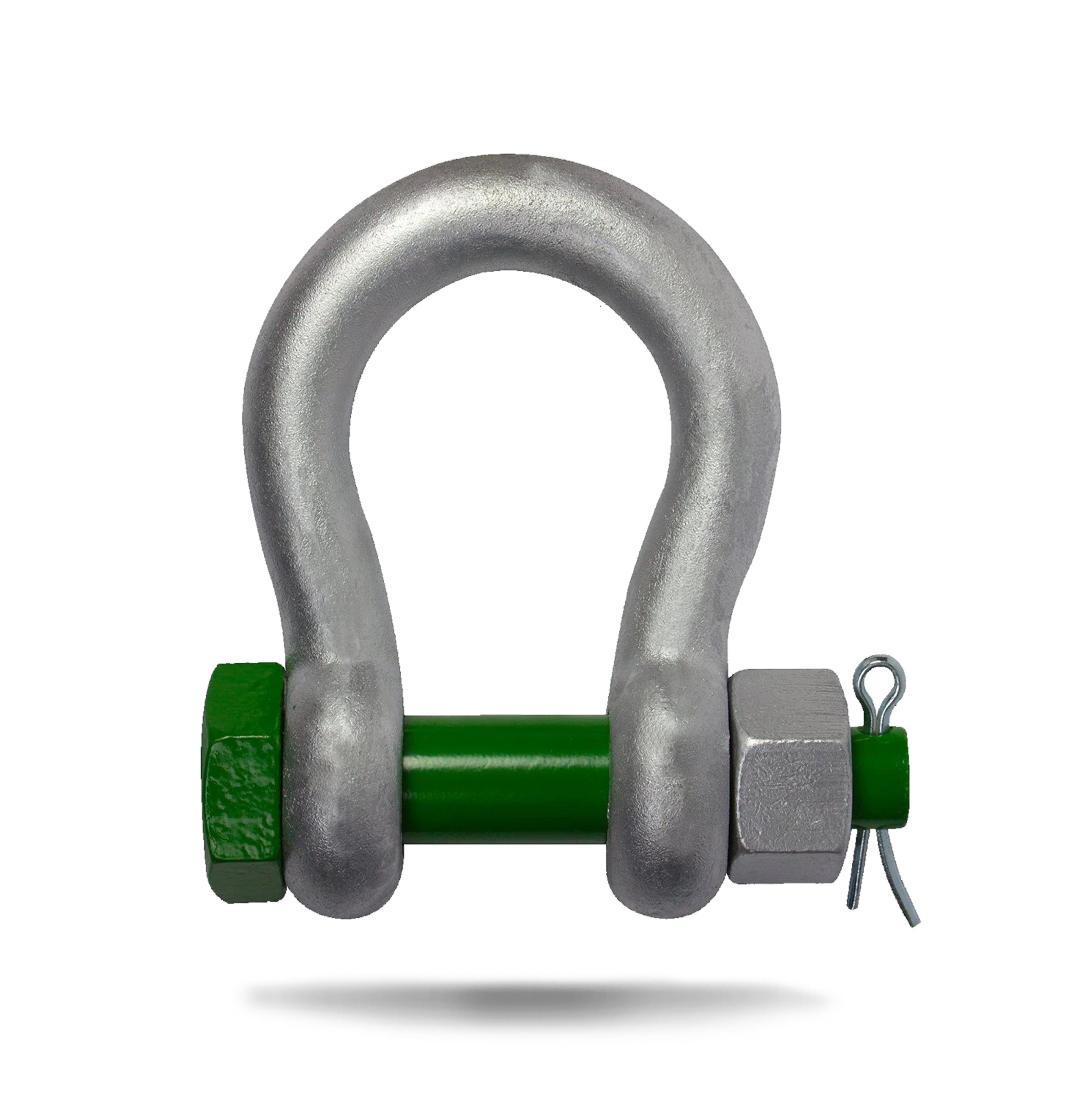

The Green Pin® Bow Shackle BN is a standard bow shackle with a safety bolt and nut, used in lifting operations and static systems as a removable link to connect wire rope, chain, and other fittings. The double safety design — split pin and safety bolt — prevents accidental unscrewing of the pin, making it the preferred choice for sustained lifts and applications where pin rotation is a risk. Hot dipped galvanized for long-term durability. Suitable for both one-leg and multi-leg systems.
- Grade 6 high tensile steel — quenched & tempered
- Double safety — safety bolt & split pin prevents accidental unscrewing
- Preferred for sustained lifts and overhead applications
- Suitable for one-leg and multi-leg systems
- Hot dipped galvanized finish
- Conforms to DNV GL, ABS, CE and wide range of class certifications
- Available 0.5 ton up to 85 ton
TypeBOW SHACKLE — SAFETY BOLT & NUT
MaterialGRADE 6 HIGH TENSILE STEEL, Q&T
FinishHOT DIPPED GALVANIZED
SafetyDOUBLE — SAFETY BOLT & SPLIT PIN
Design Factor6 : 1 (MBL = 6 × WLL)
Temp. Range-40°C UP TO +200°C
StandardEN 13889 / ASME B30.26 / US FED SPEC RR-C-271
CertificationsDNV GL / ABS / CE / 3.1 MTCa
Product CodeG-4163
Working Load Limits by Size
| Article Code | Size (in) | WLL (ton) | Weight (lb) |
|---|---|---|---|
| GPGHBB06BN | 1/4 | 0.5 | 0.13 |
| GPGHBB08BN | 5/16 | 0.75 | 0.24 |
| GPGHBB10BN | 3/8 | 1 | 0.33 |
| GPGHBB11BN | 7/16 | 1.5 | 0.46 |
| GPGHBB13BN | 1/2 | 2 | 0.88 |
| GPGHBB16BN | 5/8 | 3.25 | 1.65 |
| GPGHBB19BN | 3/4 | 4.75 | 2.87 |
| GPGHBB22BN | 7/8 | 6.5 | 4.63 |
| GPGHBB25BN | 1" | 8.5 | 6.83 |
| GPGHBB28BN | 1-1/8 | 9.5 | 9.26 |
| GPGHBB32BN | 1-1/4 | 12 | 13.45 |
| GPGHBB35BN | 1-3/8 | 13.5 | 17.09 |
| GPGHBB38BN | 1-1/2 | 17 | 23.37 |
| GPGHBB44BN | 1-3/4 | 25 | 41.45 |
| GPGHBB50BN | 2" | 35 | 68.34 |
| GPGHBB57BN | 2-1/4 | 42 | 99.87 |
| GPGHBB63BN | 2-1/2 | 55 | 143.96 |
| GPGHBB70BN | 2-3/4 | 85 | 209.44 |
⚠
Never exceed the rated Working Load Limit. Always follow applicable rigging standards and inspect before every use. Remove from service if deformed, worn, or damaged.
EN 13889 │ ASME B30.26 │ DNV GL │ ABS │ CE Green Pin® Van Beest — Netherlands
