Order Sheet
| SKU | Length | Price | Qty | |
|---|---|---|---|---|
| 410-T024-B05K | 5' | $1,537.46 |
|
|
| 410-T024-B06K | 6' | $1,553.59 |
|
|
| 410-T024-B07K | 7' | $1,569.72 |
|
|
| 410-T024-B08K | 8' | $1,585.85 |
|
|
| 410-T024-B10K | 10' | $1,618.11 |
|
|
| 410-T024-B12K | 12' | $1,650.37 |
|
|
| 410-T024-B15K | 15' | $1,698.76 |
|
|
| 410-T024-B20K | 20' | $1,779.41 |
|
410-T024-B05K
$1,537.46
410-T024-B06K
$1,553.59
410-T024-B07K
$1,569.72
410-T024-B08K
$1,585.85
410-T024-B10K
$1,618.11
410-T024-B12K
$1,650.37
410-T024-B15K
$1,698.76
410-T024-B20K
$1,779.41
Working Load Limit
34 T @ 60°
Dia
1 in
Legs
4
Fit
Hoist Hook

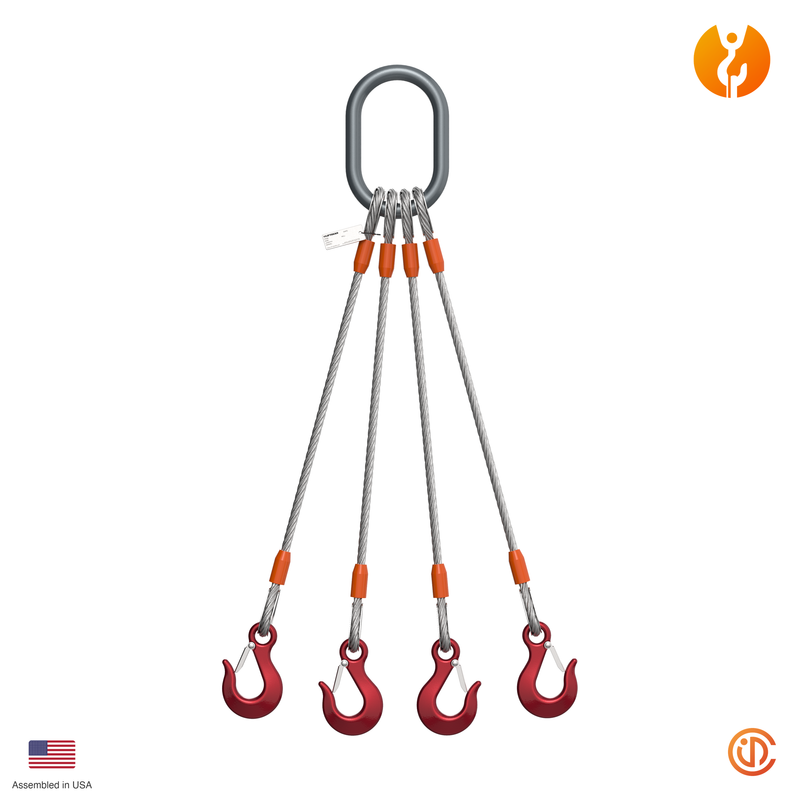

Four leg wire rope sling with forged alloy steel hoist hooks and mechanically spliced flemish eye terminations. 1” diameter, 6×36WS Class IWRC bright wire rope construction, EIPS grade. Proof tested to 2× rated capacity with serialized tag and test certificate. Galvanized finish available on request.
Reach
5 – 20 FT
Top
OBLONG MASTER LINK
Bottom
HOIST HOOKS (LATCH)
Termination
FLEMISH EYE SPLICE
Core
INDEPENDENT (IWRC)
Finish
BRIGHT (GALV. AVAIL.)
Grade
EIPS
Safety Factor
5 : 1
Proof Test
2× WLL
Weight
~1.85 LB/FT (ROPE)
Working Load Limits — Four Leg @ 60°
| Dia. | WLL (Tons) |
|---|---|
| 3/8” | 5 |
| 1/2” | 8.8 |
| 5/8” | 14 |
| 3/4” | 19 |
| 7/8” | 26 |
| 1” | 34 |
⚠
Never exceed the rated Working Load Limit. Sling capacity decreases at lower angles — verify the WLL for your specific hitch and angle before each lift. Inspect before every use per ASME B30.9.
Need a custom length, fitting, or configuration?
Contact Sales →
ASME B30.9 │ OSHA 29 CFR 1926.251 │ WSTDA-WRS-1
Liftgear
Assembled in Houston, Texas
Cert lookup → certfid.io/lookup
