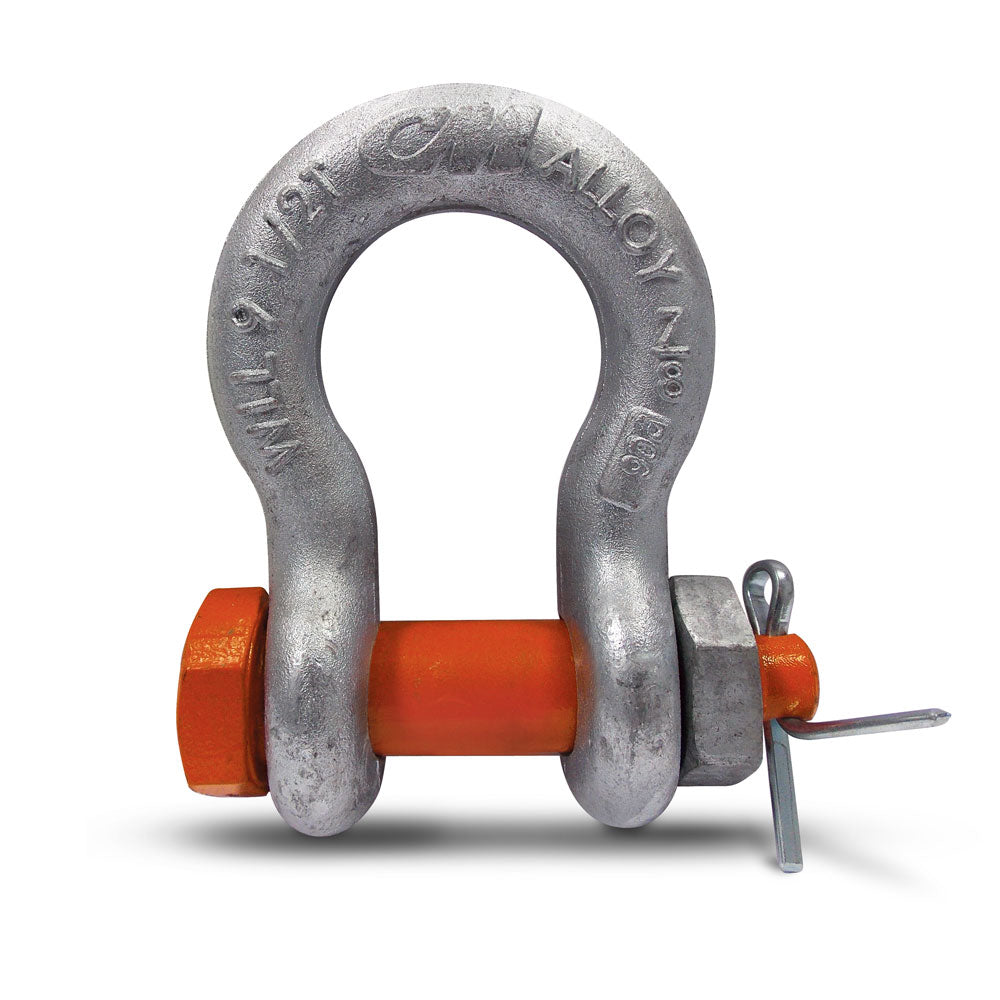

5/8" CM Super Strong Bolt Type Anchor Shackles 3-1/4t - MC851G

$37.31 $0.00 ( / )

CM Carbon Anchor Shackles Galvanized Bolt, Nut & Cotter

Bolt & Nut Anchor/Chain Shackles provide the most secure pin arrangement and will resist axial loading and torsional loading, but should only be used in applications where shackle is infrequently or never removed.

  • These shackles meet requirements of Federal Specification RR-C-271D Amendment 1
  • All shackle pins are forged from alloy steel, heat treated and tempered to give greater strength
  • All shackles are marked with size (inches and millimeters) and working load limit in tons
  • Ultimate strength equals 5 times working load limit
  • All bolt, nut & cotter shackles have thread protected ends
  • Galvanized per ASTM A153
  • Standard industry tolerances apply
  • Design factor 5:1

Specifications

Product Type Shackles
Brand CM Rigging
Type Anchor
Finish Galvanized
Pin Type Bolt, Nut and Cotter
Working Load Limit 3-1/4 Ton
Material Carbon
Product Group Rigging
Size 5/8"
STANDARD PRODUCT SELECTOR Y


CM Carbon Anchor Shackles Galvanized Bolt, Nut & Cotter

Bolt & Nut Anchor/Chain Shackles provide the most secure pin arrangement and will resist axial loading and torsional loading, but should only be used in applications where shackle is infrequently or never removed.

  • These shackles meet requirements of Federal Specification RR-C-271D Amendment 1
  • All shackle pins are forged from alloy steel, heat treated and tempered to give greater strength
  • All shackles are marked with size (inches and millimeters) and working load limit in tons
  • Ultimate strength equals 5 times working load limit
  • All bolt, nut & cotter shackles have thread protected ends
  • Galvanized per ASTM A153
  • Standard industry tolerances apply
  • Design factor 5:1

Specifications

Product Type Shackles
Brand CM Rigging
Type Anchor
Finish Galvanized
Pin Type Bolt, Nut and Cotter
Working Load Limit 3-1/4 Ton
Material Carbon
Product Group Rigging
Size 5/8"
STANDARD PRODUCT SELECTOR Y
