Order Sheet
| SKU | Capacity in US Tons | Chain Lift | Price | Qty | |
|---|---|---|---|---|---|
| X5SL02250-05S | 3/4T to 1-1/8T | 5 FT | $566.82 |
|
|
| X5SL02250-10S | 3/4T to 1-1/8T | 10 FT | $633.82 |
|
|
| X5SL02250-15S | 3/4T to 1-1/8T | 15 FT | $700.82 |
|
|
| X5SL02250-20S | 3/4T to 1-1/8T | 20 FT | $767.82 |
|
|
| X5SL03528-05S | 1-1/2T to 1-3/4T | 5 FT | $694.12 |
|
|
| X5SL03528-10S | 1-1/2T to 1-3/4T | 10 FT | $781.22 |
|
|
| X5SL03528-15S | 1-1/2T to 1-3/4T | 15 FT | $868.32 |
|
|
| X5SL03528-20S | 1-1/2T to 1-3/4T | 20 FT | $955.42 |
|
|
| X5SL07056-05S | 3T to 3-1/2T | 5 FT | $1,157.76 |
|
|
| X5SL07056-10S | 3T to 3-1/2T | 10 FT | $1,285.06 |
|
|
| X5SL07056-15S | 3T to 3-1/2T | 15 FT | $1,411.94 |
|
|
| X5SL07056-20S | 3T to 3-1/2T | 20 FT | $1,539.66 |
|
|
| X5SL14000-05S | 6T to 7T | 5 FT | $1,890.70 |
|
|
| X5SL14000-10S | 6T to 7T | 10 FT | $2,145.34 |
|
|
| X5SL14000-15S | 6T to 7T | 15 FT | $2,399.92 |
|
|
| X5SL14000-20S | 6T to 7T | 20 FT | $2,654.54 |
|
|
| X5SL20000-05S | 9T to 10T | 5 FT | $3,544.30 |
|
|
| X5SL20000-10S | 9T to 10T | 10 FT | $3,926.20 |
|
|
| X5SL20000-15S | 9T to 10T | 15 FT | $4,308.10 |
|
|
| X5SL20000-20S | 9T to 10T | 20 FT | $4,690.00 |
|
X5SL02250-05S
$566.82
X5SL02250-10S
$633.82
X5SL02250-15S
$700.82
X5SL02250-20S
$767.82
X5SL03528-05S
$694.12
X5SL03528-10S
$781.22
X5SL03528-15S
$868.32
X5SL03528-20S
$955.42
X5SL07056-05S
$1,157.76
X5SL07056-10S
$1,285.06
X5SL07056-15S
$1,411.94
X5SL07056-20S
$1,539.66
X5SL14000-05S
$1,890.70
X5SL14000-10S
$2,145.34
X5SL14000-15S
$2,399.92
X5SL14000-20S
$2,654.54
X5SL20000-05S
$3,544.30
X5SL20000-10S
$3,926.20
X5SL20000-15S
$4,308.10
X5SL20000-20S
$4,690.00

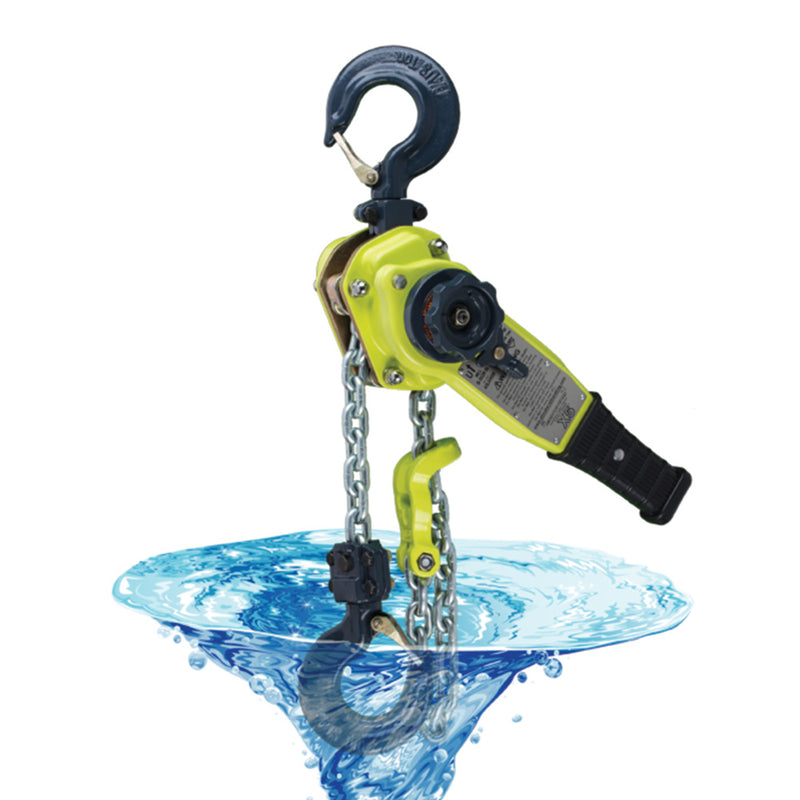

3/4 to 10 US Ton Capacity
Additional Features
- SubSea models for use submerged under water
- Brake is enclosed in a gasket sealed area along with bolted-in stainless dual springs and pawls
- Meets IMCA D028 standard (UK sub-sea lever hoist standard)
- Extensive coatings, finishes and materials to resist corrosion
- Fitted with an adjustable chain stop to meet local codes for use under water
X5 Features
- Brake sets and operates without minimum preload
- 100% inspection of hooks per ASME B30 and easy hook replacement is permitted by bolted hook blocks
- All steel body for durable strength in a smaller size
- Powder coat and plated external l parts to resist corrosion
- Laser etched stainless steel nameplates with required OSHA /ASME B30 warnings, model and stamped serial number
- Long life fused brake friction disc cannot crack, shatter or absorb moisture
- Grade 100 zinc plated load chain made in Japan or EU
- Ambient Temperature range: -40° to +140°F (-40° to +60°C)
- Meets: OSHA, ASME B30.21 and ASME HST-3. In addition the ultimate strength is 5 times Work Load Limit (WLL) meeting structural requirements of ASME HST-3 Appendix A, for use in marine and other applications as specified by US Department of Defense DOD.
- APEX rating: II 3GD c IIB 60ºC X for limited use in Hazardous Environments
- Final assembly and load test in the USA from imported components. Supplied with certificate by serial number
- Open chain guard allows visual inspection and does not trap contamination
