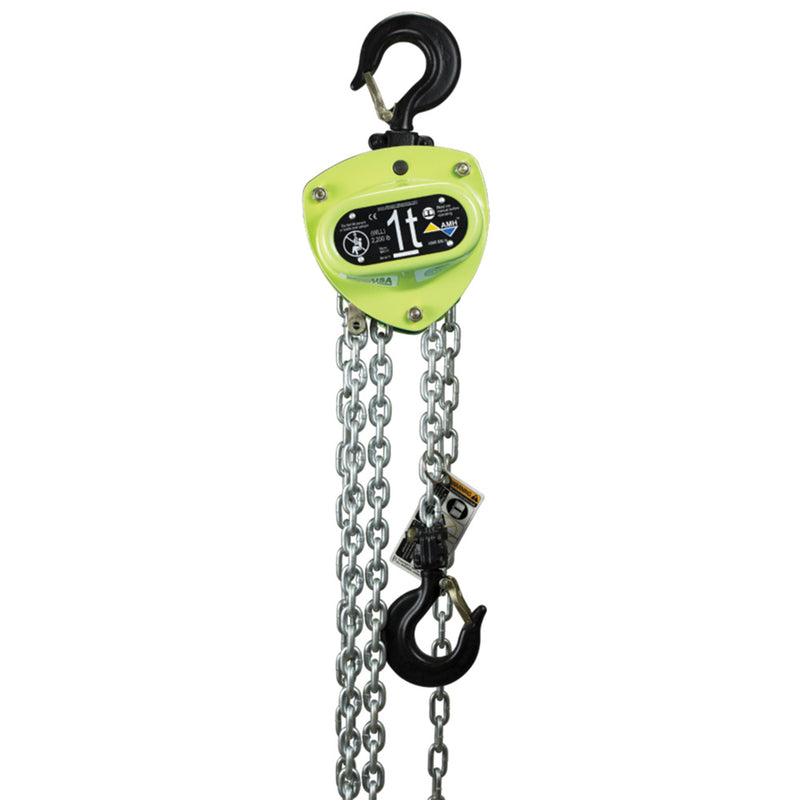

Manual Chain Hoists - MA Series

MA005-10-08U
$215.00 $0.00( / )

½ to 30 Metric tonne capacity

Features

  • Increased efficiency by additional pinion shaft bearing and close tolerances
  • Hook blocks are bolted, allowing complete hook inspection
  • Lightweight and durable all steel construction with powder coated finish and plated frame components to resist corrosion
  • Premium USA-Made Grade 80 Zinc plated alloy load chain
  • Hand chain opening is formed with a radius for smooth operation
  • Sealed ball bearings on the chain wheel maximize efficiency and serviceability
  • Self-adjusting double pawl disc type mechanical load brake insures positive load control
  • Double roller guide insures load chain tracking
  • Optional Overload Protection is a one directional clutch that will only slip in the lift direction
  • Meets: ASME/ANSl B30.16, OSHA, NASA-STD-8719.9
  • ATEX rated II 3 GD c IIB 54º C X for limited use in Hazardous Environments
  • 1/2t
  • 1t
  • 2t
  • 3t
  • 5t
  • 8T US
  • 10t
  • 15t
  • 20t
  • 25t
  • 30t
  • 10 FT
  • 15 FT
  • 20 FT
Agregar a Favoritos
Comparación
Ahora mismo hay +43 personas viendo este producto.

½ to 30 Metric tonne capacity

Features

  • Increased efficiency by additional pinion shaft bearing and close tolerances
  • Hook blocks are bolted, allowing complete hook inspection
  • Lightweight and durable all steel construction with powder coated finish and plated frame components to resist corrosion
  • Premium USA-Made Grade 80 Zinc plated alloy load chain
  • Hand chain opening is formed with a radius for smooth operation
  • Sealed ball bearings on the chain wheel maximize efficiency and serviceability
  • Self-adjusting double pawl disc type mechanical load brake insures positive load control
  • Double roller guide insures load chain tracking
  • Optional Overload Protection is a one directional clutch that will only slip in the lift direction
  • Meets: ASME/ANSl B30.16, OSHA, NASA-STD-8719.9
  • ATEX rated II 3 GD c IIB 54º C X for limited use in Hazardous Environments
Tipo:

Hoists, Cranes & Trolleys

Vendedor:

AMH

Capacity in Tonnes:

1/2t, 1t, 2t, 3t, 5t, 8T US, 10t, 15t, 20t, 25t, 30t

Chain Lift:

10 FT, 15 FT, 20 FT

SKU:

MA005-10-08U

Peso:

13.5 lb
