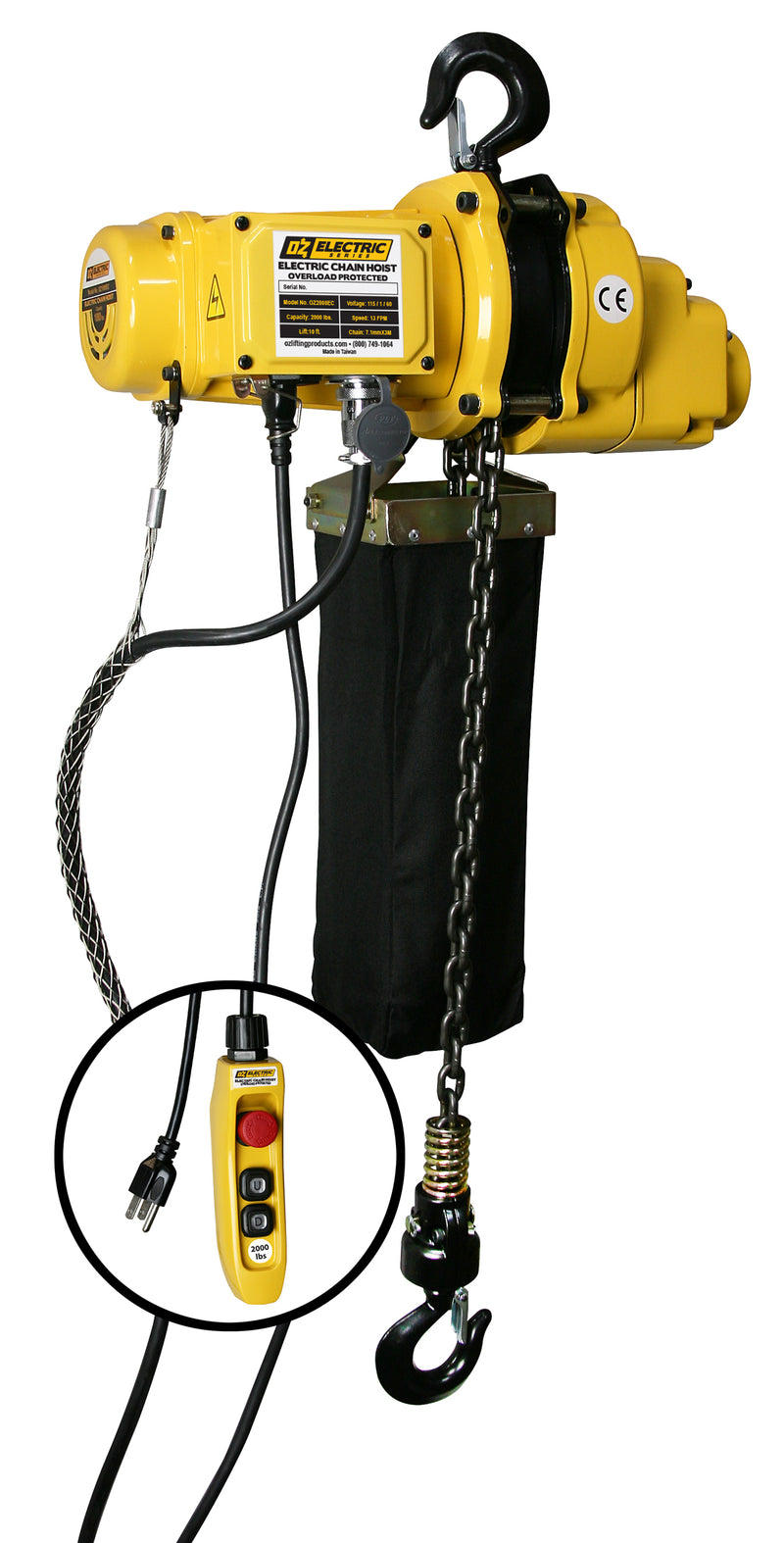

OZ Lifting 2000lbs Electric Chain Hoist with 10 ft of lift – OZ2000EC
OZ Lifting Products

OZ Lifting 2000lbs Electric Chain Hoist with 10 ft of lift – OZ2000EC

SKU: OZ2000EC
$2,630.70
View Details
Qty:
Your rigging equipment is now smart, with CertFID.
Learn More
Capacity Range 2,000 LB
Duty Class H3
Power 115V
OZ LIFTING — ELECTRIC CHAIN HOIST

The OZ Lifting Electric Chain Hoist is a lightweight, cast aluminum alloy hoist built for workstation and industrial lifting applications. Available in 500, 1,000, 2,000, and 4,000 lb capacities with lift heights from 10 to 30 ft. Operates on standard 115V single-phase power — no special wiring required. Select models available with wireless remote in addition to the standard IP64 wired pendant. Each hoist ships with a vinyl chain bag and individual test certificate.

  • Cast aluminum alloy body — lightweight and compact
  • Precision-machined, heat-treated gears with oil bath lubrication for quiet, smooth operation
  • Dual braking system — mechanical + regenerative for instant stopping
  • Overload protection via high-performance friction clutch
  • Grade 80 case-hardened alloy steel chain
  • Forged carbon steel hooks — bottom hook swivels 360° to prevent chain twist
  • Load sheave reduces vibration and distributes load evenly
  • IP64-rated ergonomic pendant with emergency stop — wireless option available
  • H3 duty class — 30% duty cycle
  • Vinyl chain bag and individual test certificate included



Capacity Range500 LB — 4,000 LB
Lift Heights10 FT · 15 FT · 20 FT · 30 FT
Power Supply115V / 1 PHASE / 60 HZ
Duty ClassH3 — 30% DUTY CYCLE
BodyCAST ALUMINUM ALLOY — POWDER COAT FINISH
ChainGRADE 80 CASE-HARDENED ALLOY STEEL
HooksFORGED CARBON STEEL · BOTTOM HOOK 360° SWIVEL
BrakingDUAL — MECHANICAL + REGENERATIVE
Overload ProtectionFRICTION CLUTCH — INTEGRATED
Pendant ControlIP64 WIRED — EMERGENCY STOP INCLUDED
Wireless OptionAVAILABLE ON SELECT MODELS (UP TO 250 FT RANGE)
Power Cord15 FT
IncludesVINYL CHAIN BAG · TEST CERTIFICATE · SERIAL NUMBER

Model Lineup

Model Capacity Lift Speed Motor Control
OZ500EC 500 lb 12.5 FPM 180W Wired Pendant
OZ1000EC 1,000 lb 20 FPM 1,400W Wired Pendant
OZ1000ECW 1,000 lb 20 FPM 1,400W Wireless
OZ2000EC 2,000 lb 13 FPM 1,400W Wired Pendant
OZ2000ECW 2,000 lb 13 FPM 1,400W Wireless
OZ4000EC 4,000 lb 6.5 FPM 1,800W Wired Pendant
OZ4000ECW 4,000 lb 6.5 FPM 1,800W Wireless
⚠

Never exceed the rated capacity for your specific model. Inspect hook latches, chain, and suspension point before every lift. Do not use if chain is twisted, kinked, stretched, or shows wear. Ensure the suspension point is rated for the applied load. This hoist is H3 duty class — do not exceed 30% duty cycle. Disconnect power before performing any maintenance or inspection.

H3 DUTY CLASS · 30% DUTY CYCLE · CE CERTIFIED · 115V / 1PH / 60HZ OZ Lifting Electric Chain Hoist
