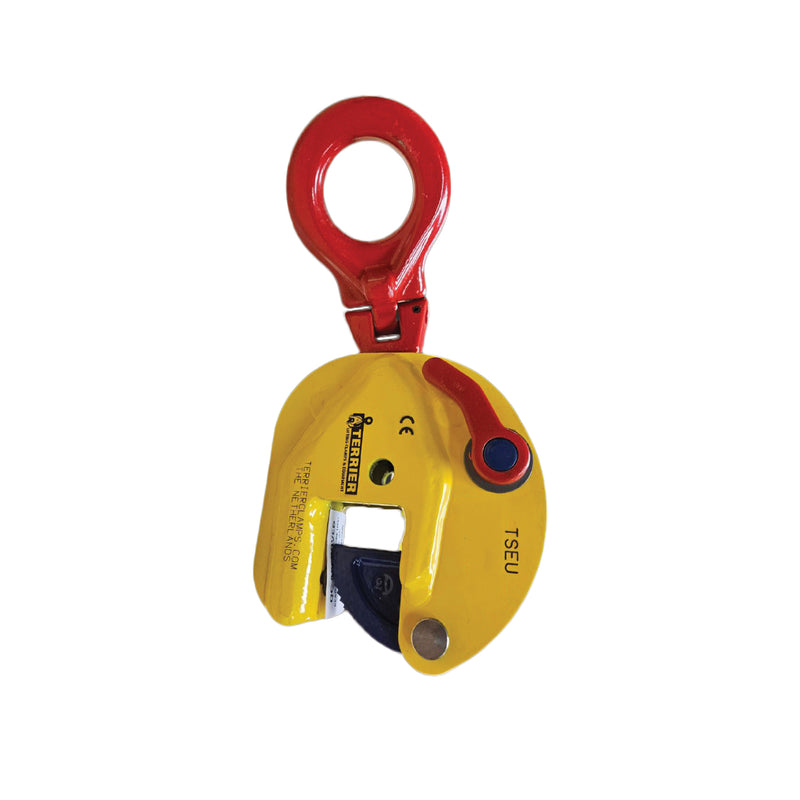

Terrier Universal Plate Clamp - TSEU
The Terrier TSEU Universal Lifting Plate Clamps are engineered for versatile and secure lifting of steel plates and other flat materials. With adjustable jaws and a robust design, they ensure a strong grip and safe handling in various applications. Ideal for industrial and construction use, these clamps provide reliable performance and ease of operation. The articulated lifting shackle guarantees a pressure grip in every position, even when side loading up to 90 degrees. Note a lower load capacity when lifting at an angle higher than 45 degrees. Please check WLL illustrations below.
- Jaw openings available from: 0 to 5.90 in.
- TSEU / STSU types are supplied with enlarged jaw opening
- Working load limit (WLL) 1,650 - 66,000 lbs (Higher WLL available upon request)
- Min. WLL is 10% of max. WLL
- Clamp is locked in closed as well as open position
- Tough quality heavy-duty welded shell body
- Maintenance-friendly. Easy to exchange parts are available upon request
Note: Surface hardness of the material lifted must not exceed 37 HRC/345 Hb
| Tipo: | |
|---|---|
| Vendedor: | |
| Capacity: |
1 Ton, 2 Ton, 3 Ton, 4.5 Ton, 6 Ton, 7.5 Ton |
| SKU: |
865800 |
| Peso: |
9.0 lb |
