TOS TRIPLE LEG ALLOY CHAIN SLING GRADE 100 - DOMESTIC
Liftgear

TOS TRIPLE LEG ALLOY CHAIN SLING GRADE 100 - DOMESTIC

SKU: 180-TOS-04
$261.53
View Details
Qty:
Your rigging equipment is now smart, with CertFID.
Learn More

Order Sheet

SKU Size Length Price Qty
180-TOS-04 9/32 in 4FT WLL: 11,200 LBS $261.53
180-TOS-06 9/32 in 6FT WLL: 11,200 LBS $283.80
180-TOS-08 9/32 in 8FT WLL: 11,200 LBS $306.07
180-TOS-10 9/32 in 10FT WLL: 11,200 LBS $328.33
180-TOS-12 9/32 in 12FT WLL: 11,200 LBS $350.60
180-TOS-14 9/32 in 14FT WLL: 11,200 LBS $372.87
180-TOS-16 9/32 in 16FT WLL: 11,200 LBS $395.13
180-TOS-18 9/32 in 18FT WLL: 11,200 LBS $417.40
180-TOS-20 9/32 in 20FT WLL: 11,200 LBS $439.67
210-TOS-04 3/8 in 4FT WLL: 22,800 LBS $369.48
210-TOS-06 3/8 in 6FT WLL: 22,800 LBS $404.36
210-TOS-08 3/8 in 8FT WLL: 22,800 LBS $438.76
210-TOS-10 3/8 in 10FT WLL: 22,800 LBS $473.16
210-TOS-12 3/8 in 12FT WLL: 22,800 LBS $507.56
210-TOS-14 3/8 in 14FT WLL: 22,800 LBS $541.96
210-TOS-16 3/8 in 16FT WLL: 22,800 LBS $576.36
210-TOS-18 3/8 in 18FT WLL: 22,800 LBS $610.76
210-TOS-20 3/8 in 20FT WLL: 22,800 LBS $645.16
250-TOS-04 1/2 in 4FT WLL: 39,000 LBS $601.27
250-TOS-06 1/2 in 6FT WLL: 39,000 LBS $659.00
250-TOS-08 1/2 in 8FT WLL: 39,000 LBS $716.73
250-TOS-10 1/2 in 10FT WLL: 39,000 LBS $774.47
250-TOS-12 1/2 in 12FT WLL: 39,000 LBS $832.20
250-TOS-14 1/2 in 14FT WLL: 39,000 LBS $889.93
250-TOS-16 1/2 in 16FT WLL: 39,000 LBS $947.67
250-TOS-18 1/2 in 18FT WLL: 39,000 LBS $1,005.40
250-TOS-20 1/2 in 20FT WLL: 39,000 LBS $1,063.13
290-TOS-04 5/8 in 4FT WLL: 58,700 LBS $924.27
290-TOS-06 5/8 in 6FT WLL: 58,700 LBS $1,008.93
290-TOS-08 5/8 in 8FT WLL: 58,700 LBS $1,093.60
290-TOS-10 5/8 in 10FT WLL: 58,700 LBS $1,178.27
290-TOS-12 5/8 in 12FT WLL: 58,700 LBS $1,262.93
290-TOS-14 5/8 in 14FT WLL: 58,700 LBS $1,347.60
290-TOS-16 5/8 in 16FT WLL: 58,700 LBS $1,432.27
290-TOS-18 5/8 in 18FT WLL: 58,700 LBS $1,516.93
290-TOS-20 5/8 in 20FT WLL: 58,700 LBS $1,601.60
180-TOS-04 $261.53
Size: 9/32 in Length: 4FT WLL: 11,200 LBS
180-TOS-06 $283.80
Size: 9/32 in Length: 6FT WLL: 11,200 LBS
180-TOS-08 $306.07
Size: 9/32 in Length: 8FT WLL: 11,200 LBS
180-TOS-10 $328.33
Size: 9/32 in Length: 10FT WLL: 11,200 LBS
180-TOS-12 $350.60
Size: 9/32 in Length: 12FT WLL: 11,200 LBS
180-TOS-14 $372.87
Size: 9/32 in Length: 14FT WLL: 11,200 LBS
180-TOS-16 $395.13
Size: 9/32 in Length: 16FT WLL: 11,200 LBS
180-TOS-18 $417.40
Size: 9/32 in Length: 18FT WLL: 11,200 LBS
180-TOS-20 $439.67
Size: 9/32 in Length: 20FT WLL: 11,200 LBS
210-TOS-04 $369.48
Size: 3/8 in Length: 4FT WLL: 22,800 LBS
210-TOS-06 $404.36
Size: 3/8 in Length: 6FT WLL: 22,800 LBS
210-TOS-08 $438.76
Size: 3/8 in Length: 8FT WLL: 22,800 LBS
210-TOS-10 $473.16
Size: 3/8 in Length: 10FT WLL: 22,800 LBS
210-TOS-12 $507.56
Size: 3/8 in Length: 12FT WLL: 22,800 LBS
210-TOS-14 $541.96
Size: 3/8 in Length: 14FT WLL: 22,800 LBS
210-TOS-16 $576.36
Size: 3/8 in Length: 16FT WLL: 22,800 LBS
210-TOS-18 $610.76
Size: 3/8 in Length: 18FT WLL: 22,800 LBS
210-TOS-20 $645.16
Size: 3/8 in Length: 20FT WLL: 22,800 LBS
250-TOS-04 $601.27
Size: 1/2 in Length: 4FT WLL: 39,000 LBS
250-TOS-06 $659.00
Size: 1/2 in Length: 6FT WLL: 39,000 LBS
250-TOS-08 $716.73
Size: 1/2 in Length: 8FT WLL: 39,000 LBS
250-TOS-10 $774.47
Size: 1/2 in Length: 10FT WLL: 39,000 LBS
250-TOS-12 $832.20
Size: 1/2 in Length: 12FT WLL: 39,000 LBS
250-TOS-14 $889.93
Size: 1/2 in Length: 14FT WLL: 39,000 LBS
250-TOS-16 $947.67
Size: 1/2 in Length: 16FT WLL: 39,000 LBS
250-TOS-18 $1,005.40
Size: 1/2 in Length: 18FT WLL: 39,000 LBS
250-TOS-20 $1,063.13
Size: 1/2 in Length: 20FT WLL: 39,000 LBS
290-TOS-04 $924.27
Size: 5/8 in Length: 4FT WLL: 58,700 LBS
290-TOS-06 $1,008.93
Size: 5/8 in Length: 6FT WLL: 58,700 LBS
290-TOS-08 $1,093.60
Size: 5/8 in Length: 8FT WLL: 58,700 LBS
290-TOS-10 $1,178.27
Size: 5/8 in Length: 10FT WLL: 58,700 LBS
290-TOS-12 $1,262.93
Size: 5/8 in Length: 12FT WLL: 58,700 LBS
290-TOS-14 $1,347.60
Size: 5/8 in Length: 14FT WLL: 58,700 LBS
290-TOS-16 $1,432.27
Size: 5/8 in Length: 16FT WLL: 58,700 LBS
290-TOS-18 $1,516.93
Size: 5/8 in Length: 18FT WLL: 58,700 LBS
290-TOS-20 $1,601.60
Size: 5/8 in Length: 20FT WLL: 58,700 LBS
0 items $0.00

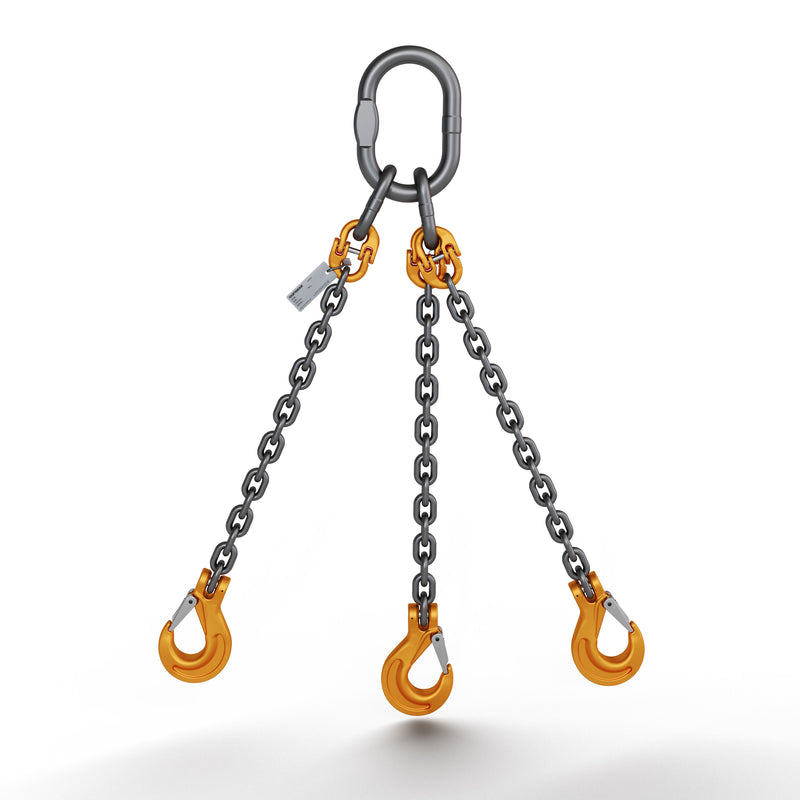

Triple Leg alloy chain sling with bub-Assembly Link on top and sling hooks at the bottom ends. Chain Sizes available in 9/32",3/8",1/2" and 5/8". Assembled with Premium Made in USA Grade 100 Alloy Steel Chain.

Features:

  • Made in USA Chain 🇺🇸
  • Metal tag with size, reach, capacity, and individual serial number
  • OSHA Approved for overhead lifting
  • 4:1 Design Factor

Grade 100 Chain Sling Specifications

Design Factor Single Leg Double Leg Triple and Quad Leg
4:1
Angle 90° 60° 45° 30° 60° 45° 30°
Chain Size Working Load Limit (lbs)
in mm
7/32" 6 3,000 5,100 4,200 3,000 7,800 6,300 4,500
9/32" 7 4,300 7,400 6,100 4,300 11,200 9,100 6,400
5/16" 8 5,700 9,900 8,100 5,700 14,800 12,100 8,500
3/8" 10 8,800 15,200 12,400 8,800 22,900 18,700 13,200
1/2" 13 15,000 26,000 21,200 15,000 39,000 31,800 22,500
5/8" 16 22,600 39,100 32,000 22,600 58,700 47,900 33,900
3/4" 20 35,300 61,100 49,900 35,300 91,700 74,900 53,000
7/8" 22 42,700 74,000 60,400 42,700 110,900 90,600 64,000
1" 26 59,700 103,400 84,400 59,700 155,100 126,600 89,550
1-1/4" 32 90,400 156,600 127,800 90,400 234,900 191,700 135,600


*Never Exceed Working Load Limits. Always follow your domestic safety regulations
