Order Sheet
| SKU | Size | Price | Qty | |
|---|---|---|---|---|
| CRGX06 | 7/32"-1/4" Chain — 3,000 lbs WLL | $0.00 |
|
|
| CRGX08 | 9/32"-5/16" Chain — 5,700 lbs WLL | $0.00 |
|
|
| CRGX10 | 3/8" Chain — 8,800 lbs WLL | $0.00 |
|
|
| CRGX13 | 1/2" Chain — 15,000 lbs WLL | $0.00 |
|
|
| CRGX16 | 5/8" Chain — 22,600 lbs WLL | $0.00 |
|
CRGX06
$0.00
CRGX08
$0.00
CRGX10
$0.00
CRGX13
$0.00
CRGX16
$0.00
Working Load Limit15 TON
Chain7/32"–5/8"
LatchSPRING
Factor4:1

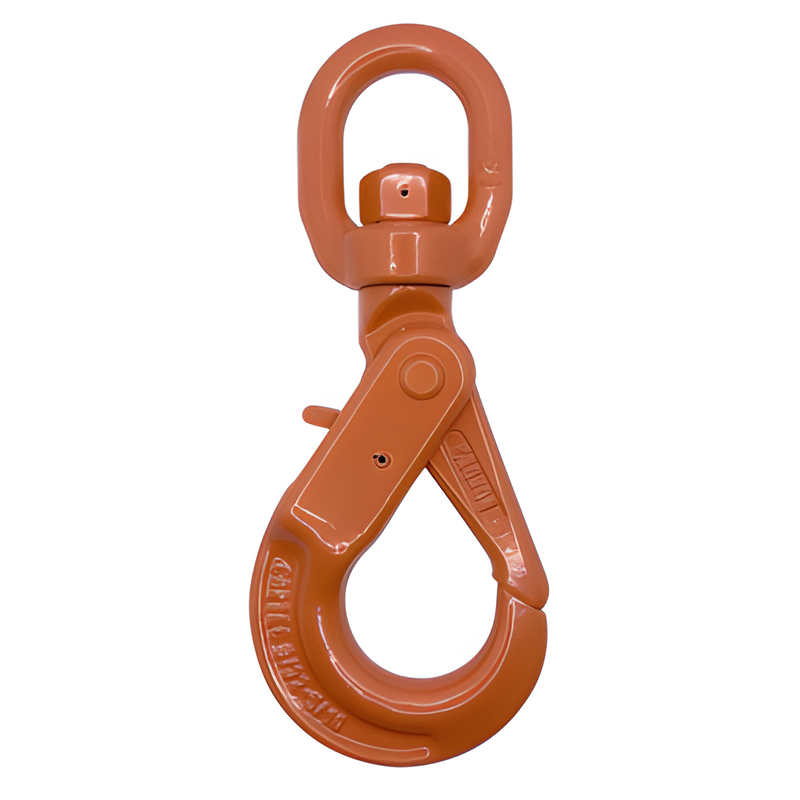

CARTEC CRGX swivel self-locking bottom hook, Grade 100 alloy steel with powder-coated finish. Self-locking trigger mechanism for secure load attachment with swivel design to prevent chain twisting. Heat-indicating powder coat changes color above 390 degrees F as overheating indicator.
WLL Range3,000 – 22,600 LBS
MaterialGRADE 100 ALLOY STEEL, Q&T
FinishPOWDER COATED, HEAT INDICATING
Design Factor4 : 1
Proof Test2× WLL
StandardASME B30.10
Weight Range1.3 – 15 LBS
Working Load Limits
| CHAIN SIZE | WLL (TON) | WEIGHT (LBS) |
|---|---|---|
| 7/32"–1/4" | 1.5 | 1.32 |
| 9/32"–5/16" | 2.85 | 2.43 |
| 3/8" | 4.4 | 4.41 |
| 1/2" | 7.5 | 8.82 |
| 5/8" | 11.3 | 14.99 |
⚠
Never exceed the rated Working Load Limit. Inspect before every use. Remove from service if damaged, deformed, or worn beyond manufacturer tolerances.
