Order Sheet
| SKU | WLL | Beam Flange | Price | Qty | |
|---|---|---|---|---|---|
| BC-0100 | 1 t | 2.95" – 8.26" | $140.00 |
|
|
| BC-0200 | 2 t | 2.95" – 8.26" | $156.00 |
|
|
| BC-0300 | 3 t | 2.95" – 12.00" | $255.00 |
|
|
| BC-0500 | 5 t | 2.95" – 12.00" | $348.00 |
|
|
| BC-1000 | 10 t | 4.72" – 13.77" | $751.00 |
|
BC-0100
$140.00
BC-0200
$156.00
BC-0300
$255.00
BC-0500
$348.00
BC-1000
$751.00
Capacity Range1–10 T
Jaw Range2.95" – 13.77"
Mount TypePIN TYPE

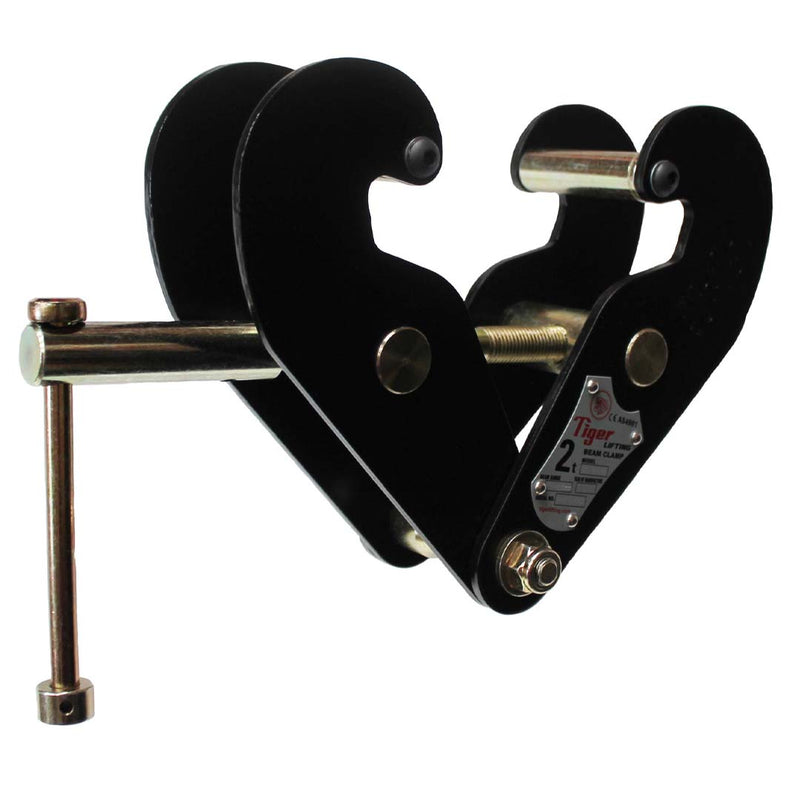

TIGER LIFTING — ADJUSTABLE BEAM CLAMP · BC SERIES · 1 T – 10 T · TAIWAN
The Tiger Adjustable Beam Clamp (BC Series) is a pin-type adjustable beam clamp for attaching hoists, slings, and rigging hardware to the lower flange of an I-beam. Adjustable pin engages standard beam widths and the clamp creates a fixed rigging point for overhead lifting.
- Pin-type adjustable beam clamp — fits standard I-beams
- Forged steel construction with hardened pin
- Capacity range: 1 t – 10 t
- Wide beam flange adjustment range
- Made in Taiwan
SeriesBC SERIES
TypeBEAM CLAMP
Capacity Range1 T — 10 T
Country of OriginTAIWAN
HS Code8431.10.0090
Model Lineup — 5 Variants
| Part Number | WLL | Beam Flange | Ship Weight | LTL |
|---|---|---|---|---|
| BC-0100 | 1 T | 2.95" – 8.26" | 10 LB | — |
| BC-0200 | 2 T | 2.95" – 8.26" | 12 LB | — |
| BC-0300 | 3 T | 2.95" – 12.00" | 22 LB | — |
| BC-0500 | 5 T | 2.95" – 12.00" | 25 LB | — |
| BC-1000 | 10 T | 4.72" – 13.77" | 53 LB | — |
⚠
Verify beam flange thickness and width match the clamp's adjustable range before loading. Never exceed the rated WLL. Inspect jaw faces, locking mechanism, and shackle or eye for wear, deformation, or cracks before every use. Remove from service if jaw teeth are worn, the locking mechanism is damaged, or the rigging attachment shows deformation.
ASME B30.20 · HS 8431.10.0090Tiger LiftingBeam Clamp — Adjustable Beam Clamp
