Order Sheet
| SKU | Capacity | Price | Qty | |
|---|---|---|---|---|
| BHW-0800-00 | 800 lb | $175.00 |
|
|
| BHW-1200-00 | 1200 lb | $183.00 |
|
|
| BHW-1800-00 | 1800 lb | $282.00 |
|
|
| BHW-2600-00 | 2600 lb | $387.00 |
|
BHW-0800-00
$175.00
BHW-1200-00
$183.00
BHW-1800-00
$282.00
BHW-2600-00
$387.00
Capacity Range800–2600 LB
Cable Size3/16"
Drum TypeBRAKE

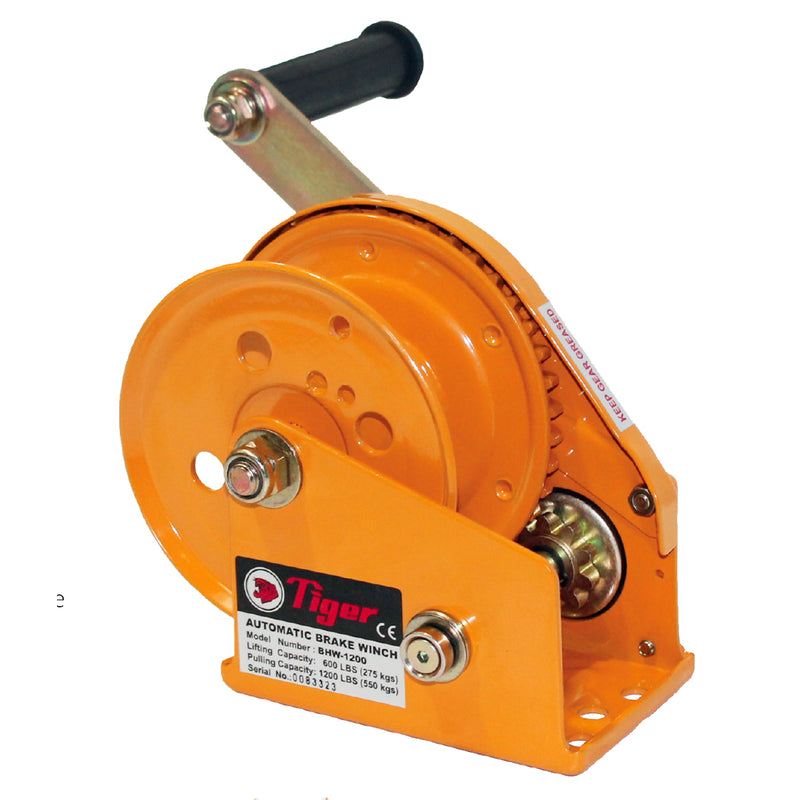

TIGER LIFTING — BRAKE HAND WINCH · BHW SERIES · 800 LB – 2600 LB · TAIWAN
The Tiger Brake Hand Winch (BHW Series) is a brake hand winch for lifting, pulling, and positioning loads. Built-in self-locking brake holds the load at any position — the lift-first-layer capacity varies by drum layer as cable is wound.
- Brake hand winch — self-locking load hold
- Lifting and pulling applications
- Capacity range: 800 – 2600 lb (first layer)
- Hand-cranked drum with ratchet brake
- Compact portable design
SeriesBHW SERIES
TypeWINCH
Capacity Range800 LB — 2600 LB
Country of OriginTAIWAN
HS Code84253900
Model Lineup — 4 Variants
| Part Number | Capacity | Cable | Ship Weight | LTL |
|---|---|---|---|---|
| BHW-0800-00 | 800 LB | 3/16" | 10 LB | — |
| BHW-1200-00 | 1200 LB | 3/16" | 10 LB | — |
| BHW-1800-00 | 1800 LB | 3/16" | 19 LB | — |
| BHW-2600-00 | 2600 LB | 3/16" | 24 LB | — |
⚠
Hand winches are rated with layer-specific capacity — always reference the rated capacity for the current drum layer. Never exceed rated capacity. Inspect cable for fraying, kinks, or corrosion before every use. Ensure the brake holds the load before releasing the handle. Keep a minimum of 5 wraps of cable on the drum at all times. Never use as an overhead hoist without proper certification.
ASME B30.7 · HS 84253900Tiger LiftingWinch — Brake Hand Winch
