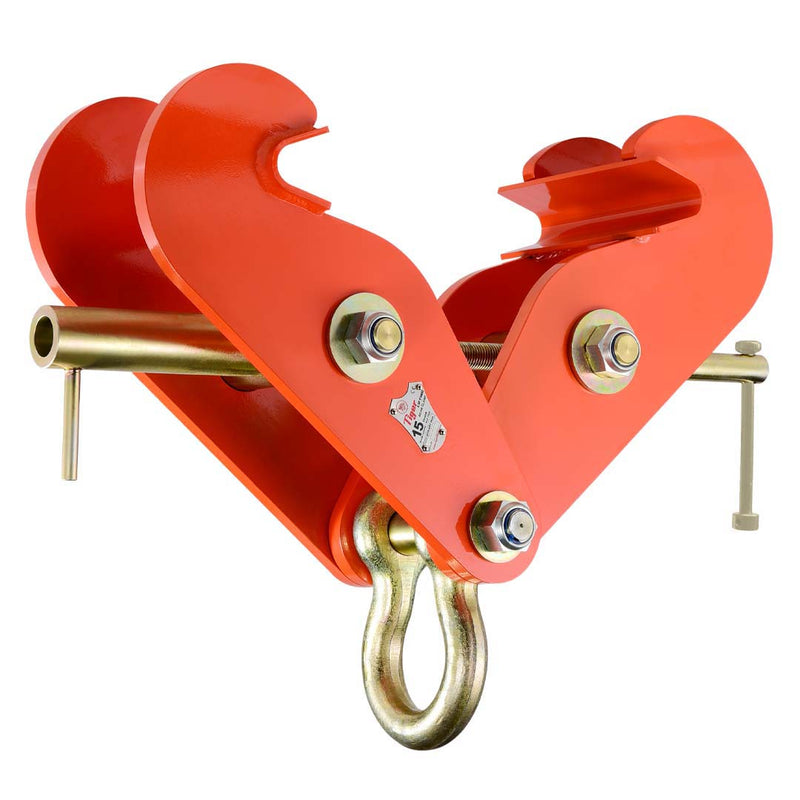

Tiger Fixed Jaw Heavy Duty Beam Clamp with Shackle - BCF Series
SKU: BCF-0100
$316.00
View Details
Order Sheet
| SKU | WLL | Beam Flange | Price | Qty | |
|---|---|---|---|---|---|
| BCF-0100 | 1 t | 2.95" – 7.67" | $316.00 |
|
|
| BCF-0200 | 2 t | 2.95" – 7.67" | $400.00 |
|
|
| BCF-0300 | 3 t | 3.94" – 13.77" | $555.00 |
|
|
| BCF-030S | 3 t | 2.96" – 7.48" | $522.00 |
|
|
| BCF-0500 | 5 t | 3.94" – 12.00" | $794.00 |
|
|
| BCF-1000 | 10 t | 4.72" – 13.77" | $1,399.00 |
|
|
| BCF-1000W | 10 t | 8.00" – 18.00" | $2,537.00 |
|
|
| BCF-1500 | 15 t | 7.99" – 17.99" | $3,326.00 |
|
|
| BCF-2000 | 20 t | 7.99" – 17.99" | $5,164.00 |
|
BCF-0100
$316.00
BCF-0200
$400.00
BCF-0300
$555.00
BCF-030S
$522.00
BCF-0500
$794.00
BCF-1000
$1,399.00
BCF-1000W
$2,537.00
BCF-1500
$3,326.00
BCF-2000
$5,164.00
Capacity Range1–20 T
Jaw Range2.95" – 18.0"
Mount TypeSHACKLE
TIGER LIFTING — FIXED JAW HEAVY DUTY BEAM CLAMP WITH SHACKLE · BCF SERIES · 1 T – 20 T · TAIWAN
The Tiger Fixed Jaw Heavy Duty Beam Clamp with Shackle (BCF Series) is a fixed-jaw heavy duty beam clamp with integrated shackle. Rated for up to 90° side loading with no deration and 15° cross loading with no deration — ideal for complex rigging geometries.
- Fixed-jaw heavy duty — integrated shackle attachment
- 90° side loading capable with no deration
- 15° cross loading with no deration
- Capacity range: 1 t – 20 t
- Made in Taiwan
SeriesBCF SERIES
TypeBEAM CLAMP
Capacity Range1 T — 20 T
ShippingLTL ON LARGER MODELS
Country of OriginTAIWAN
HS Code8431.10.0090
Model Lineup — 9 Variants
| Part Number | WLL | Beam Flange | Ship Weight | LTL |
|---|---|---|---|---|
| BCF-0100 | 1 T | 2.95" – 7.67" | 14 LB | — |
| BCF-0200 | 2 T | 2.95" – 7.67" | 17 LB | — |
| BCF-0300 | 3 T | 3.94" – 13.77" | 30 LB | — |
| BCF-030S | 3 T | 2.96" – 7.48" | 24 LB | — |
| BCF-0500 | 5 T | 3.94" – 12.00" | 35 LB | — |
| BCF-1000 | 10 T | 4.72" – 13.77" | 75 LB | — |
| BCF-1000W | 10 T | 8.00" – 18.00" | 180 LB | LTL |
| BCF-1500 | 15 T | 7.99" – 17.99" | 208 LB | LTL |
| BCF-2000 | 20 T | 7.99" – 17.99" | 261 LB | LTL |
⚠
Verify loading angle is within rated limits (90° side / 15° cross) before loading. Never exceed the rated WLL. Inspect jaw faces, locking mechanism, and shackle or eye for wear, deformation, or cracks before every use. Remove from service if jaw teeth are worn, the locking mechanism is damaged, or the rigging attachment shows deformation. Larger capacities ship LTL freight — confirm delivery address accepts LTL before ordering.
ASME B30.20 · HS 8431.10.0090Tiger LiftingBeam Clamp — Fixed Jaw Heavy Duty Beam Clamp with Shackle
