Order Sheet
| SKU | WLL | Beam Flange | Price | Qty | |
|---|---|---|---|---|---|
| BCU-0200 | 2 t | 3.0" – 7.48" | $1,370.00 |
|
|
| BCU-0300 | 3 t | 4.9" – 8.0" | $1,438.00 |
|
|
| BCU-0500 | 5 t | 4.92" – 12.00" | $2,186.00 |
|
|
| BCU-1000 | 10 t | 4.92" – 12.00" | $3,182.00 |
|
BCU-0200
$1,370.00
BCU-0300
$1,438.00
BCU-0500
$2,186.00
BCU-1000
$3,182.00
Capacity Range2–10 T
Jaw Range3.0" – 12.0"
Mount TypeUNIVERSAL
TIGER LIFTING — UNIVERSAL BEAM CLAMP · BCU SERIES · 2 T – 10 T · TAIWAN

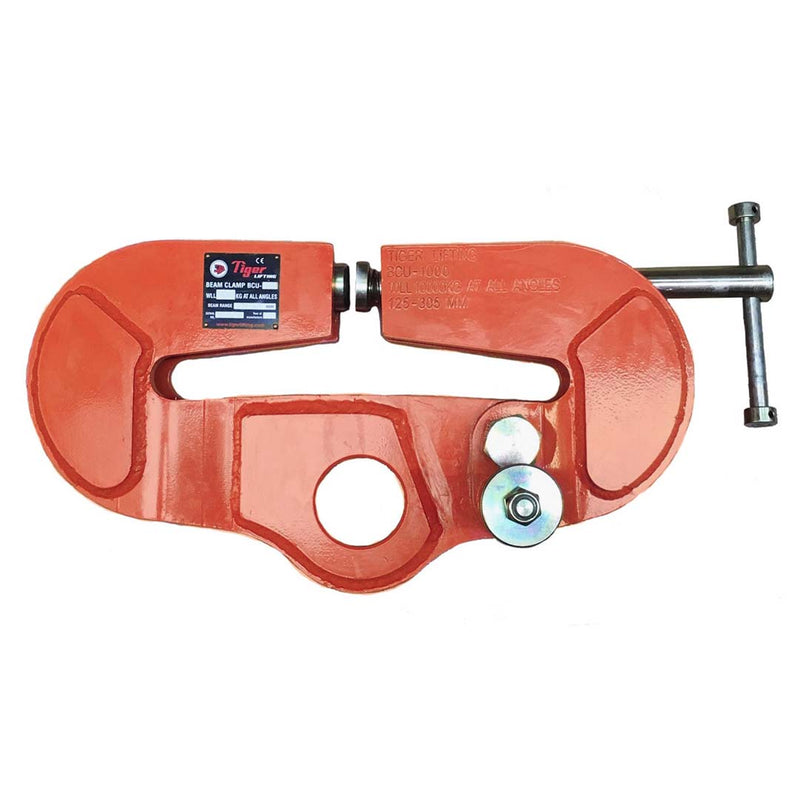

The Tiger Universal Beam Clamp (BCU Series) is a universal beam clamp designed for multi-directional loading on structural beams. Heavy-duty Taiwanese construction for demanding rigging applications.
- Universal beam clamp — multi-directional loading
- Heavy-duty Taiwan-made construction
- Capacity range: 2 t – 10 t
- Wide beam flange compatibility
SeriesBCU SERIES
TypeBEAM CLAMP
Capacity Range2 T — 10 T
Country of OriginTAIWAN
HS Code8431.10.0090
Model Lineup — 4 Variants
| Part Number | WLL | Beam Flange | Ship Weight | LTL |
|---|---|---|---|---|
| BCU-0200 | 2 T | 3.0" – 7.48" | 24 LB | — |
| BCU-0300 | 3 T | 4.9" – 8.0" | 35 LB | — |
| BCU-0500 | 5 T | 4.92" – 12.00" | 63 LB | — |
| BCU-1000 | 10 T | 4.92" – 12.00" | 75 LB | — |
⚠
Verify beam flange thickness and width match the clamp's rated range before loading. Never exceed the rated WLL. Inspect jaw faces, locking mechanism, and shackle or eye for wear, deformation, or cracks before every use. Remove from service if jaw teeth are worn, the locking mechanism is damaged, or the rigging attachment shows deformation.
ASME B30.20 · HS 8431.10.0090Tiger LiftingBeam Clamp — Universal Beam Clamp
