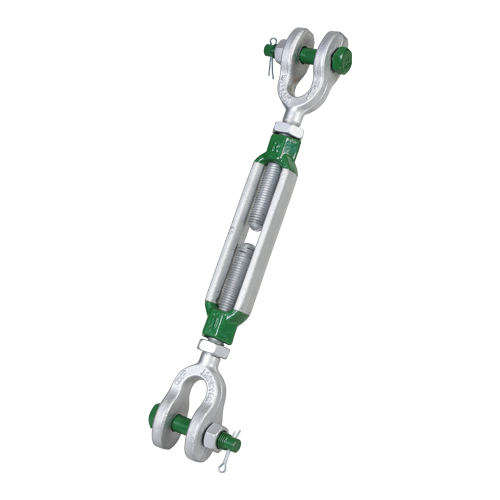

1-1/2" x 24" Green Pin® Jaw & Jaw Turnbuckle Galvanized BN 9.71 TON - SSGPMBGG3824
SSGPMBGG3824
$718.56
$0.00( / )
The Green Pin® JJ Turnbuckle BN is a turnbuckle with jaw-jaw end-fitting and a safety bolt which can be used for both lifting and lashing. The turnbuckle also offers a cotter pin and safety bolt which prevents accidental unscrewing of the pin.
- Can be used for both lifting and lashing
- Double safety (cotter pin & safety bolt)
- Design factor 5:1
- Temp. range-20°C up to +200°C
- Certification - 2.1, 2.2, 3.1, MTC, CE
- Generally to ASTM F1145-92, formerly U.S. Federal Specification FF-T-791b
Specifications
| Material | Drop forged high tensile steel SAE 1035 or 1045 |
| Finish | Hot dipped galvanized |
| WLL(Tonnes) | 9.71t |
| Take Up (Inches) | 24" |
| Products Code | G-6323 |
Real time +52 visitor right now
The Green Pin® JJ Turnbuckle BN is a turnbuckle with jaw-jaw end-fitting and a safety bolt which can be used for both lifting and lashing. The turnbuckle also offers a cotter pin and safety bolt which prevents accidental unscrewing of the pin.
- Can be used for both lifting and lashing
- Double safety (cotter pin & safety bolt)
- Design factor 5:1
- Temp. range-20°C up to +200°C
- Certification - 2.1, 2.2, 3.1, MTC, CE
- Generally to ASTM F1145-92, formerly U.S. Federal Specification FF-T-791b
Specifications
| Material | Drop forged high tensile steel SAE 1035 or 1045 |
| Finish | Hot dipped galvanized |
| WLL(Tonnes) | 9.71t |
| Take Up (Inches) | 24" |
| Products Code | G-6323 |
| Vendor: | |
|---|---|
| SKU: |
SSGPMBGG3824 |
| Weight: |
48.5 lb |
