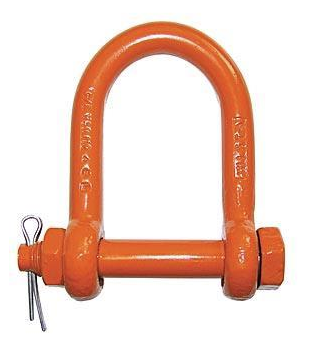

CM 1-1/4" Long Reach Shackle, Bolt, Nut and Cotter – 28,000 lb WLL – M9156P
SKU M9156P
$360.29
Use it with
Tuffy HP THP30 Round Sling, Orange30,000 lb WLL$602.12
Liftgear 5/8" Four Leg Wire Rope Sling, Master Link and Self-Locking Hooks28,000 lb WLL at 60°$559.26
William Hackett HA28ML OS+ Master Link31,960 lb (14.5 tonnes) WLL$103.78
Green Pin ROV Eye Hook, Grade 8 – 28,210 lb (12.8 tonnes) WLL – GPCSO128ROV$557.94
Details
Working Load Limit 28K LB
Reach LONG
Origin USA
Columbus McKinnon Long Reach Shackles are engineered for demanding rigging and lifting applications where extended reach and secure connections are critical. The extra length provides clearance in tight or complex rigging arrangements, while the bolt, nut & cotter configuration locks the pin securely against accidental unscrewing — making it the preferred choice for sustained overhead lifts and industrial environments.
- Extended body length for added clearance in complex rigging
- Bolt, nut & cotter pin — secure connection for sustained lifts
- Available in both Screw Pin and Bolt, Nut & Cotter configurations
- High-capacity range — 5/8" to 1-3/4"
- Manufactured in USA
TypeLONG REACH BOW SHACKLE
Pin TypeBOLT, NUT & COTTER
Size Range5/8" — 1-3/4"
WLL Range7,000 LB — 50,000 LB
OriginMANUFACTURED IN USA
Working Load Limits by Size
| Size (in) | WLL (lb) | Weight (lb) | Product Code |
|---|---|---|---|
| 5/8 | 7,000 | 1.95 | M9151p |
| 3/4 | 10,000 | 3.21 | M9152p |
| 1" | 19,000 | 6.31 | M9154p |
| 1-1/4 | 28,000 | 12.90 | M9156p |
| 1-1/2 | 34,000 | 20.70 | M9157p |
| 1-3/4 | 50,000 | 33.30 | M9177p |
⚠
Never exceed the rated Working Load Limit. Always follow applicable domestic safety regulations. Inspect before every use — remove from service if deformed, worn, or damaged.
LONG REACH │ BOLT, NUT & COTTER │ MADE IN USA Liftgear Houston, Texas
