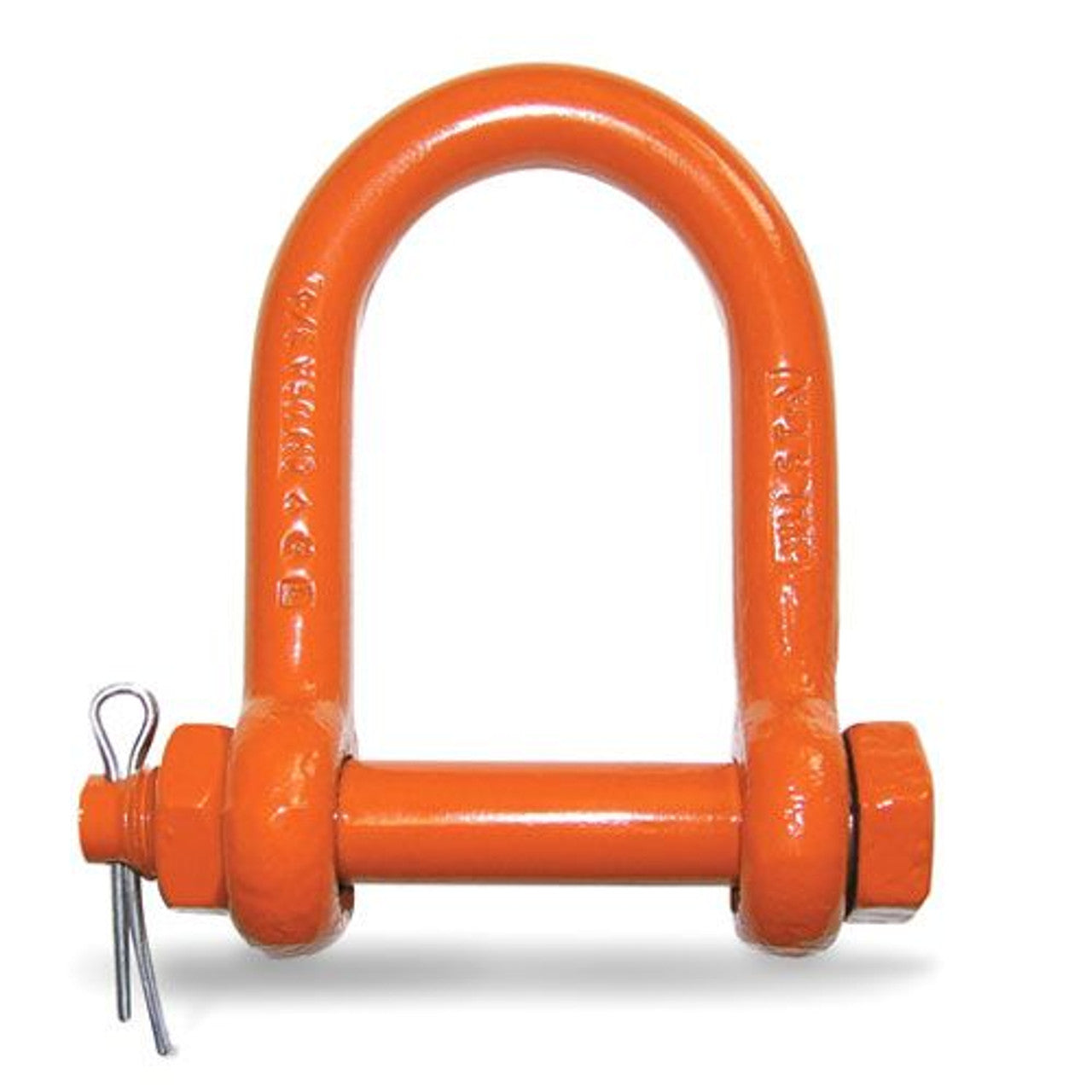

CM 1" Long Reach Shackle, Bolt, Nut and Cotter – 19,000 lb WLL – M9154P
SKU M9154P
$224.52
Returns need our approval first. Return policy
Use it with
Tuffy HP THP20 Round Sling, OrangeWLL 20,000 lb$140.00
Liftgear 1" Single Leg Wire Rope Sling, Eye and EyeWLL 19,600 lb$59.04
Liftgear SGG 5/8" Single Leg Grade 100 Chain Sling, Grab Hook Each EndWLL 22,600 lb$267.26
Liftgear 4" Two Ply Two Leg Web Sling Bridle, Master Link and EyesWLL 19,900 lb at 60°$94.62
Details
Working Load Limit 19K LB
Reach LONG
Origin USA
Columbus McKinnon Long Reach Shackles are engineered for demanding rigging and lifting applications where extended reach and secure connections are critical. The extra length provides clearance in tight or complex rigging arrangements, while the bolt, nut & cotter configuration locks the pin securely against accidental unscrewing — making it the preferred choice for sustained overhead lifts and industrial environments.
- Extended body length for added clearance in complex rigging
- Bolt, nut & cotter pin — secure connection for sustained lifts
- Available in both Screw Pin and Bolt, Nut & Cotter configurations
- High-capacity range — 5/8" to 1-3/4"
- Manufactured in USA
TypeLONG REACH BOW SHACKLE
Pin TypeBOLT, NUT & COTTER
Size Range5/8" — 1-3/4"
WLL Range7,000 LB — 50,000 LB
OriginMANUFACTURED IN USA
Working Load Limits by Size
| Size (in) | WLL (lb) | Weight (lb) | Product Code |
|---|---|---|---|
| 5/8 | 7,000 | 1.95 | M9151p |
| 3/4 | 10,000 | 3.21 | M9152p |
| 1" | 19,000 | 6.31 | M9154p |
| 1-1/4 | 28,000 | 12.90 | M9156p |
| 1-1/2 | 34,000 | 20.70 | M9157p |
| 1-3/4 | 50,000 | 33.30 | M9177p |
⚠
Never exceed the rated Working Load Limit. Always follow applicable domestic safety regulations. Inspect before every use — remove from service if deformed, worn, or damaged.
