Complete the Assembly
This sling

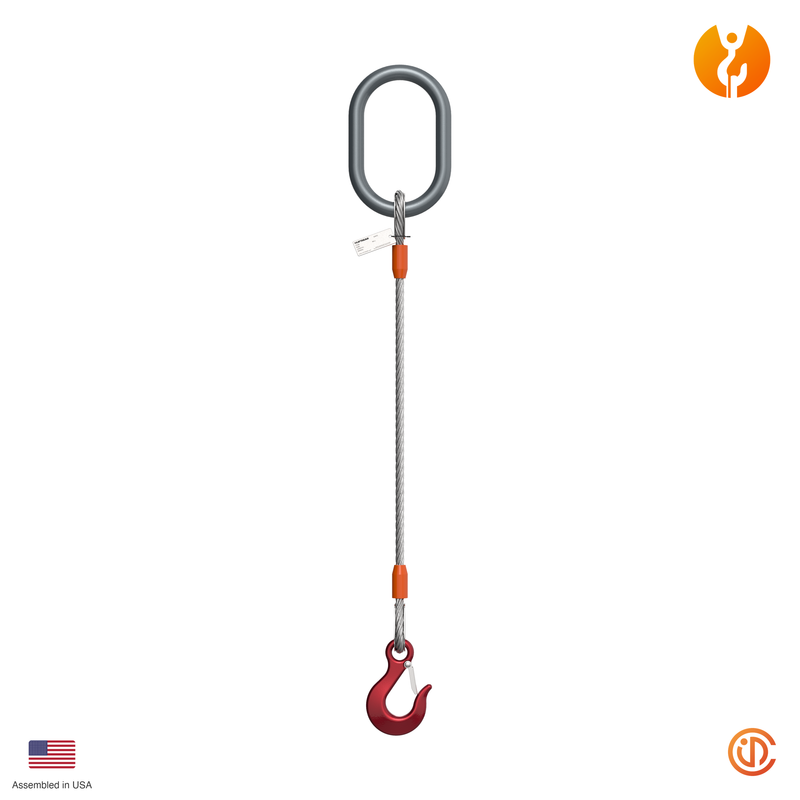

1" Single Leg Master Link-Sling Hook Wire Rope Sling
$343.48
Shackle
1" Super Strong Bolt Type Anchor Shackles 10 TON-M854G
$159.48
Assembly rated— for the matched assembly
$502.96
Order Sheet
| SKU | Length | Price | Qty | |
|---|---|---|---|---|
| 410-T371-B05K | 5' | $343.48 | ||
| 410-T371-B06K | 6' | $347.70 | ||
| 410-T371-B07K | 7' | $351.93 | ||
| 410-T371-B08K | 8' | $356.16 | ||
| 410-T371-B10K | 10' | $364.62 | ||
| 410-T371-B12K | 12' | $373.07 | ||
| 410-T371-B15K | 15' | $385.76 | ||
| 410-T371-B20K | 20' | $406.90 |
410-T371-B05K$343.48
410-T371-B06K$347.70
410-T371-B07K$351.93
410-T371-B08K$356.16
410-T371-B10K$364.62
410-T371-B12K$373.07
410-T371-B15K$385.76
410-T371-B20K$406.90
Working Load Limit
9.8 T @ 90°
Dia
1 in
Legs
1
Fit
Sling Hook
Single leg wire rope sling with oblong master link and forged alloy steel sling hook with latch. 1” diameter, 6×36WS Class IWRC bright wire rope construction, EIPS grade. Proof tested to 2× rated capacity with serialized tag and test certificate. Galvanized finish available on request.
Reach
5 – 20 FT
Top
OBLONG MASTER LINK
Bottom
SLING HOOK (LATCH)
Termination
FLEMISH EYE SPLICE
Core
INDEPENDENT (IWRC)
Finish
BRIGHT (GALV. AVAIL.)
Grade
EIPS
Safety Factor
5 : 1
Proof Test
2× WLL
Weight
~1.85 LB/FT (ROPE)
Working Load Limits — Single Leg @ 90°
| Dia. | WLL (Tons) |
|---|---|
| 3/8” | 1.4 |
| 1/2” | 2.5 |
| 5/8” | 3.9 |
| 3/4” | 5.6 |
| 7/8” | 7.6 |
| 1” | 9.8 |
| 1-1/4” | 15 |
| 1-1/2” | 21 |
⚠
Never exceed the rated Working Load Limit. Sling capacity decreases at lower angles — verify the WLL for your specific hitch and angle before each lift. Inspect before every use per ASME B30.9.
Need a custom length, fitting, or configuration?
Contact Sales →
ASME B30.9 │ OSHA 29 CFR 1926.251 │ WSTDA-WRS-1
Liftgear
Assembled in Houston, Texas
Cert lookup → certfid.io/lookup
