Liftgear

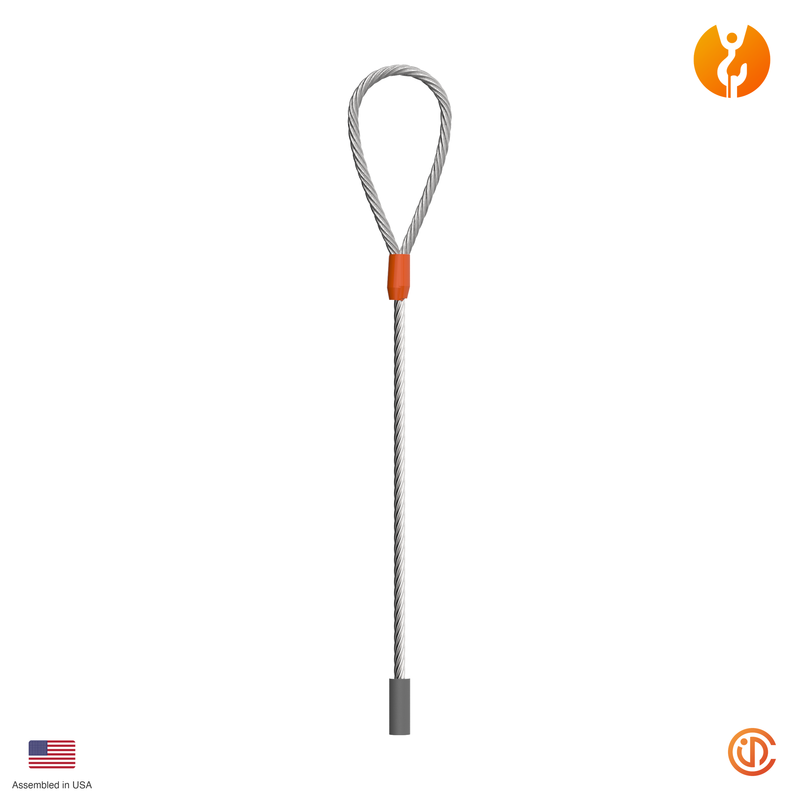

1" Single Leg Pipe Carrier Wire Rope Sling

SKU: 410-T341-B05K
$214.19
View Details
Qty:
Your rigging equipment is now smart, with Certfid.

Liftgear's Wire Rope Slings ship with Certfid. Tap the tag with a phone and its compliance and history is instantly available.

Order Sheet

SKULengthTea CupPriceQty
410-T341-B05K5'Without$214.19
410-T341-B06K6'Without$218.93
410-T341-B07K7'Without$223.66
410-T341-B08K8'Without$228.39
410-T341-B10K10'Without$237.86
410-T341-B12K12'Without$247.32
410-T341-B15K15'Without$261.52
410-T341-B20K20'Without$285.19
410-T341-B05K-TC5'With Tea Cup$438.94
410-T341-B06K-TC6'With Tea Cup$443.68
410-T341-B07K-TC7'With Tea Cup$448.41
410-T341-B08K-TC8'With Tea Cup$453.14
410-T341-B10K-TC10'With Tea Cup$462.61
410-T341-B12K-TC12'With Tea Cup$472.07
410-T341-B15K-TC15'With Tea Cup$486.27
410-T341-B20K-TC20'With Tea Cup$509.94
410-T341-B05K$214.19
Length: 5'Tea Cup: Without
410-T341-B06K$218.93
Length: 6'Tea Cup: Without
410-T341-B07K$223.66
Length: 7'Tea Cup: Without
410-T341-B08K$228.39
Length: 8'Tea Cup: Without
410-T341-B10K$237.86
Length: 10'Tea Cup: Without
410-T341-B12K$247.32
Length: 12'Tea Cup: Without
410-T341-B15K$261.52
Length: 15'Tea Cup: Without
410-T341-B20K$285.19
Length: 20'Tea Cup: Without
410-T341-B05K-TC$438.94
Length: 5'Tea Cup: With Tea Cup
410-T341-B06K-TC$443.68
Length: 6'Tea Cup: With Tea Cup
410-T341-B07K-TC$448.41
Length: 7'Tea Cup: With Tea Cup
410-T341-B08K-TC$453.14
Length: 8'Tea Cup: With Tea Cup
410-T341-B10K-TC$462.61
Length: 10'Tea Cup: With Tea Cup
410-T341-B12K-TC$472.07
Length: 12'Tea Cup: With Tea Cup
410-T341-B15K-TC$486.27
Length: 15'Tea Cup: With Tea Cup
410-T341-B20K-TC$509.94
Length: 20'Tea Cup: With Tea Cup
0 items$0.00
Working Load Limit 9.8 T VERTICAL
Dia 1 in
Legs 1
Fit Pipe Carrier
6×36WS IWRC

Single leg pipe carrier sling with swaged button ends for pipe handling. Add a tea cup on the top end for pipe rack work. 1” diameter, 6×36WS Class IWRC bright wire rope construction, EIPS grade. Proof tested to 2× rated capacity with serialized tag and test certificate. Galvanized finish available on request.

Reach 5 – 20 FT
Top BUTTON END (TEA CUP OPTIONAL)
Bottom BUTTON END
Termination FLEMISH EYE SPLICE
Core INDEPENDENT (IWRC)
Finish BRIGHT (GALV. AVAIL.)
Grade EIPS
Safety Factor 5 : 1
Proof Test 2× WLL
Weight ~1.85 LB/FT (ROPE)

Working Load Limits · Pipe Carrier

Dia. WLL (Tons) Min. Length
Single 90° Two Leg 60°
5/8” 3.9 6.7 3'
3/4” 5.6 9.6 3' 6”
7/8” 7.6 13.1 4'
1” 9.8 16.97 4' 6”
1-1/4” 15 25.9 5' 6”
1-1/2” 21 36.3 7'
⚠

Never exceed the rated Working Load Limit. Choker and basket ratings assume a vertical pull. Reduce capacity for angular loading and verify the WLL for your hitch before each lift. Inspect before every use per ASME B30.9.

ASME B30.9 │ OSHA 29 CFR 1926.251 │ WSTDA-WRS-1 Liftgear Houston, Texas Cert lookup → certfid.io/lookup
