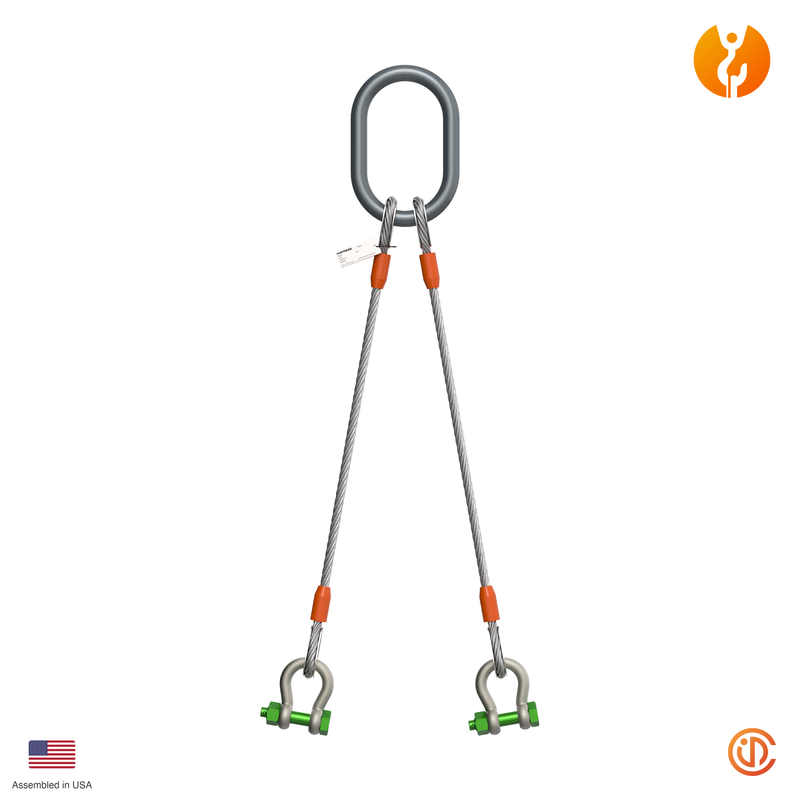

1/2" Two Leg Thimble-Shackle Wire Rope Sling

SKU: 250-T162-B03K
$94.93
View Details
Qty:
Your rigging equipment is now smart, with CertFID.

Order Sheet

SKULengthPriceQty
250-T162-B03K3'$94.93
250-T162-B04K4'$97.04
250-T162-B05K5'$99.15
250-T162-B06K6'$101.26
250-T162-B07K7'$103.37
250-T162-B08K8'$105.48
250-T162-B10K10'$109.70
250-T162-B12K12'$113.92
250-T162-B15K15'$120.25
250-T162-B20K20'$130.80
250-T162-B03K$94.93
Length: 3'
250-T162-B04K$97.04
Length: 4'
250-T162-B05K$99.15
Length: 5'
250-T162-B06K$101.26
Length: 6'
250-T162-B07K$103.37
Length: 7'
250-T162-B08K$105.48
Length: 8'
250-T162-B10K$109.70
Length: 10'
250-T162-B12K$113.92
Length: 12'
250-T162-B15K$120.25
Length: 15'
250-T162-B20K$130.80
Length: 20'
0 items$0.00
Working Load Limit 4.4 T @ 60°
Dia1/2 in
Legs2
FitShackle
6×36WS IWRC

Two leg wire rope sling with bolt-type anchor shackles and mechanically spliced flemish eye terminations. 1/2″ diameter, 6×36WS Class IWRC bright wire rope construction, EIPS grade. Proof tested to 2× rated capacity with serialized tag and test certificate. Galvanized finish available on request.

Reach3 – 20 FT
TopOBLONG MASTER LINK
BottomBOLT-TYPE ANCHOR SHACKLES
TerminationFLEMISH EYE SPLICE
CoreINDEPENDENT (IWRC)
FinishBRIGHT (GALV. AVAIL.)
GradeEIPS
Safety Factor5 : 1
Proof Test2× WLL
Weight~0.46 LB/FT (ROPE)

Working Load Limits — Two Leg

Dia. WLL (Tons) Master Link
60° 45° 30°
3/8″ 2.5 2 1.4 3/4″
1/2″ 4.4 3.6 2.5 7/8″
5/8″ 6.8 5.5 3.9 1″
3/4″ 9.7 7.9 5.6 1″
7/8″ 13 11 7.6 1-1/4″
1″ 17 14 9.8 1-1/2″
1-1/4″ 26 21 15 1-3/4″
1-1/2″ 37 30 21 2″
⚠

Never exceed the rated Working Load Limit. Sling capacity decreases at lower angles — verify the WLL for your specific hitch and angle before each lift. Inspect before every use per ASME B30.9.

ASME B30.9 │ OSHA 29 CFR 1926.251 │ WSTDA-WRS-1 Liftgear Houston, Texas Cert lookup → certfid.io/lookup
