Liftgear

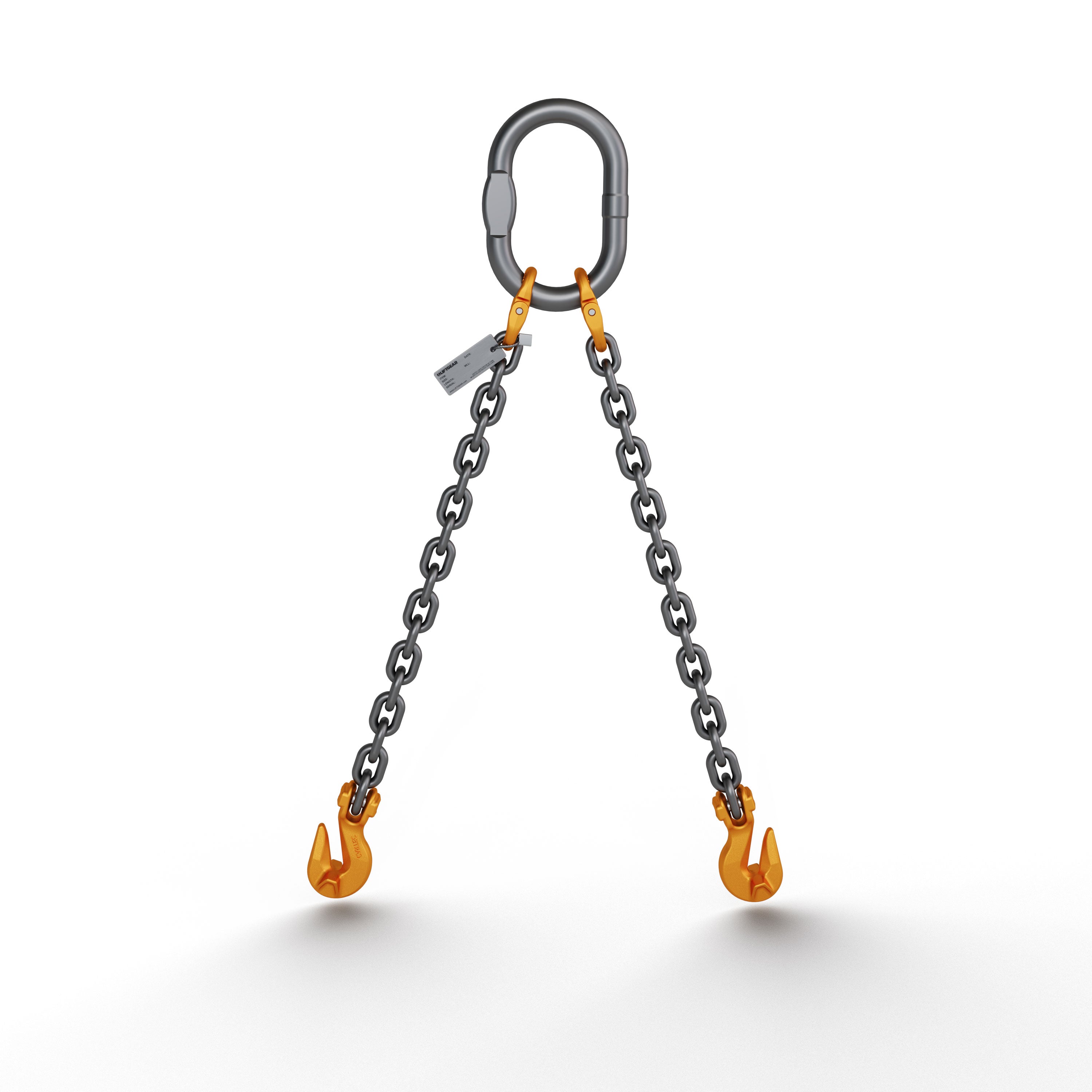

3/8" DOG DOUBLE LEG DOMESTIC ALLOY CHAIN SLING G100 - WLL 15,200 LBS
SKU: 210-DOG-04$176.85
View Details
Order Sheet
| SKU | Size | Length | Price | Qty | |
|---|---|---|---|---|---|
| 210-DOG-04 | 3/8 in | 4FT | $176.85 | ||
| 210-DOG-06 | 3/8 in | 6FT | $196.75 | ||
| 210-DOG-08 | 3/8 in | 8FT | $216.65 | ||
| 210-DOG-10 | 3/8 in | 10FT | $236.55 | ||
| 210-DOG-12 | 3/8 in | 12FT | $256.45 | ||
| 210-DOG-14 | 3/8 in | 14FT | $276.35 | ||
| 210-DOG-16 | 3/8 in | 16FT | $296.25 | ||
| 210-DOG-18 | 3/8 in | 18FT | $316.15 | ||
| 210-DOG-20 | 3/8 in | 20FT | $336.05 |
210-DOG-04$176.85
210-DOG-06$196.75
210-DOG-08$216.65
210-DOG-10$236.55
210-DOG-12$256.45
210-DOG-14$276.35
210-DOG-16$296.25
210-DOG-18$316.15
210-DOG-20$336.05
Key Features
Double Leg Grade 100 alloy chain sling with master link on top, and grab hooks each end. Chain Sizes available in 9/32",3/8",1/2" and 5/8". Assembled with Premium Made in USA Grade 100 Alloy Steel Chain.Â
Specifications:
- Made in USA Chain 🇺🇸
- Metal tag with size, reach, capacity, and individual serial number
- Approved for overhead lifting
- Built in RFID Technology for asset management and safety compliance
- 4:1 Design Factor
Grade 100 Chain Sling Specifications
| Design Factor | Single Leg | Double Leg | Triple and Quad Leg | |||||
|---|---|---|---|---|---|---|---|---|
| 4:1 |  |
 |
 |
 |
 |
 |
 |
|
| Angle | 90° | 60° | 45° | 30° | 60° | 45° | 30° | |
| Chain Size | Working Load Limit (lbs) | |||||||
| in | mm | |||||||
| 7/32" | 6 | 3,000 | 5,100 | 4,200 | 3,000 | 7,800 | 6,300 | 4,500 |
| 9/32" | 7 | 4,300 | 7,400 | 6,100 | 4,300 | 11,200 | 9,100 | 6,400 |
| 5/16" | 8 | 5,700 | 9,900 | 8,100 | 5,700 | 14,800 | 12,100 | 8,500 |
| 3/8" | 10 | 8,800 | 15,200 | 12,400 | 8,800 | 22,900 | 18,700 | 13,200 |
| 1/2" | 13 | 15,000 | 26,000 | 21,200 | 15,000 | 39,000 | 31,800 | 22,500 |
| 5/8" | 16 | 22,600 | 39,100 | 32,000 | 22,600 | 58,700 | 47,900 | 33,900 |
| 3/4" | 20 | 35,300 | 61,100 | 49,900 | 35,300 | 91,700 | 74,900 | 53,000 |
| 7/8" | 22 | 42,700 | 74,000 | 60,400 | 42,700 | 110,900 | 90,600 | 64,000 |
| 1" | 26 | 59,700 | 103,400 | 84,400 | 59,700 | 155,100 | 126,600 | 89,550 |
| 1-1/4" | 32 | 90,400 | 156,600 | 127,800 | 90,400 | 234,900 | 191,700 | 135,600 |
*Never Exceed Working Load Limits. Always follow your domestic safety regulations
