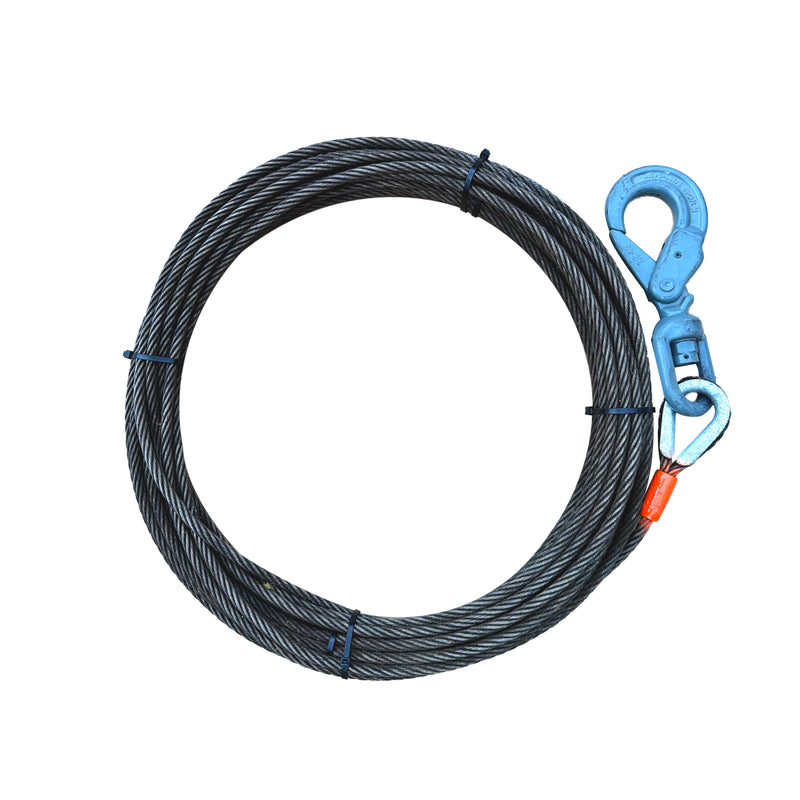

Liftgear 3/8" Wire Rope Winch Line with Self Locking Swivel Hook, 15,100 lb Breaking Strength, 3/8 in, 50FT
SKU 210-T202BK-050
$134.00
Built to order. Fabricated items can’t be returned. Return policy
Use it with
Details
Liftgear T202 Winch Cables are made of Extra Improved Plow Steel wire rope with steel core for premium strength and abrasion-resistance. Steel core winch cables also offer greater crush resistance and a higher nominal strength compared to fiber core winch cables. It features mechanically spliced thimble eye with Self-Locking Swivel Hook that will not open when under load. This provides a secure, safe connection and a free rotation design that unloads the rotational force generated during the hoisting process.
Winch Lines can also be known as: winch cable, wire rope, wrecker cables, car carrier cables, and rollback cables, roll off cables, tow lines.
Construction: 6x36 Steel Core Wire Rope (IWRC)
Finish: Bright
Fitting: 2 Ton Swivel Hook with Latch (DO NOT SWIVEL UNDER LOAD)
Assembled in USA 🇺🇸
Specifications
| EIPS IWRC (lbs) | EIPS FC (lbs) | |||
|---|---|---|---|---|
| Size (in) | Approx. Lbs Per Ft | Nominal Breaking Strength | Approx. Lbs Per Ft | Nominal Breaking Strength |
| 1/4 | 0.12 | 6,880 | 0.11 | 6,040 |
| 5/16 | 0.18 | 10,540 | 0.16 | 9,380 |
| 3/8 | 0.26 | 15,100 | 0.24 | 13,420 |
| 7/16 | 0.35 | 20,400 | 0.32 | 18,180 |
| 1/2 | 0.46 | 26,600 | 0.42 | 23,600 |
| 9/16 | 0.59 | 33,600 | 0.53 | 29,800 |
| 5/8 | 0.72 | 41,200 | 0.66 | 36,600 |
| 3/4 | 1.04 | 58,800 | 0.95 | 52,400 |
| 7/8 | 1.42 | 79,600 | 1.29 | 70,800 |
| 1 | 1.85 | 103,400 | 1.68 | 92,00 |
| 1 1/8 | 2.34 | 130,000 | 2.13 | 115,800 |
| 1 1/4 | 2.89 | 159,800 | 2.63 | 142,000 |
