Order Sheet
| SKU | Length | Price | Qty | |
|---|---|---|---|---|
| 410-T023-B05K | 5' | $922.72 |
|
|
| 410-T023-B06K | 6' | $936.14 |
|
|
| 410-T023-B07K | 7' | $949.55 |
|
|
| 410-T023-B08K | 8' | $962.97 |
|
|
| 410-T023-B10K | 10' | $989.80 |
|
|
| 410-T023-B12K | 12' | $1,016.63 |
|
|
| 410-T023-B15K | 15' | $1,056.88 |
|
|
| 410-T023-B20K | 20' | $1,123.95 |
|
410-T023-B05K
$922.72
410-T023-B06K
$936.14
410-T023-B07K
$949.55
410-T023-B08K
$962.97
410-T023-B10K
$989.80
410-T023-B12K
$1,016.63
410-T023-B15K
$1,056.88
410-T023-B20K
$1,123.95
Working Load Limit
26 T @ 60°
Dia
1 in
Legs
3
Fit
Hoist Hook

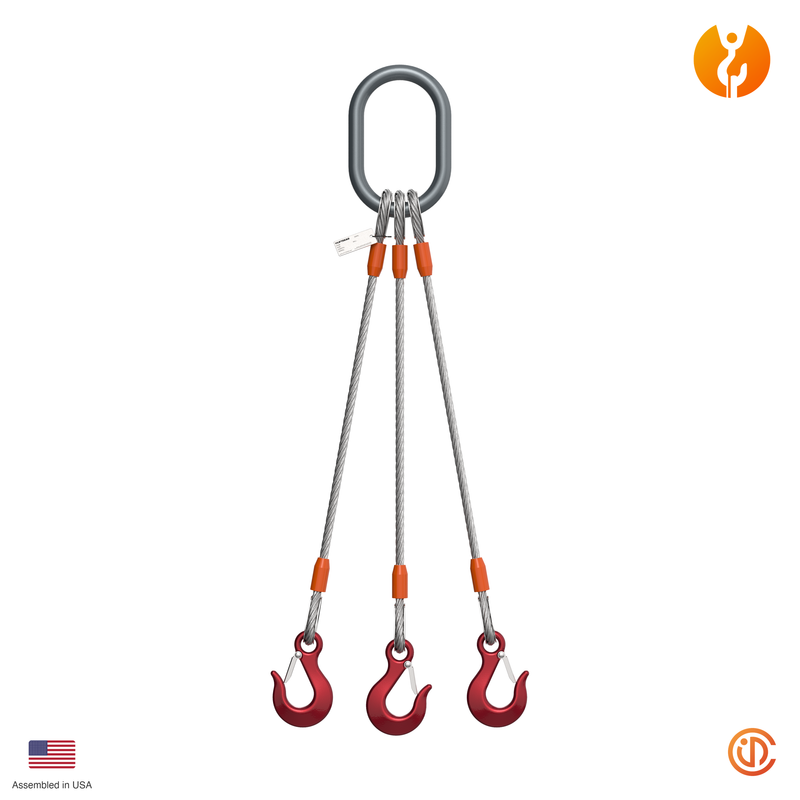

Three leg wire rope sling with forged alloy steel hoist hooks and mechanically spliced flemish eye terminations. 1” diameter, 6×36WS Class IWRC bright wire rope construction, EIPS grade. Proof tested to 2× rated capacity with serialized tag and test certificate. Galvanized finish available on request.
Reach
5 – 20 FT
Top
OBLONG MASTER LINK
Bottom
HOIST HOOKS (LATCH)
Termination
FLEMISH EYE SPLICE
Core
INDEPENDENT (IWRC)
Finish
BRIGHT (GALV. AVAIL.)
Grade
EIPS
Safety Factor
5 : 1
Proof Test
2× WLL
Weight
~1.85 LB/FT (ROPE)
Working Load Limits — Three Leg @ 60°
| Dia. | WLL (Tons) |
|---|---|
| 3/8” | 3.7 |
| 1/2” | 6.6 |
| 5/8” | 10 |
| 3/4” | 15 |
| 7/8” | 20 |
| 1” | 26 |
⚠
Never exceed the rated Working Load Limit. Sling capacity decreases at lower angles — verify the WLL for your specific hitch and angle before each lift. Inspect before every use per ASME B30.9.
Need a custom length, fitting, or configuration?
Contact Sales →
ASME B30.9 │ OSHA 29 CFR 1926.251 │ WSTDA-WRS-1
