Complete the Assembly
This sling

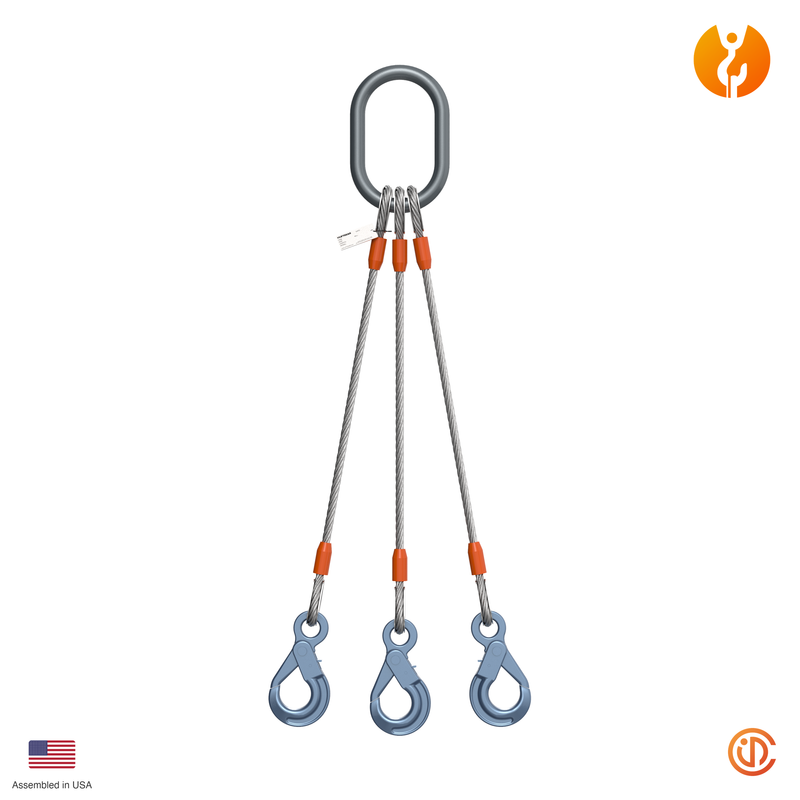

1" Three Leg Self-Locking Hook Wire Rope Sling
$1,087.60
Shackle · one per leg
1" Super Strong Bolt Type Anchor Shackles 10 TON-M854G
$159.48
Assembly rated— for the matched assembly
$1,566.04
Order Sheet
| SKU | Length | Price | Qty | |
|---|---|---|---|---|
| 410-T283-B05K | 5' | $1,087.60 | ||
| 410-T283-B06K | 6' | $1,098.71 | ||
| 410-T283-B07K | 7' | $1,109.82 | ||
| 410-T283-B08K | 8' | $1,120.93 | ||
| 410-T283-B10K | 10' | $1,143.15 | ||
| 410-T283-B12K | 12' | $1,165.37 | ||
| 410-T283-B15K | 15' | $1,198.70 | ||
| 410-T283-B20K | 20' | $1,254.25 |
410-T283-B05K$1,087.60
410-T283-B06K$1,098.71
410-T283-B07K$1,109.82
410-T283-B08K$1,120.93
410-T283-B10K$1,143.15
410-T283-B12K$1,165.37
410-T283-B15K$1,198.70
410-T283-B20K$1,254.25
Working Load Limit
26 T @ 60°
Dia
1 in
Legs
3
Fit
Self-Lock
Three leg wire rope sling with self-locking safety hooks and oblong master link. 1” diameter, 6×36WS Class IWRC bright wire rope construction, EIPS grade. Proof tested to 2× rated capacity with serialized tag and test certificate. Galvanized finish available on request.
Reach
5 – 20 FT
Top
OBLONG MASTER LINK
Bottom
SELF-LOCKING HOOKS
Termination
FLEMISH EYE SPLICE
Core
INDEPENDENT (IWRC)
Finish
BRIGHT (GALV. AVAIL.)
Grade
EIPS
Safety Factor
5 : 1
Proof Test
2× WLL
Weight
~1.85 LB/FT (ROPE)
Working Load Limits — Three Leg @ 60°
| Dia. | WLL (Tons) |
|---|---|
| 3/8” | 3.7 |
| 1/2” | 6.6 |
| 5/8” | 10 |
| 3/4” | 15 |
| 7/8” | 20 |
| 1” | 26 |
⚠
Never exceed the rated Working Load Limit. Sling capacity decreases at lower angles — verify the WLL for your specific hitch and angle before each lift. Inspect before every use per ASME B30.9.
Need a custom length, fitting, or configuration?
Contact Sales →
ASME B30.9 │ OSHA 29 CFR 1926.251 │ WSTDA-WRS-1
Liftgear
Assembled in Houston, Texas
Cert lookup → certfid.io/lookup
No documents available for this product.
