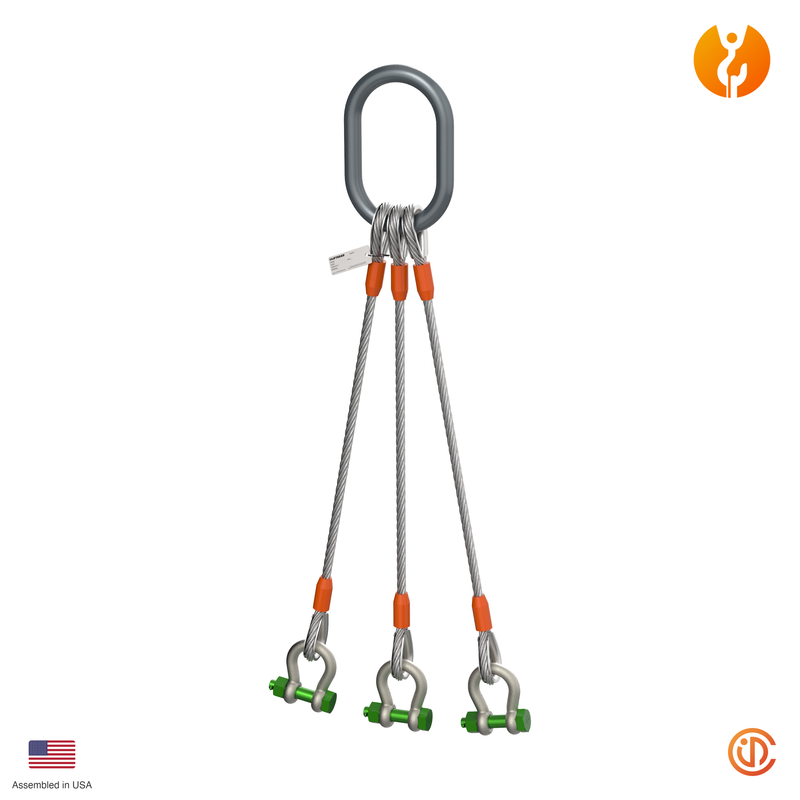

1-1/4" Three Leg Thimble-Shackle Wire Rope Sling
SKU: 430-T163-B06K$1,468.80
View Details
Order Sheet
| SKU | Length | Price | Qty | |
|---|---|---|---|---|
| 430-T163-B06K | 6' | $1,468.80 | ||
| 430-T163-B07K | 7' | $1,484.51 | ||
| 430-T163-B08K | 8' | $1,500.22 | ||
| 430-T163-B10K | 10' | $1,531.64 | ||
| 430-T163-B12K | 12' | $1,563.06 | ||
| 430-T163-B15K | 15' | $1,610.19 | ||
| 430-T163-B20K | 20' | $1,688.74 |
430-T163-B06K$1,468.80
430-T163-B07K$1,484.51
430-T163-B08K$1,500.22
430-T163-B10K$1,531.64
430-T163-B12K$1,563.06
430-T163-B15K$1,610.19
430-T163-B20K$1,688.74
Working Load Limit
26 T @ 60°
Dia1-1/4 in
Legs3
FitShackle
Three leg wire rope sling with bolt-type anchor shackles and mechanically spliced flemish eye terminations. 1-1/4″ diameter, 6×36WS Class IWRC bright wire rope construction, EIPS grade. Proof tested to 2× rated capacity with serialized tag and test certificate. Galvanized finish available on request.
Reach6 – 20 FT
TopOBLONG MASTER LINK
BottomBOLT-TYPE ANCHOR SHACKLES
TerminationFLEMISH EYE SPLICE
CoreINDEPENDENT (IWRC)
FinishBRIGHT (GALV. AVAIL.)
GradeEIPS
Safety Factor5 : 1
Proof Test2× WLL
Weight~2.89 LB/FT (ROPE)
Working Load Limits — Three Leg
| Dia. | WLL (Tons) | Master Link | ||
|---|---|---|---|---|
| 60° | 45° | 30° | ||
| 3/8″ | 2.5 | 2 | 1.4 | 3/4″ |
| 1/2″ | 4.4 | 3.6 | 2.5 | 7/8″ |
| 5/8″ | 6.8 | 5.5 | 3.9 | 1″ |
| 3/4″ | 9.7 | 7.9 | 5.6 | 1″ |
| 7/8″ | 13 | 11 | 7.6 | 1-1/4″ |
| 1″ | 17 | 14 | 9.8 | 1-1/2″ |
| 1-1/4″ | 26 | 21 | 15 | 1-3/4″ |
| 1-1/2″ | 37 | 30 | 21 | 2″ |
⚠
Never exceed the rated Working Load Limit. Sling capacity decreases at lower angles — verify the WLL for your specific hitch and angle before each lift. Inspect before every use per ASME B30.9.
ASME B30.9 │ OSHA 29 CFR 1926.251 │ WSTDA-WRS-1
