Liftgear USA

1-1/2" Four Leg MLA-Shackle Wire Rope Sling

SKU: 450-TMLAS4-B07K
$4,856.29
View Details
Qty:
Your rigging equipment is now smart, with CertFID.

Complete the Assembly

This sling
1-1/2" Four Leg MLA-Shackle Wire Rope Sling
$4,856.29
Shackle · one per leg
1-5/8" Super Strong Bolt Type Anchor Shackle 24 TON-M885G
$588.08
Assembly rated— for the matched assembly
$7,208.61

Order Sheet

SKULengthPriceQty
450-TMLAS4-B07K7'$4,856.29
450-TMLAS4-B08K8'$4,885.12
450-TMLAS4-B10K10'$4,942.78
450-TMLAS4-B12K12'$5,000.44
450-TMLAS4-B15K15'$5,086.93
450-TMLAS4-B20K20'$5,231.08
450-TMLAS4-B07K$4,856.29
Length: 7'
450-TMLAS4-B08K$4,885.12
Length: 8'
450-TMLAS4-B10K$4,942.78
Length: 10'
450-TMLAS4-B12K$5,000.44
Length: 12'
450-TMLAS4-B15K$5,086.93
Length: 15'
450-TMLAS4-B20K$5,231.08
Length: 20'
0 items$0.00
Working Load Limit 37 T @ 60°
Dia1-1/2 in
Legs4
FitMLA / Shackle
6×36WS IWRC

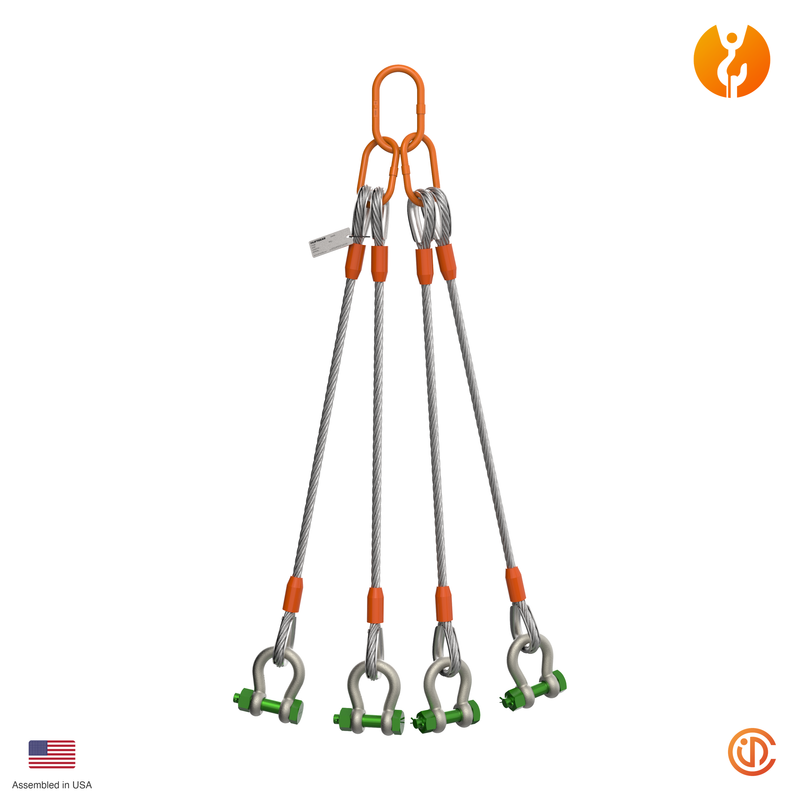

Four leg wire rope sling with master link assembly top fitting and bolt-type anchor shackles. Oblong master link with two coupling links distributing legs in a 2-over-2 configuration. 1-1/2″ diameter, 6×36WS Class IWRC bright wire rope construction, EIPS grade. Proof tested to 2× rated capacity with serialized tag and test certificate. Galvanized finish available on request.

Reach7 – 20 FT
TopMASTER LINK ASSEMBLY (MLA)
BottomBOLT-TYPE ANCHOR SHACKLES
TerminationFLEMISH EYE SPLICE
CoreINDEPENDENT (IWRC)
FinishBRIGHT (GALV. AVAIL.)
GradeEIPS
Safety Factor5 : 1
Proof Test2× WLL
Weight~4.16 LB/FT (ROPE)

Working Load Limits — Four Leg

Dia. WLL (Tons) Master Link
60° 45° 30°
3/8″ 2.5 2 1.4 3/4″
1/2″ 4.4 3.6 2.5 7/8″
5/8″ 6.8 5.5 3.9 1″
3/4″ 9.7 7.9 5.6 1″
7/8″ 13 11 7.6 1-1/4″
1″ 17 14 9.8 1-1/2″
1-1/4″ 26 21 15 1-3/4″
1-1/2″ 37 30 21 2″
⚠

Never exceed the rated Working Load Limit. Sling capacity decreases at lower angles — verify the WLL for your specific hitch and angle before each lift. Inspect before every use per ASME B30.9.

ASME B30.9 │ OSHA 29 CFR 1926.251 │ WSTDA-WRS-1 Liftgear Houston, Texas Cert lookup → certfid.io/lookup
