Liftgear

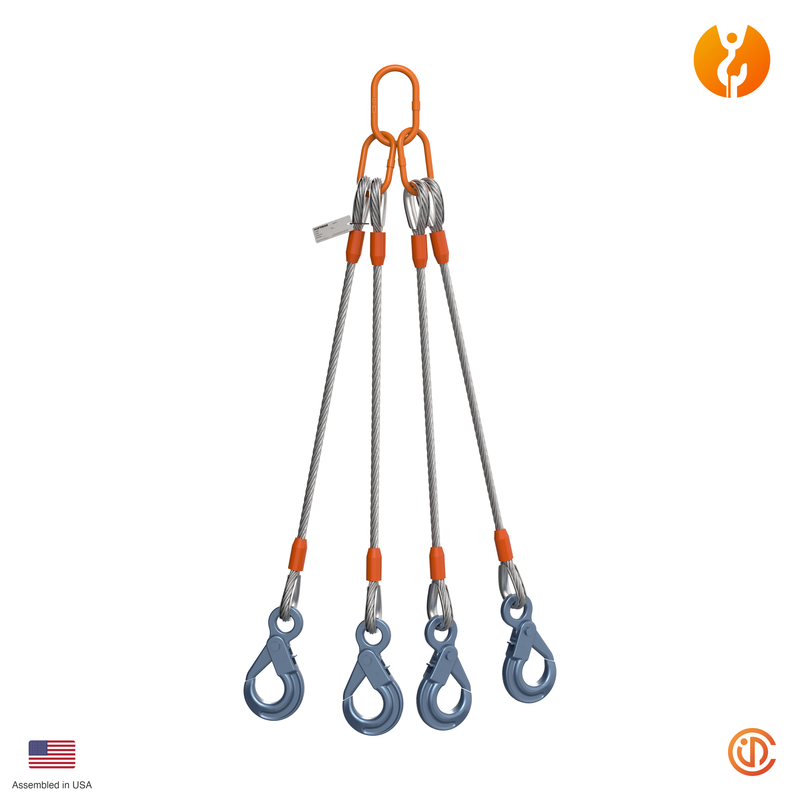

1" Four Leg MLA-Self-Locking Hook Wire Rope Sling

SKU: 410-TMLAH4-B05K
$1,527.03
View Details
Qty:
Your rigging equipment is now smart, with Certfid.

Liftgear's Quad Leg Wire Rope Slings ship with Certfid. Tap the tag with a phone and its compliance and history is instantly available.

Order Sheet

SKULengthPriceQty
410-TMLAH4-B05K5'$1,527.03
410-TMLAH4-B06K6'$1,541.85
410-TMLAH4-B07K7'$1,556.67
410-TMLAH4-B08K8'$1,571.49
410-TMLAH4-B10K10'$1,601.13
410-TMLAH4-B12K12'$1,630.77
410-TMLAH4-B15K15'$1,675.23
410-TMLAH4-B20K20'$1,749.33
410-TMLAH4-B05K$1,527.03
Length: 5'
410-TMLAH4-B06K$1,541.85
Length: 6'
410-TMLAH4-B07K$1,556.67
Length: 7'
410-TMLAH4-B08K$1,571.49
Length: 8'
410-TMLAH4-B10K$1,601.13
Length: 10'
410-TMLAH4-B12K$1,630.77
Length: 12'
410-TMLAH4-B15K$1,675.23
Length: 15'
410-TMLAH4-B20K$1,749.33
Length: 20'
0 items$0.00
Working Load Limit 34 T @ 60°
Dia 1 in
Legs 4
Fit Self-Locking Hook
6×36WS IWRC

Four leg wire rope sling with an alloy master link assembly (oblong master link with sub-assembly links) on top and forged alloy self-locking hooks on each leg, mechanically spliced flemish eye terminations. 1” diameter, 6×36WS Class IWRC bright wire rope construction, EIPS grade. Proof tested to 2× rated capacity with serialized tag and test certificate. Galvanized finish available on request.

Reach 5 – 20 FT
Top MASTER LINK ASSEMBLY
Bottom SELF-LOCKING HOOKS
Master Link 1-3/4” ALLOY MLA
Hook WLL 11 T EACH
Termination FLEMISH EYE SPLICE
Core INDEPENDENT (IWRC)
Finish BRIGHT (GALV. AVAIL.)
Grade EIPS
Safety Factor 5 : 1
Proof Test 2× WLL
Weight ~1.85 LB/FT (ROPE)

Working Load Limits · Four Leg

Dia. WLL (Tons) Master Link (MLA 3/4”+) Hook WLL
60° 45° 30°
3/8” 5.0 4.1 2.9 3/4” 1.5 T
1/2” 8.8 7.1 5.1 1” 3 T
5/8” 14 11 7.8 1-1/4” 5 T
3/4” 19 16 11 1-1/2” MLA 7 T
7/8” 26 21 15 1-1/2” MLA 11 T
1” 34 28 20 1-3/4” MLA 11 T
1-1/4” 51 42 30 2” MLA 15 T
1-1/2” 73 60 42 2-3/4” MLA 22 T
⚠

Never exceed the rated Working Load Limit. Sling capacity decreases at lower angles. Verify the WLL for your hitch and angle before each lift. Inspect before every use per ASME B30.9.

ASME B30.9 │ OSHA 29 CFR 1926.251 │ WSTDA-WRS-1 Liftgear Houston, Texas Cert lookup → certfid.io/lookup
