Complete the Assembly
This sling

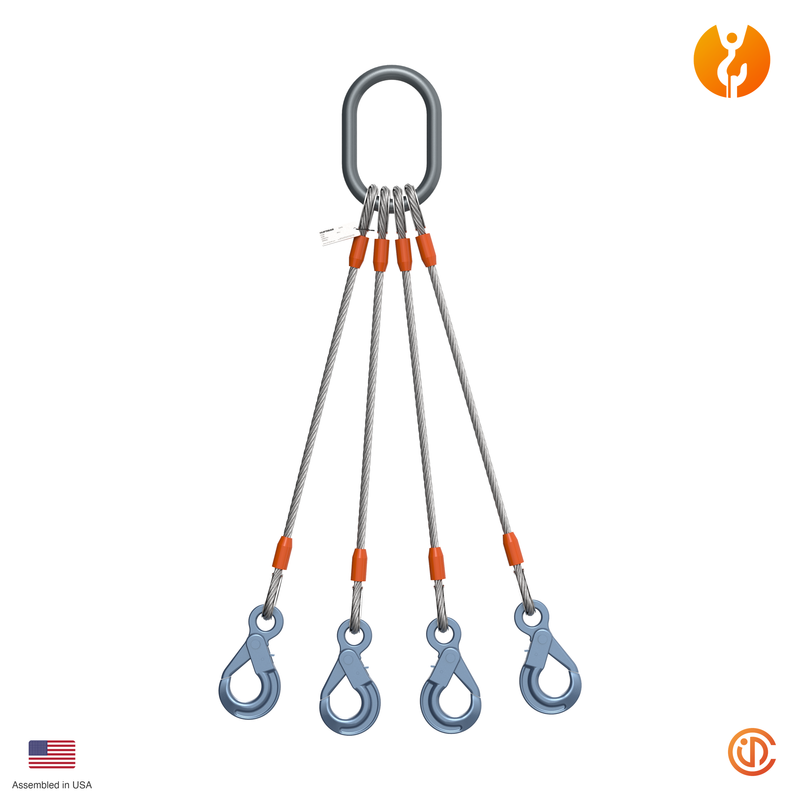

1" Four Leg Self-Locking Hook Wire Rope Sling
$1,527.03
Shackle · one per leg
1" Super Strong Bolt Type Anchor Shackles 10 TON-M854G
$159.48
Assembly rated— for the matched assembly
$2,164.95
Order Sheet
| SKU | Length | Price | Qty | |
|---|---|---|---|---|
| 410-T284-B05K | 5' | $1,527.03 | ||
| 410-T284-B06K | 6' | $1,541.85 | ||
| 410-T284-B07K | 7' | $1,556.67 | ||
| 410-T284-B08K | 8' | $1,571.49 | ||
| 410-T284-B10K | 10' | $1,601.13 | ||
| 410-T284-B12K | 12' | $1,630.77 | ||
| 410-T284-B15K | 15' | $1,675.23 | ||
| 410-T284-B20K | 20' | $1,749.33 |
410-T284-B05K$1,527.03
410-T284-B06K$1,541.85
410-T284-B07K$1,556.67
410-T284-B08K$1,571.49
410-T284-B10K$1,601.13
410-T284-B12K$1,630.77
410-T284-B15K$1,675.23
410-T284-B20K$1,749.33
Working Load Limit
34 T @ 60°
Dia
1 in
Legs
4
Fit
Self-Lock
Four leg wire rope sling with self-locking safety hooks and oblong master link. 1” diameter, 6×36WS Class IWRC bright wire rope construction, EIPS grade. Proof tested to 2× rated capacity with serialized tag and test certificate. Galvanized finish available on request.
Reach
5 – 20 FT
Top
OBLONG MASTER LINK
Bottom
SELF-LOCKING HOOKS
Termination
FLEMISH EYE SPLICE
Core
INDEPENDENT (IWRC)
Finish
BRIGHT (GALV. AVAIL.)
Grade
EIPS
Safety Factor
5 : 1
Proof Test
2× WLL
Weight
~1.85 LB/FT (ROPE)
Working Load Limits — Four Leg @ 60°
| Dia. | WLL (Tons) |
|---|---|
| 3/8” | 5 |
| 1/2” | 8.8 |
| 5/8” | 14 |
| 3/4” | 19 |
| 7/8” | 26 |
| 1” | 34 |
⚠
Never exceed the rated Working Load Limit. Sling capacity decreases at lower angles — verify the WLL for your specific hitch and angle before each lift. Inspect before every use per ASME B30.9.
Need a custom length, fitting, or configuration?
Contact Sales →
ASME B30.9 │ OSHA 29 CFR 1926.251 │ WSTDA-WRS-1
