Complete the Assembly
This sling

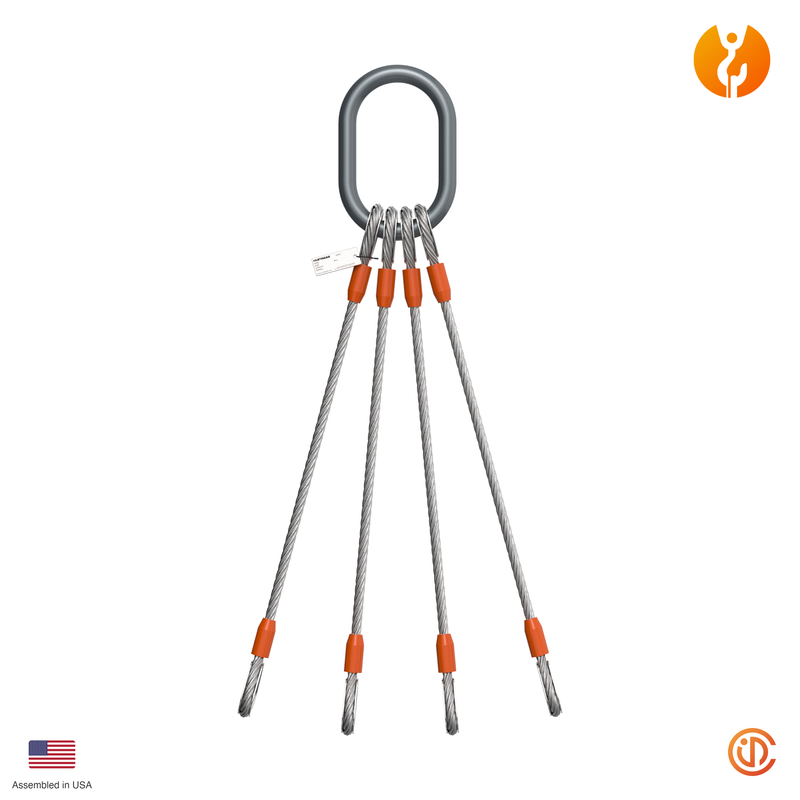

1" Four Leg Thimble-Eye Wire Rope Sling
$636.98
Shackle · one per leg
1" Super Strong Bolt Type Anchor Shackles 10 TON-M854G
$159.48
Assembly rated— for the matched assembly
$1,274.90
Order Sheet
| SKU | Length | Price | Qty | |
|---|---|---|---|---|
| 410-T034-B05K | 5' | $636.98 | ||
| 410-T034-B06K | 6' | $651.80 | ||
| 410-T034-B07K | 7' | $666.62 | ||
| 410-T034-B08K | 8' | $681.44 | ||
| 410-T034-B10K | 10' | $711.08 | ||
| 410-T034-B12K | 12' | $740.72 | ||
| 410-T034-B15K | 15' | $785.18 | ||
| 410-T034-B20K | 20' | $859.28 |
410-T034-B05K$636.98
410-T034-B06K$651.80
410-T034-B07K$666.62
410-T034-B08K$681.44
410-T034-B10K$711.08
410-T034-B12K$740.72
410-T034-B15K$785.18
410-T034-B20K$859.28
Working Load Limit
34 T @ 60°
Dia
1 in
Legs
4
Fit
Thimble-Eye
Four leg wire rope sling with pressed steel thimble-eye terminations and oblong master link. 1” diameter, 6×36WS Class IWRC bright wire rope construction, EIPS grade. Proof tested to 2× rated capacity with serialized tag and test certificate. Galvanized finish available on request.
Reach
5 – 20 FT
Top
OBLONG MASTER LINK
Bottom
THIMBLE-EYE
Termination
FLEMISH EYE SPLICE
Core
INDEPENDENT (IWRC)
Finish
BRIGHT (GALV. AVAIL.)
Grade
EIPS
Safety Factor
5 : 1
Proof Test
2× WLL
Weight
~1.85 LB/FT (ROPE)
Working Load Limits — Four Leg @ 60°
| Dia. | WLL (Tons) |
|---|---|
| 3/8” | 5 |
| 1/2” | 8.8 |
| 5/8” | 14 |
| 3/4” | 19 |
| 7/8” | 26 |
| 1” | 34 |
⚠
Never exceed the rated Working Load Limit. Sling capacity decreases at lower angles — verify the WLL for your specific hitch and angle before each lift. Inspect before every use per ASME B30.9.
Need a custom length, fitting, or configuration?
Contact Sales →
ASME B30.9 │ OSHA 29 CFR 1926.251 │ WSTDA-WRS-1
Liftgear
Assembled in Houston, Texas
Cert lookup → certfid.io/lookup
No documents available for this product.
