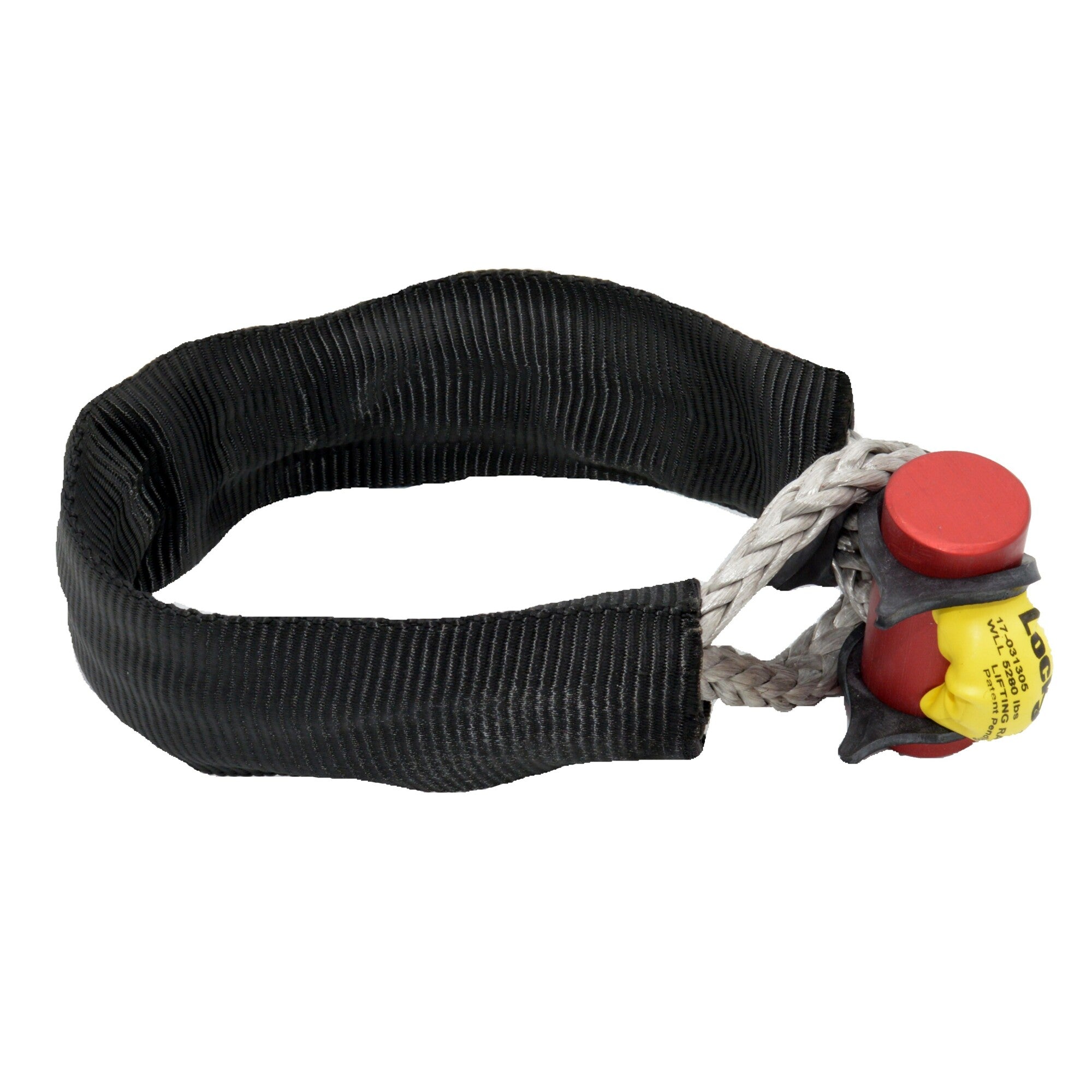

Fusion Tools LockJaw 17-03130XK Synthetic Shackle, Lifting Rated with Kevlar, WLL 5,280 lb, 3 Inches
SKU 17-031305K
$52.18
Use it with
Liftgear LERS2 Endless Round Sling, GreenWLL 5,300 lb$13.90
Liftgear 3/8" Three Leg Wire Rope Sling, Thimble Eyes and ShacklesWLL 7,400 lb at 60°$139.04
Liftgear 2" Two Ply Single Leg Web Sling, Master Link and EyeWLL 6,400 lb$33.97
Green Pin P-6703A Swivel Hoist Hook with Safety Latch – 5,510 lb (2.5 tonnes) WLL – HKK03A025$64.42
Details
Synthetic Lifting Rated Shackles
LockJaw® Synthetic Lifting Shackle is the only synthetic shackle rated for lifting applications. Made of high-strength synthetic fibers, LockJaw is as strong as steel shackles but vastly lighter. Its flexible shape replaces Bow and D-Shackles and adds greater versatility than any other shackle in the marketplace. LockJaw easily wraps around all kinds of anchor points. Synthetic fibers create less damage while working around delicate components. Shackle fibers are UV/abrasion-resistant, freeze-proof, and will not rust. The exclusive lock securely holds the shackle closed when in use. The lock is permanently attached to the shackle, preventing lost pins common with steel shackles. LockJaw’s light weight is much safer and minimizes injuries if dropped. Lifting Rated – Meets or exceeds ASME B30.26 Made in USA.
Specifications
- Stronger than steel yet extremely light
- Wraps around most anchor points
- Lock keeps shackle securely closed
- Meets or exceeds ASME B30.26 for lifting
- Rated for lifting applications
- Capabilities 1.65 to 4.3 tons
- Rope made with HMPE fibers
- Proof testing w/certificates available
- Meets or exceeds ASME B30.26
- Aircraft grade aluminum jaw
- Working temperature range: -200°C to + 70°C
- Working load limit permanently shown on every
- shackle.
Size Specifications
| Item # | Working Diameter (in.) | Working Load Limit (t)* | Weight Each (lbs.) | A | B | C | D | Tolerance +/- A | Tolerance +/- B |
|---|---|---|---|---|---|---|---|---|---|
| 17-018804 | 2.5 | 0.9 | 0.2 | 0.19 | 0.63 | 4 | 1.75 | 0.005 | 0.005 |
| 17-018808 | 4 | 0.9 | 0.25 | 0.19 | 0.63 | 8 | 1.75 | 0.005 | 0.005 |
| 17-025004 | 2.5 | 1.65 | 0.25 | 0.25 | 0.75 | 4 | 2.1 | 0.005 | 0.005 |
| 17-025008 | 4 | 1.65 | 0.3 | 0.25 | 0.75 | 8 | 2.1 | 0.005 | 0.005 |
| 17-031305 | 3 | 2.64 | 0.3 | 0.31 | 1.00 | 5 | 2.2 | 0.005 | 0.005 |
| 17-031310 | 6 | 2.64 | 0.4 | 0.31 | 1.00 | 10 | 2.2 | 0.005 | 0.005 |
| 17-037505 | 3 | 3.36 | 0.4 | 0.38 | 1.13 | 5 | 2.6 | 0.005 | 0.005 |
| 17-037510 | 6 | 3.36 | 0.5 | 0.38 | 1.13 | 10 | 2.6 | 0.005 | 0.005 |
| 17-043805 | 3 | 4.3 | 0.5 | 0.44 | 1.25 | 5 | 3.1 | 0.005 | 0.005 |
| 17-043810 | 6 | 4.3 | 0.6 | 0.44 | 1.25 | 10 | 3.1 | 0.005 | 0.005 |
