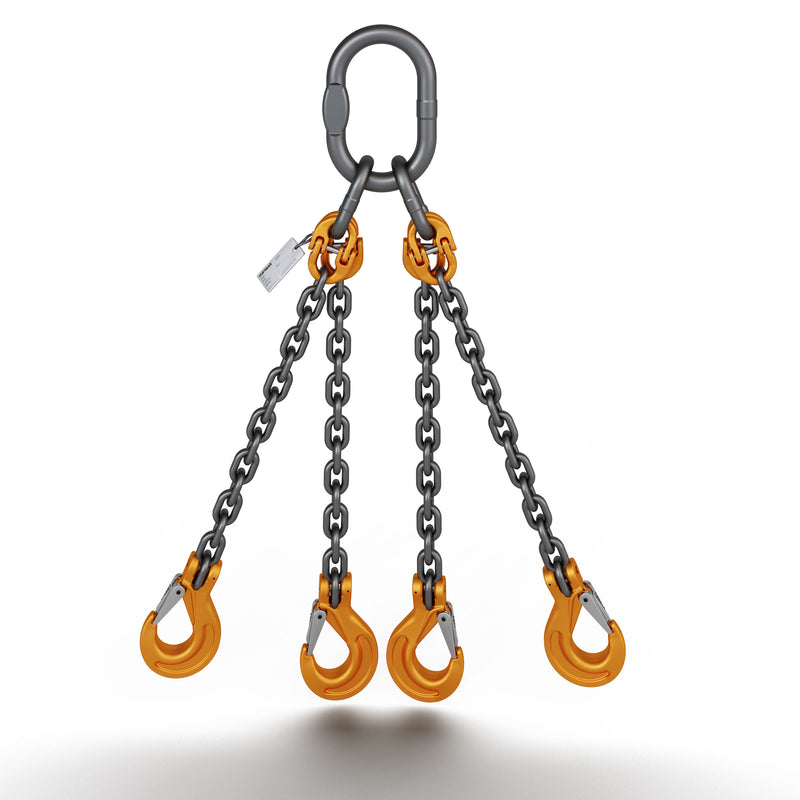

5/8" QOS FOUR LEG DOMESTIC ALLOY CHAIN SLING G100 - WLL 58,700 LBS

SKU: 290-QOS-04
$1,724.58
View Details
Qty:
Your rigging equipment is now smart, with CertFID.

Order Sheet

SKUSizeLengthPriceQty
290-QOS-045/8 in4FT$1,724.58
290-QOS-065/8 in6FT$1,848.58
290-QOS-085/8 in8FT$1,972.58
290-QOS-105/8 in10FT$2,096.58
290-QOS-125/8 in12FT$2,220.58
290-QOS-145/8 in14FT$2,344.58
290-QOS-165/8 in16FT$2,468.58
290-QOS-185/8 in18FT$2,592.58
290-QOS-205/8 in20FT$2,716.58
290-QOS-04$1,724.58
Size: 5/8 inLength: 4FT
290-QOS-06$1,848.58
Size: 5/8 inLength: 6FT
290-QOS-08$1,972.58
Size: 5/8 inLength: 8FT
290-QOS-10$2,096.58
Size: 5/8 inLength: 10FT
290-QOS-12$2,220.58
Size: 5/8 inLength: 12FT
290-QOS-14$2,344.58
Size: 5/8 inLength: 14FT
290-QOS-16$2,468.58
Size: 5/8 inLength: 16FT
290-QOS-18$2,592.58
Size: 5/8 inLength: 18FT
290-QOS-20$2,716.58
Size: 5/8 inLength: 20FT
0 items$0.00

Key Features

Quadruple leg alloy chain sling with Sub Assembly Link on top, and Sling Hooks on the bottom. Chain Sizes available in 9/32",3/8",1/2",5/8". Assembled with Premium Made in USA Grade 100 Alloy Steel Chain.

Specifications:

  • Made in USA Chain 🇺🇸
  • Metal tag with size, reach, capacity, and individual serial number
  • Approved for overhead lifting
  • Built in RFID Technology for asset management and safety compliance
  • 4:1 Design Factor

Grade 100 Chain Sling Specifications

Design Factor Single Leg Double Leg Triple and Quad Leg
4:1
Angle 90° 60° 45° 30° 60° 45° 30°
Chain Size Working Load Limit (lbs)
in mm
7/32" 6 3,000 5,100 4,200 3,000 7,800 6,300 4,500
9/32" 7 4,300 7,400 6,100 4,300 11,200 9,100 6,400
5/16" 8 5,700 9,900 8,100 5,700 14,800 12,100 8,500
3/8" 10 8,800 15,200 12,400 8,800 22,900 18,700 13,200
1/2" 13 15,000 26,000 21,200 15,000 39,000 31,800 22,500
5/8" 16 22,600 39,100 32,000 22,600 58,700 47,900 33,900
3/4" 20 35,300 61,100 49,900 35,300 91,700 74,900 53,000
7/8" 22 42,700 74,000 60,400 42,700 110,900 90,600 64,000
1" 26 59,700 103,400 84,400 59,700 155,100 126,600 89,550
1-1/4" 32 90,400 156,600 127,800 90,400 234,900 191,700 135,600


*Never Exceed Working Load Limits. Always follow your domestic safety regulations
