5/8" SGS SINGLE LEG DOMESTIC ALLOY CHAIN SLING G100 - WLL 22,600 LBS
SKU: 290-SGS-04$320.20
View Details
Order Sheet
| SKU | Size | Length | Price | Qty | |
|---|---|---|---|---|---|
| 290-SGS-04 | 5/8 in | 4FT | $320.20 | ||
| 290-SGS-06 | 5/8 in | 6FT | $351.20 | ||
| 290-SGS-08 | 5/8 in | 8FT | $382.20 | ||
| 290-SGS-10 | 5/8 in | 10FT | $413.20 | ||
| 290-SGS-12 | 5/8 in | 12FT | $444.20 | ||
| 290-SGS-14 | 5/8 in | 14FT | $475.20 | ||
| 290-SGS-16 | 5/8 in | 16FT | $506.20 | ||
| 290-SGS-18 | 5/8 in | 18FT | $537.20 | ||
| 290-SGS-20 | 5/8 in | 20FT | $568.20 |
290-SGS-04$320.20
290-SGS-06$351.20
290-SGS-08$382.20
290-SGS-10$413.20
290-SGS-12$444.20
290-SGS-14$475.20
290-SGS-16$506.20
290-SGS-18$537.20
290-SGS-20$568.20
Key Features

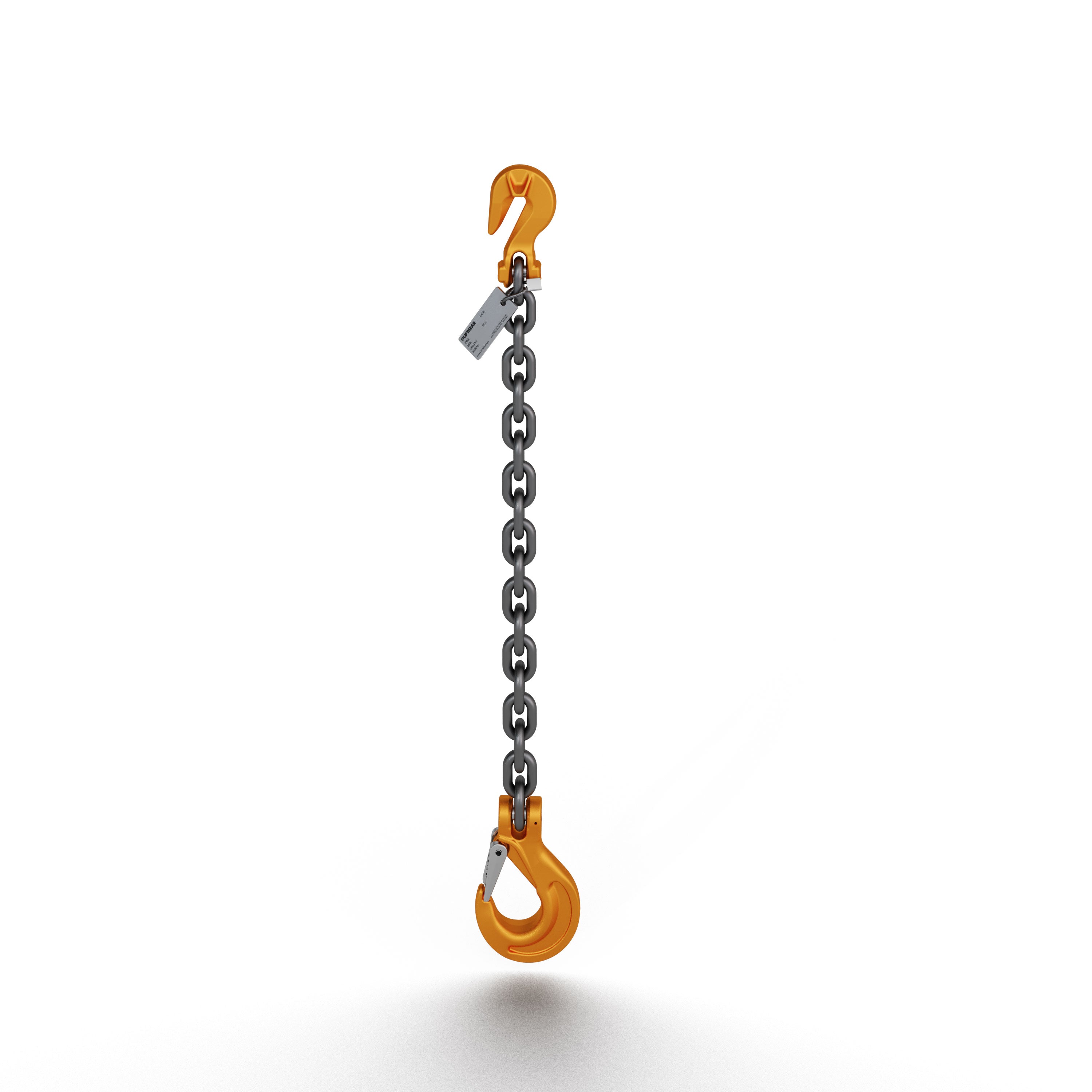

Single leg alloy chain sling with clevis sling hook one end and grab hook other end. Chain Sizes available in 9/32",3/8",1/2" and 5/8". Assembled with Premium Made in USA Grade 100 Alloy Steel Chain.Â
Specifications:
- Made in USA Chain 🇺🇸
- Metal tag with size, reach, capacity, and individual serial number
- Approved for overhead lifting
- Built in RFID Technology for asset management and safety compliance
- 4:1 Design Factor
Grade 100 Chain Sling Specifications
| Design Factor | Single Leg | Double Leg | Triple and Quad Leg | |||||
|---|---|---|---|---|---|---|---|---|
| 4:1 |  |
 |
 |
 |
 |
 |
 |
|
| Angle | 90° | 60° | 45° | 30° | 60° | 45° | 30° | |
| Chain Size | Working Load Limit (lbs) | |||||||
| in | mm | |||||||
| 7/32" | 6 | 3,000 | 5,100 | 4,200 | 3,000 | 7,800 | 6,300 | 4,500 |
| 9/32" | 7 | 4,300 | 7,400 | 6,100 | 4,300 | 11,200 | 9,100 | 6,400 |
| 5/16" | 8 | 5,700 | 9,900 | 8,100 | 5,700 | 14,800 | 12,100 | 8,500 |
| 3/8" | 10 | 8,800 | 15,200 | 12,400 | 8,800 | 22,900 | 18,700 | 13,200 |
| 1/2" | 13 | 15,000 | 26,000 | 21,200 | 15,000 | 39,000 | 31,800 | 22,500 |
| 5/8" | 16 | 22,600 | 39,100 | 32,000 | 22,600 | 58,700 | 47,900 | 33,900 |
| 3/4" | 20 | 35,300 | 61,100 | 49,900 | 35,300 | 91,700 | 74,900 | 53,000 |
| 7/8" | 22 | 42,700 | 74,000 | 60,400 | 42,700 | 110,900 | 90,600 | 64,000 |
| 1" | 26 | 59,700 | 103,400 | 84,400 | 59,700 | 155,100 | 126,600 | 89,550 |
| 1-1/4" | 32 | 90,400 | 156,600 | 127,800 | 90,400 | 234,900 | 191,700 | 135,600 |
*Never Exceed Working Load Limits. Always follow your domestic safety regulations
