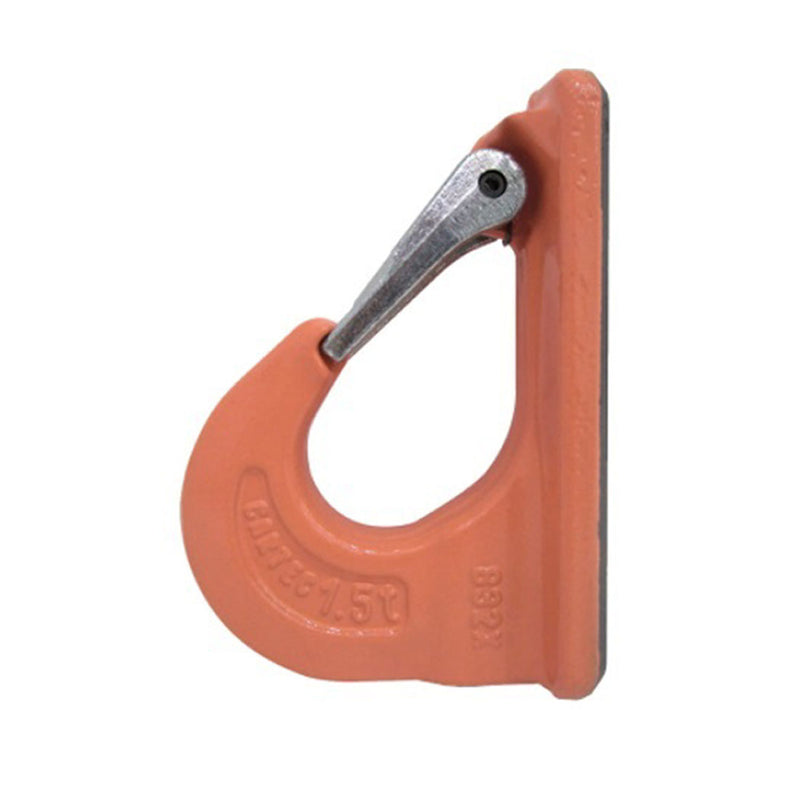

AMH Weld-On Type Bucket Hook – 14,770 lb (6.7 tonnes) WLL – C832X067
SKU C832X067
$258.50
Use it with
Liftgear ASOS 1/2" Single Leg Adjustable Grade 100 Chain Sling, Master Link and Sling HookWLL 15,000 lb$272.41
CM Super Strong 7/8" Screw Pin Anchor Shackle – 17,000 lb WLL – M653G$88.24
Green Pin ROV Eye Hook, Grade 8 – 18,070 lb (8.2 tonnes) WLL – GPCSO082ROV$362.82
Liftgear SSS 1/2" Single Leg Grade 100 Chain Sling, Sling Hook Each EndWLL 15,000 lb$216.32
Details
Weld-On Bucket Hook
Cartec Alloy Fittings: G100 Connecting Link Clevis Sling Hook Clevis Grab Hook with Saddle Clevis Grab Hook with Saddle and Latch Clevis Foundry Hook Clevis.
A wide range of swivel eyebolts, products for lifting, for moving and for overturning heavy loads, as well as personal restraining devices: everything directly manufactured by Carcano.
Specifications
- Safety coefficient 4
- For asymmetric loads remember that the capacity has to be reduced as shown in the reference table
- The hook must always be aligned to the pull direction
- The hook can be used safely up to maximum 20,000 liftings with a full load
- Made in high resistant steel
- Painted with epoxy paint
- 100% magnaflux tested
- Tested at 20,000 fatigue cycles
- Designed, tested and certified in compliance with the technical directives GS-OA 15-04 – EN1677-1
- Suitable for safe lifting in compliance with the machinery directive 2006/42/EC
Part Specifications
| Part # | WLL metric tons | A (in) | B (in) | C (in) | D (in) | E (in) | F (in) | G (in) | H (in) | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|
| C832X015 | 1.5 | 0.98 | 3.11 | 1.10 | 1.57 | 0.59 | 1.58 | 0.39 | 4.61 | 1.54 |
| C832X025 | 2.5 | 1.18 | 3.98 | 1.38 | 1.85 | 0.83 | 1.97 | 0.39 | 5.79 | 3.09 |
| C832X040 | 4 | 1.46 | 4.96 | 1.69 | 2.48 | 1.02 | 2.36 | 0.59 | 6.73 | 5.95 |
| C832X067 | 6.7 | 1.89 | 6.22 | 2.13 | 2.80 | 1.30 | 2.76 | 0.59 | 8.19 | 10.58 |
