Description

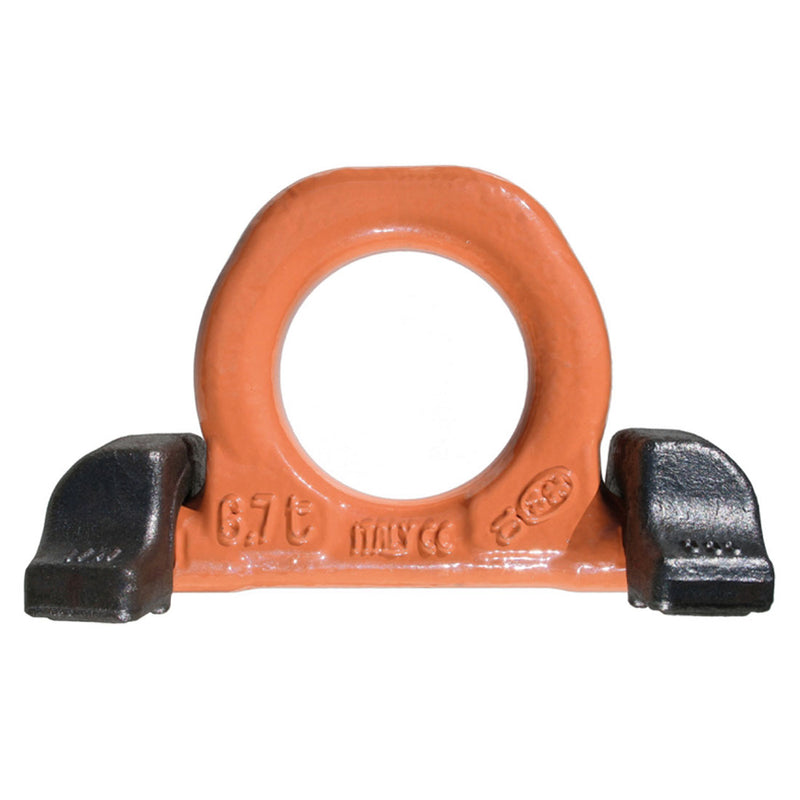

Double Base Weld-On Lifting Rings

Cartec Alloy Fittings: G100 Connecting Link Clevis Sling Hook Clevis Grab Hook with Saddle Clevis Grab Hook with Saddle and Latch Clevis Foundry Hook Clevis.

Specification:

  • Usage: Designed for load lifting with the entire base perimeter welded, except for the water discharge area.
  • Safety Factor: 4
  • Capacity reduction required for asymmetric loads (see reference table).
  • Bracket must align with pulling direction (tolerance: +/- 10°)
  • Rated for 20,000 full-load lifts.
  • Constructed from high-strength steel with epoxy paint finish.
  • 100% magnaflux tested and stress-tested for 20,000 cycles.

SPECIFICATIONS

Part Specifications
Part # WLL metric tons A (in) B (in) C (in) D (in) E (in) F (in) G (in) H (in) Weight (lbs)
C820X04 4 0.55 2.56 1.89 1.14 5.28 0.55 2.36 3.11 1.61
C820X067 6.7 0.79 3.27 2.36 1.54 6.65 0.63 3.46 4.06 3.97
C820X10 10 0.87 3.78 2.56 1.89 7.72 0.77 3.86 4.65 6.61
C820X16 16 1.22 4.96 3.54 2.17 10.39 1.14 5.00 6.10 12.68
C820X30 30 1.65 6.89 5.12 3.11 14.61 1.77 6.18 8.54 35.27

*Never Exceed Working Load Limits. Always follow your domestic safety regulations
