Codipro DSR 1-1/4"-7 UNC Double Swivel Hoist Ring – 13,500 lb WLL – DSR U 125 UP

Image may not match exactly. Refer to the specs.

Schematic

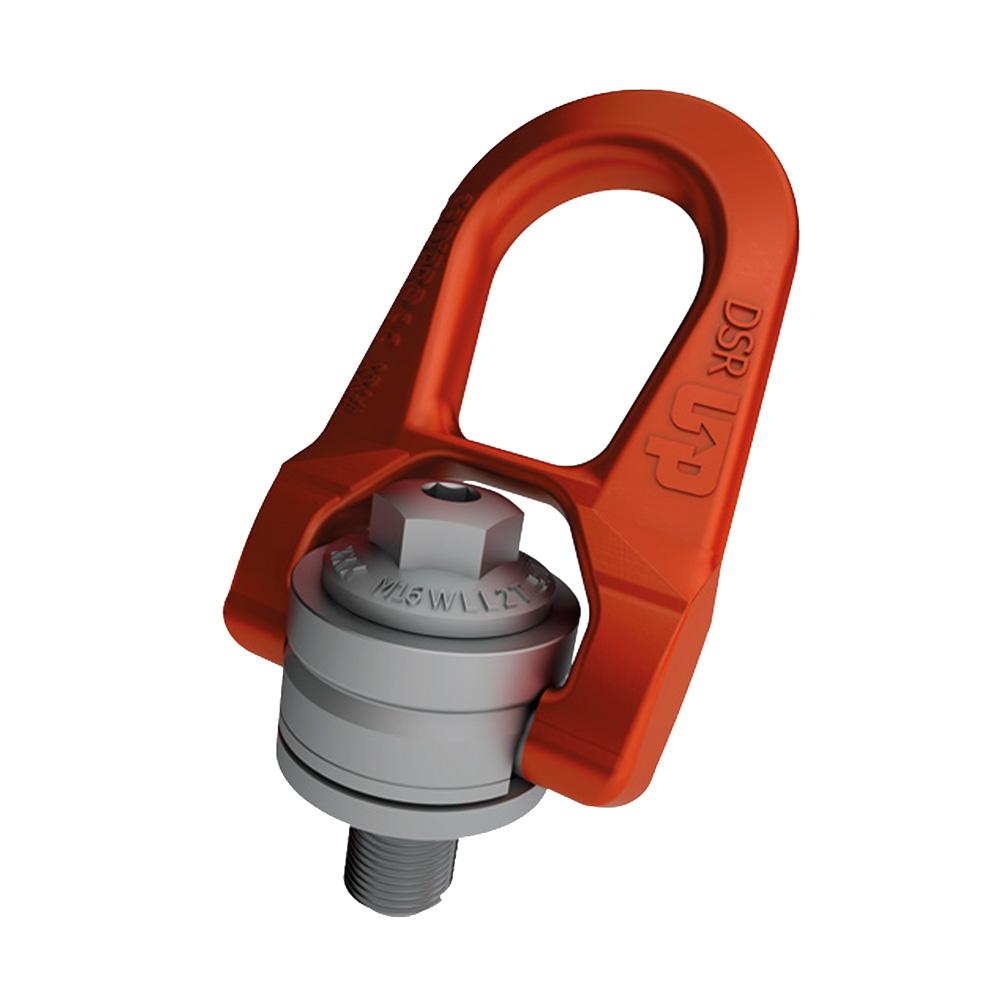

Codipro DSR 1-1/4"-7 UNC Double Swivel Hoist Ring – 13,500 lb WLL – DSR U 125 UP

SKU DSR U 125 UP

$418.58

Returns need our approval first. Return policy

Use it with

Details

Working Load Limit 13.5K LB
Swivel 360°
Thread UNC
CODIPRO DSR — DOUBLE SWIVEL RING / GRADUP STEEL / UNC THREAD

The Codipro DSR is a double swivel lifting ring specially designed for simultaneously lifting and rotating loads. Unlike a single swivel ring, the DSR's double swivel action — 360° rotation combined with 180° ring swivel — ensures the ring aligns perfectly under load at any angle. Built from GRADUP steel and zinc plated for durability, each unit ships with a user manual and individual certificate of compliance.

  • Double swivel — 360° rotation & 180° ring swivel
  • GRADUP steel — engineered specifically for lifting applications
  • Ideal for simultaneously lifting and rotating loads
  • Ring swivels under load for perfect alignment in any direction
  • Coditracer enabled for asset traceability
  • Supplied with user manual and individual certificate
  • ISO 9001, ISO 14001 & ISO 27001 certified
  • CE marked
TypeDOUBLE SWIVEL RING
MaterialGRADUP STEEL — ZINC PLATED
ThreadUNC (1/4" TO 1-1/4")
Rotation360° BAIL + 180° RING SWIVEL
Safety Factor5 : 1 (4:1 ALSO RATED — SEE TABLE)
TraceabilityCODITRACER ENABLED / INDIVIDUAL CERT
CertificationsCE / ISO 9001 / ISO 14001 / ISO 27001
OriginMADE IN LUXEMBOURG — CODIPRO

Working Load Limits by Thread Size

Reference Thread WLL 5:1 (lb) WLL 4:1 (lb) Weight (lb)
DSR U 025 UP UNC 1/4"-20 330 450 0.66
DSR U 516 UP UNC 5/16"-18 1,000 1,200 0.66
DSR U 038 UP UNC 3/8"-16 1,300 1,600 0.66
DSR U 050 UP UNC 1/2"-13 2,400 2,800 0.66
DSR U 058 UP UNC 5/8"-11 3,900 4,900 1.98
DSR U 075 UP UNC 3/4"-10 5,250 5,250 1.98
DSR U 078 UP UNC 7/8"-9 7,900 9,800 5.51
DSR U 100 UP UNC 1"-8 11,200 12,500 5.73
DSR U 118 UP UNC 1-1/8"-7 11,500 13,000 5.73
DSR U 125 UP UNC 1-1/4"-7 13,500 13,500 5.95
⚠

Never exceed the rated Working Load Limit. Always torque to the specified value before use. Always follow applicable domestic safety regulations. Inspect before every use — remove from service if deformed, cracked, or damaged.

CE │ ISO 9001 │ ISO 14001 │ 360° + 180° SWIVEL │ CODITRACER Codipro Made in Luxembourg
