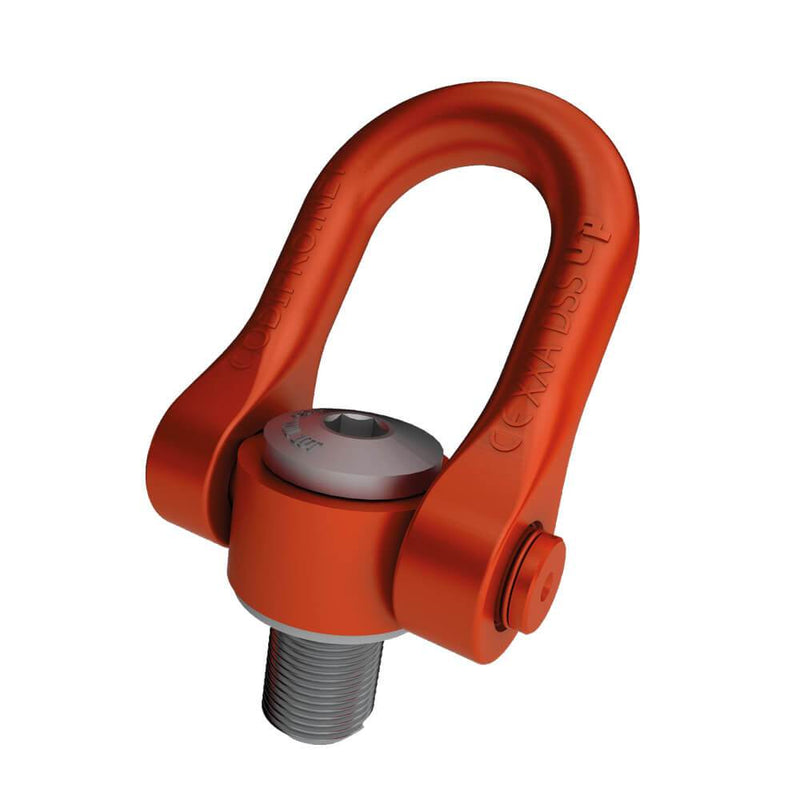

Codipro DSS 2-1/2"-4 UNC Double Swivel Shackle – 55,000 lb WLL – DSS U 250 UP
SKU DSS U 250 UP
$1,699.28
Returns need our approval first. Return policy
Use it with
Green Pin 1-3/4" Bolt Type Shackle – 55,110 lb (25 tonnes) WLL – GPGHMB45$385.70
Liftgear LERS12 Endless Round Sling, OliveWLL 66,000 lb$133.22
Green Pin P-6703A Swivel Hoist Hook with Safety Latch – 69,440 lb (31.5 tonnes) WLL – HKK03A300$5,701.02
Green Pin 1-3/4" Spring Release ROV Shackle – 55,110 lb (25 tonnes) WLL – POGHMB45ROVSRL$6,465.46
Details
The Codipro DSS is a universal double swivel shackle specially designed for simultaneously lifting and rotating loads. Where the DSR uses a ring bail, the DSS features a shackle-style bow — providing a wider throat opening for attaching to slings, hooks, and rigging hardware in complex lifting arrangements. Its double swivel action (360° rotation + 180° shackle swivel) keeps the connection perfectly aligned with the sling under load. Built from GRADUP steel and zinc plated, each unit ships with a user manual and individual certificate of compliance.
- Double swivel — 360° rotation & 180° shackle swivel
- Shackle bow design — wider throat for slings, hooks & rigging hardware
- GRADUP steel — engineered specifically for lifting applications
- Ideal for simultaneously lifting and rotating loads
- Coditracer enabled for asset traceability
- Supplied with user manual and individual certificate
- ISO 9001, ISO 14001 & ISO 27001 certified
- CE marked
Working Load Limits by Thread Size
| Reference | Thread | WLL 5:1 (lb) | WLL 4:1 (lb) | Weight (lb) |
|---|---|---|---|---|
| DSS U 100 UP | UNC 1"-8 | 10,000 | 13,000 | 11.90 |
| DSS U 125 UP | UNC 1-1/4"-7 | 15,000 | 19,000 | 11.90 |
| DSS U 138 UP | UNC 1-3/8"-6 | 21,000 | 22,000 | 11.90 |
| DSS U 150 UP | UNC 1-1/2"-6 | 22,000 | 27,000 | 11.90 |
| DSS U 175 UP | UNC 1-3/4"-5 | 27,000 | 33,000 | 13.01 |
| DSS U 200 UP | UNC 2"-4.5 | 38,000 | 50,000 | 24.47 |
| DSS U 250 UP | UNC 2-1/2"-4 | 48,500 | 55,000 | 26.90 |
Never exceed the rated Working Load Limit. Always torque to the specified value before use. Always follow applicable domestic safety regulations. Inspect before every use — remove from service if deformed, cracked, or damaged.
