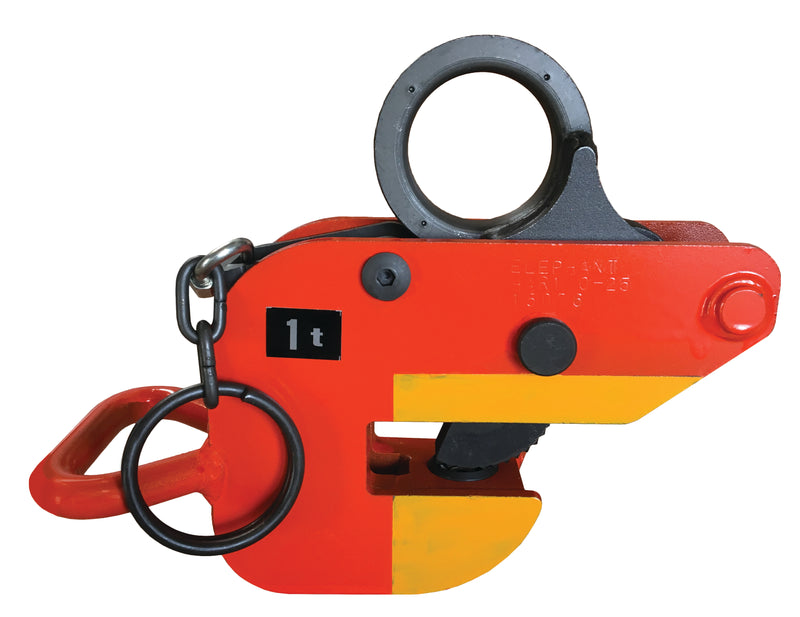

Elephant Horizontal Type Plate Clamp - HAR Series
SKU: HAR-0.5
$861.00
View Details
Order Sheet
| SKU | WLL | Price | Qty | |
|---|---|---|---|---|
| HAR-0.5 | 0.5 t | $861.00 |
|
|
| HAR-1 | 1 t | $1,039.00 |
|
|
| HAR-2 | 2 t | $1,480.00 |
|
|
| HAR-3 | 3 t | $1,858.00 |
|
|
| HAR-5 | 5 t | $2,257.00 |
|
HAR-0.5
$861.00
HAR-1
$1,039.00
HAR-2
$1,480.00
HAR-3
$1,858.00
HAR-5
$2,257.00
Capacity Range0.5–5 T
Safety Factor5:1
OrientationHORIZONTAL
ELEPHANT LIFTING — HORIZONTAL TYPE PLATE CLAMP · HAR SERIES · 0.5 T – 5 T · JAPAN · DESIGN FACTOR 5:1
The Elephant Horizontal Type Plate Clamp (HAR Series) is a horizontal-lift plate clamp designed for lifting steel plate from a horizontal position. A cam-action locking jaw grips the plate as load is applied, with a safety lock to prevent accidental release during transport.
- Horizontal plate lifting — pair for safe plate transport
- Cam-action jaw — grip increases with applied load
- Safety lock prevents accidental release
- Capacity range: 0.5 t – 5 t
- Design factor: 5:1 · Made in Japan
SeriesHAR SERIES
TypePLATE CLAMP
Capacity Range0.5 T — 5 T
Design Factor5:1
Country of OriginJAPAN
HS Code8431.10.0090
Model Lineup — 5 Variants
| Part Number | WLL | Plate Thickness | Ship Weight | LTL |
|---|---|---|---|---|
| HAR-0.5 | 0.5 T | 0.0" – 0.86" | 9 LB | — |
| HAR-1 | 1 T | 0.0" – 0.98" | 16 LB | — |
| HAR-2 | 2 T | 0.0" – 1.4" | 24 LB | — |
| HAR-3 | 3 T | 0.0" – 1.57" | 33 LB | — |
| HAR-5 | 5 T | 0.0" – 1.77" | 46 LB | — |
⚠
Always use plate clamps in pairs for horizontal lifts to maintain load balance. Never exceed the rated WLL. Inspect jaw teeth, cam, safety lock, and body before every lift. Remove from service if jaw teeth are worn, the cam spring is weak, or the safety lock fails to engage.
ASME B30.20 · DESIGN FACTOR 5:1 · HS 8431.10.0090Elephant LiftingPlate Clamp — Horizontal Type Plate Clamp
