Order Sheet
| SKU | WLL | Lift | Price | Qty | |
|---|---|---|---|---|---|
| YA-80-5 | 80 t | 5' | $704.00 |
|
|
| YA-80-10 | 80 t | 10' | $756.00 |
|
|
| YA-80-15 | 80 t | 15' | $822.00 |
|
|
| YA-80-20 | 80 t | 20' | $889.00 |
|
|
| YA-100-5 | 1 t | 5' | $737.00 |
|
|
| YA-100-10 | 1 t | 10' | $805.00 |
|
|
| YA-100-15 | 1 t | 15' | $871.00 |
|
|
| YA-100-20 | 1 t | 20' | $942.00 |
|
|
| YA-160-5 | 1.6 t | 5' | $859.00 |
|
|
| YA-160-10 | 1.6 t | 10' | $953.00 |
|
|
| YA-160-15 | 1.6 t | 15' | $1,050.00 |
|
|
| YA-160-20 | 1.6 t | 20' | $1,148.00 |
|
|
| YA-320-5 | 3.2 t | 5' | $1,235.00 |
|
|
| YA-320-10 | 3.2 t | 10' | $1,370.00 |
|
|
| YA-320-15 | 3.2 t | 15' | $1,506.00 |
|
|
| YA-320-20 | 3.2 t | 20' | $1,641.00 |
|
|
| YA-630-5 | 6.3 t | 5' | $2,256.00 |
|
|
| YA-630-10 | 6.3 t | 10' | $2,525.00 |
|
|
| YA-630-15 | 6.3 t | 15' | $2,795.00 |
|
|
| YA-630-20 | 6.3 t | 20' | $3,068.00 |
|
|
| YA-900-5 | 9 t | 5' | $2,742.00 |
|
|
| YA-900-10 | 9 t | 10' | $3,100.00 |
|
|
| YA-900-15 | 9 t | 15' | $3,457.00 |
|
|
| YA-900-20 | 9 t | 20' | $4,055.00 |
|
|
| YA-1200-5 | 12 t | 5' | $5,132.00 |
|
|
| YA-1200-10 | 12 t | 10' | $5,658.00 |
|

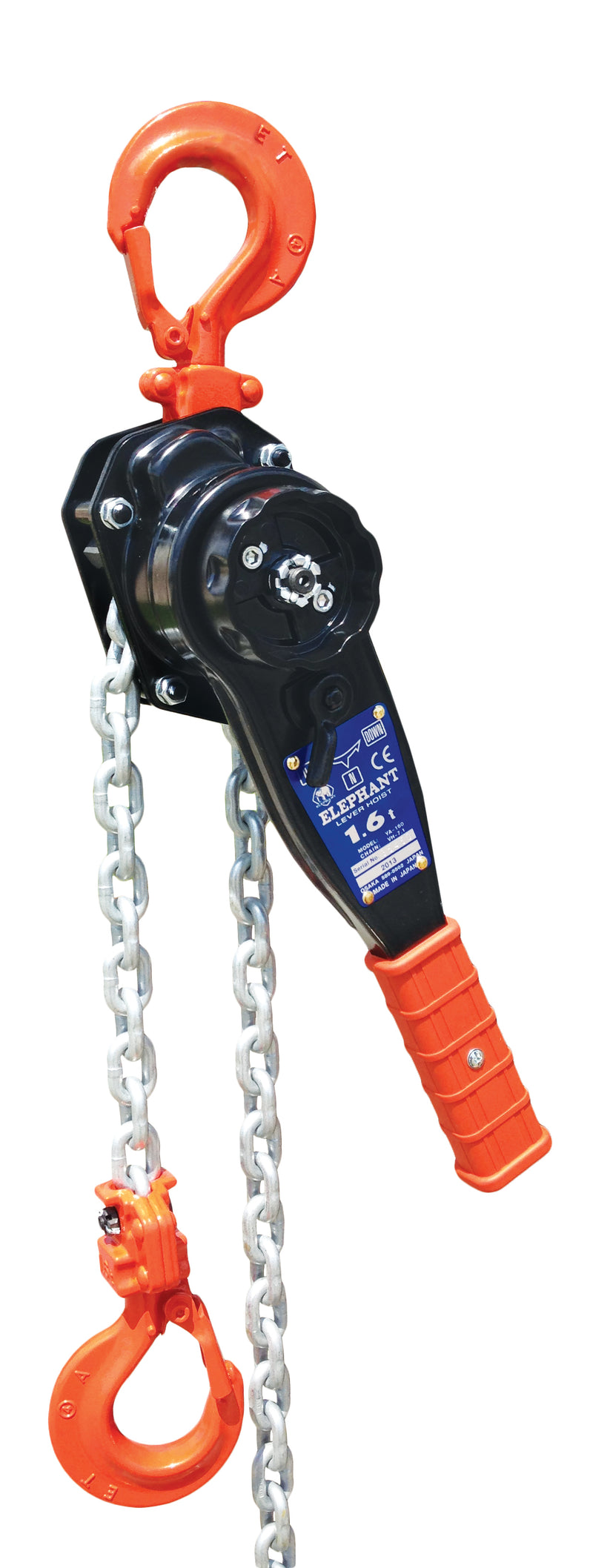

The Elephant Lever Hoist (YA Series) is the industry-standard YA lever hoist built in Japan. Forged steel hooks with safety latches, grade 80 or 100 alloy load chain, and a robust ratchet-and-pawl mechanism deliver reliable pulling, tensioning, and lifting in demanding applications.
- YA lever hoist — Japan-made, industrial-grade
- Forged steel hooks with safety latches
- Grade 80/100 alloy load chain
- Capacity range: 1 t – 80 t
- Design factor: 4:1 · ASME B30.21
Model Lineup — 26 Variants
| Part Number | WLL | Lift Height | Ship Weight | LTL |
|---|---|---|---|---|
| YA-80-5 | 80 T | 5' | 15 LB | — |
| YA-80-10 | 80 T | 10' | 17 LB | — |
| YA-80-15 | 80 T | 15' | 19 LB | — |
| YA-80-20 | 80 T | 20' | 22 LB | — |
| YA-100-5 | 1 T | 5' | 15 LB | — |
| YA-100-10 | 1 T | 10' | 17 LB | — |
| YA-100-15 | 1 T | 15' | 19 LB | — |
| YA-100-20 | 1 T | 20' | 22 LB | — |
| YA-160-5 | 1.6 T | 5' | 22 LB | — |
| YA-160-10 | 1.6 T | 10' | 26 LB | — |
| YA-160-15 | 1.6 T | 15' | 30 LB | — |
| YA-160-20 | 1.6 T | 20' | 33 LB | — |
| YA-320-5 | 3.2 T | 5' | 37 LB | — |
| YA-320-10 | 3.2 T | 10' | 44 LB | — |
| YA-320-15 | 3.2 T | 15' | 48 LB | — |
| YA-320-20 | 3.2 T | 20' | 54 LB | — |
| YA-630-5 | 6.3 T | 5' | 62 LB | — |
| YA-630-10 | 6.3 T | 10' | 74 LB | — |
| YA-630-15 | 6.3 T | 15' | 86 LB | — |
| YA-630-20 | 6.3 T | 20' | 97 LB | LTL (PREFERRED; ADD 25 LB PALLET) |
| YA-900-5 | 9 T | 5' | 140 LB | LTL |
| YA-900-10 | 9 T | 10' | 145 LB | LTL |
| YA-900-15 | 9 T | 15' | 160 LB | LTL |
| YA-900-20 | 9 T | 20' | 185 LB | LTL |
| YA-1200-5 | 12 T | 5' | 170 LB | LTL |
| YA-1200-10 | 12 T | 10' | 190 LB | LTL |
Never exceed the rated capacity — verify WLL and lever travel before use. Inspect hook latches, load chain, lever, and ratchet mechanism before every use. Do not use if the chain is twisted, kinked, or stretched. Ensure anchor and load points are rated. Never use a cheater bar or extension on the lever. Remove from service if the ratchet skips, the brake fails to hold, or any component shows visible damage. Larger capacities ship LTL freight — confirm delivery address accepts LTL before ordering.
