Order Sheet
| SKU | WLL | Lift | Price | Qty | |
|---|---|---|---|---|---|
| C21-0.5-10 | 0.5 t | 10' | $380.00 |
|
|
| C21-0.5-15 | 0.5 t | 15' | $495.00 |
|
|
| C21-0.5-20 | 0.5 t | 20' | $617.00 |
|
|
| C21-1-10 | 1 t | 10' | $439.00 |
|
|
| C21-1-15 | 1 t | 15' | $553.00 |
|
|
| C21-1-20 | 1 t | 20' | $670.00 |
|
|
| C21-1-30 | 1 t | 30' | $903.00 |
|
|
| C21-1-40 | 1 t | 40' | $1,328.00 |
|
|
| C21-1-50 | 1 t | 50' | $1,623.00 |
|
|
| C21-1.5-10 | 1.5 t | 10' | $656.00 |
|
|
| C21-1.5-15 | 1.5 t | 15' | $780.00 |
|
|
| C21-1.5-20 | 1.5 t | 20' | $903.00 |
|
|
| C21-1.5-30 | 1.5 t | 30' | $1,182.00 |
|
|
| C21-2-10 | 2 t | 10' | $763.00 |
|
|
| C21-2-15 | 2 t | 15' | $907.00 |
|
|
| C21-2-20 | 2 t | 20' | $1,045.00 |
|
|
| C21-2-30 | 2 t | 30' | $1,330.00 |
|
|
| C21-2-40 | 2 t | 40' | $1,613.00 |
|
|
| C21-3-10 | 3 t | 10' | $1,224.00 |
|
|
| C21-3-15 | 3 t | 15' | $1,446.00 |
|
|
| C21-3-20 | 3 t | 20' | $1,668.00 |
|
|
| C21-3-30 | 3 t | 30' | $2,116.00 |
|
|
| C21-5-10 | 5 t | 10' | $1,860.00 |
|
|
| C21-5-15 | 5 t | 15' | $2,240.00 |
|
|
| C21-5-20 | 5 t | 20' | $2,622.00 |
|
|
| C21-5-30 | 5 t | 30' | $3,378.00 |
|

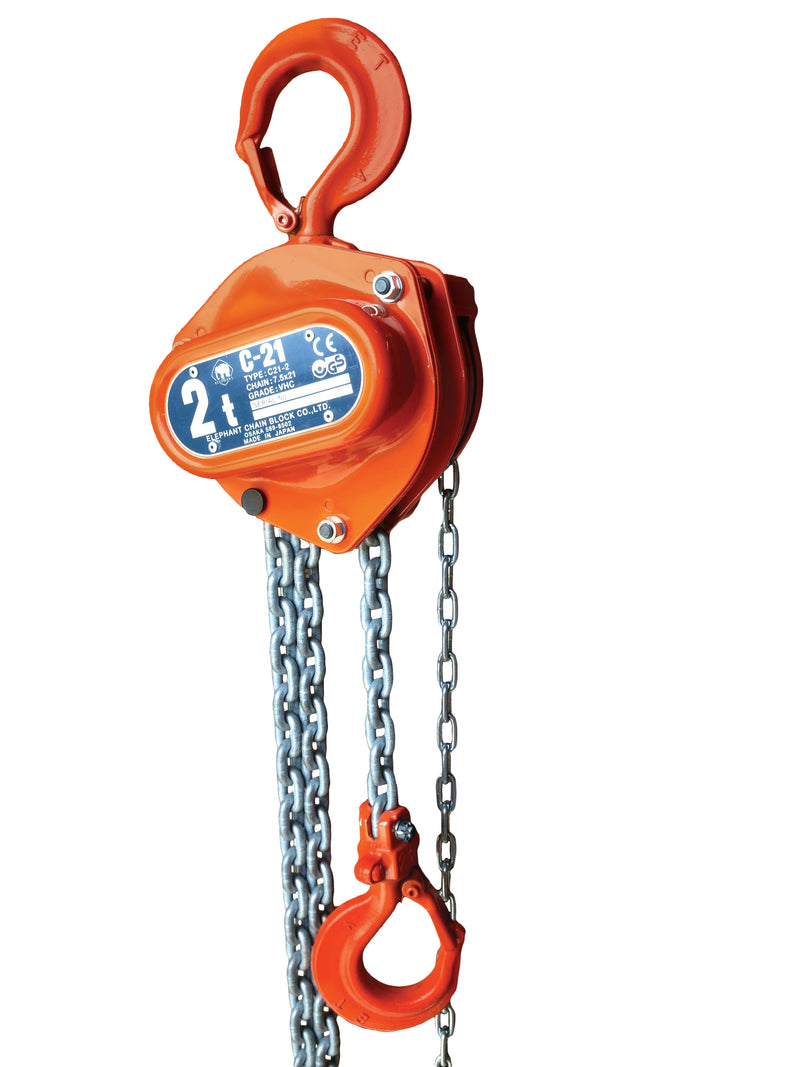

The Elephant Manual Hand Chain Hoist (C21 Series) is a manual hand chain hoist built in Japan for industrial lifting. Double-pawl load brake, forged steel hooks with safety latches, and grade 100 load chain deliver reliable performance across a wide capacity range.
- Japan-made manual hand chain hoist
- Forged steel hooks with safety latches
- Grade 100 alloy load chain
- Capacity range: 0.5 t – 5 t
- Design factor: 4:1 · ASME B30.16
Model Lineup — 26 Variants
| Part Number | WLL | Lift Height | Ship Weight | LTL |
|---|---|---|---|---|
| C21-0.5-10 | 0.5 T | 10' | 15 LB | — |
| C21-0.5-15 | 0.5 T | 15' | 19 LB | — |
| C21-0.5-20 | 0.5 T | 20' | 23 LB | — |
| C21-1-10 | 1 T | 10' | 22 LB | — |
| C21-1-15 | 1 T | 15' | 27 LB | — |
| C21-1-20 | 1 T | 20' | 32 LB | — |
| C21-1-30 | 1 T | 30' | 42 LB | — |
| C21-1-40 | 1 T | 40' | 52 LB | — |
| C21-1-50 | 1 T | 50' | 64 LB | — |
| C21-1.5-10 | 1.5 T | 10' | 28 LB | — |
| C21-1.5-15 | 1.5 T | 15' | 34 LB | — |
| C21-1.5-20 | 1.5 T | 20' | 40 LB | — |
| C21-1.5-30 | 1.5 T | 30' | 52 LB | — |
| C21-2-10 | 2 T | 10' | 37 LB | — |
| C21-2-15 | 2 T | 15' | 44 LB | — |
| C21-2-20 | 2 T | 20' | 52 LB | — |
| C21-2-30 | 2 T | 30' | 65 LB | — |
| C21-2-40 | 2 T | 40' | 79 LB | — |
| C21-3-10 | 3 T | 10' | 43 LB | — |
| C21-3-15 | 3 T | 15' | 52 LB | — |
| C21-3-20 | 3 T | 20' | 61 LB | — |
| C21-3-30 | 3 T | 30' | 79 LB | — |
| C21-5-10 | 5 T | 10' | 79 LB | — |
| C21-5-15 | 5 T | 15' | 94 LB | — |
| C21-5-20 | 5 T | 20' | 109 LB | LTL (PREFERRED; ADD 25 LB PALLET) |
| C21-5-30 | 5 T | 30' | 156 LB | LTL |
Never exceed the rated capacity — verify WLL and lift height before each use. Inspect hook latches, load chain, hand chain, and hoist body before every lift. Do not use if the chain is twisted, kinked, stretched, or shows wear. Ensure the suspension point is rated for the applied load. Remove from service if the brake does not hold the load or any component shows visible damage. Larger capacities ship LTL freight — confirm delivery address accepts LTL before ordering.
