Elephant Lifting

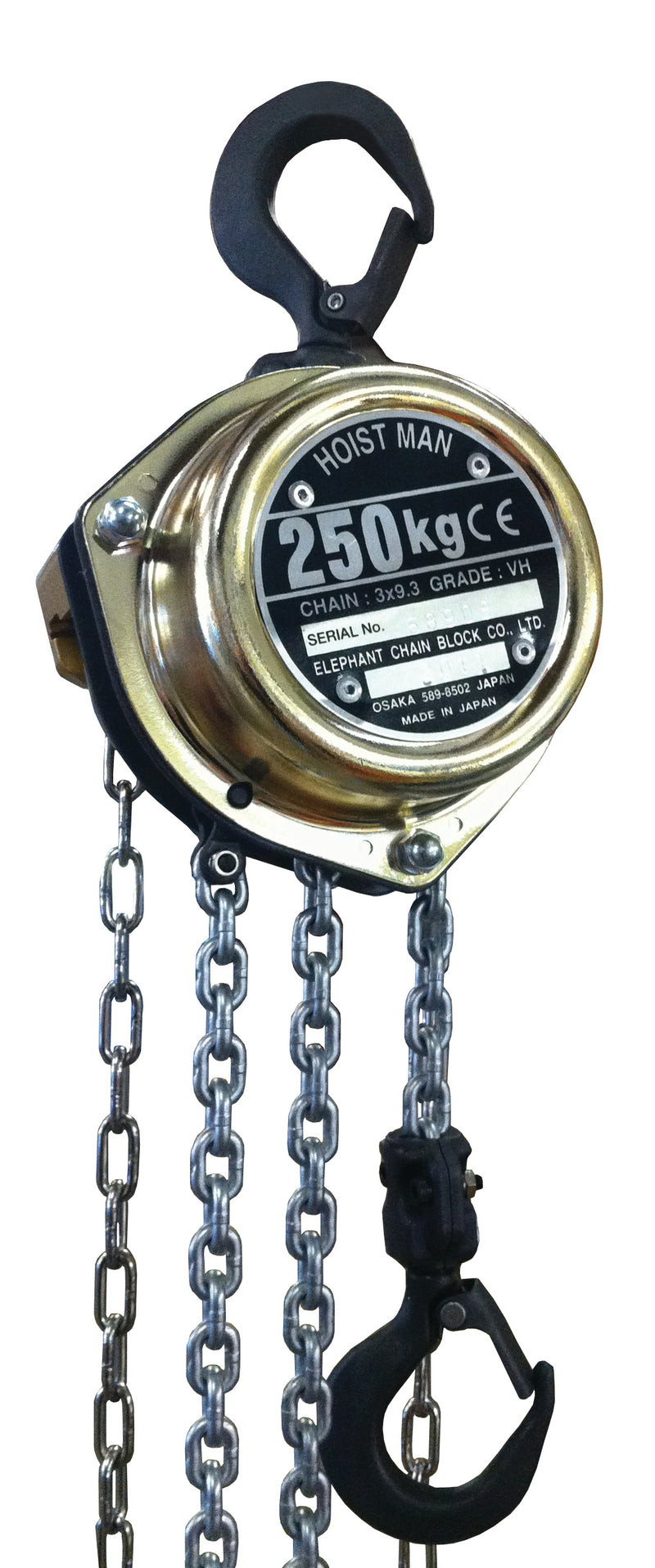

Elephant Mini Hoistman Hand Chain Hoist - HM Series
SKU: HM-150-10
$497.00
View Details
Order Sheet
| SKU | WLL | Lift | Price | Qty | |
|---|---|---|---|---|---|
| HM-150-10 | 0.15 t | 10' | $497.00 |
|
|
| HM-250-10 | 0.25 t | 10' | $497.00 |
|
|
| HM-250-20 | 0.25 t | 20' | $638.00 |
|
HM-150-10
$497.00
HM-250-10
$497.00
HM-250-20
$638.00
Capacity Range0.15–0.25 T
Safety Factor4:1
Lift Range10' – 20'
ELEPHANT LIFTING — MINI HOISTMAN HAND CHAIN HOIST · HM SERIES · 0.15 T – 0.25 T · JAPAN · DESIGN FACTOR 4:1
The Elephant Mini Hoistman Hand Chain Hoist (HM Series) is a compact mini Hoistman hand chain hoist for tight-space lifting. Lightweight aluminum body with Japan-made components — ideal for fabrication, maintenance, and small-load applications.
- Compact mini Hoistman — tight-space lifting
- Lightweight aluminum body
- Capacity range: 0.15 t – 0.25 t
- Ideal for fabrication and maintenance
- Design factor: 4:1 · Made in Japan
SeriesHM SERIES
TypeHAND CHAIN HOIST
Capacity Range0.15 T — 0.25 T
Design Factor4:1
Country of OriginJAPAN
HS Code8425.39.0100
Model Lineup — 3 Variants
| Part Number | WLL | Lift Height | Ship Weight | LTL |
|---|---|---|---|---|
| HM-150-10 | 0.15 T | 10' | 7 LB | — |
| HM-250-10 | 0.25 T | 10' | 9 LB | — |
| HM-250-20 | 0.25 T | 20' | 10 LB | — |
⚠
Never exceed the rated capacity — verify WLL and lift height before each use. Inspect hook latches, load chain, hand chain, and hoist body before every lift. Do not use if the chain is twisted, kinked, stretched, or shows wear. Ensure the suspension point is rated for the applied load. Remove from service if the brake does not hold the load or any component shows visible damage.
ASME B30.16 · DESIGN FACTOR 4:1 · HS 8425.39.0100Elephant LiftingHand Chain Hoist — Mini Hoistman Hand Chain Hoist
