Order Sheet
| SKU | WLL | Lift | Price | Qty | |
|---|---|---|---|---|---|
| YIII-50-5 | 0.5 t | 5' | $596.00 |
|
|
| YIII-50-10 | 0.5 t | 10' | $664.00 |
|
|
| YIII-50-15 | 0.5 t | 15' | $745.00 |
|
|
| YIII-50-20 | 0.5 t | 20' | $806.00 |
|
YIII-50-5
$596.00
YIII-50-10
$664.00
YIII-50-15
$745.00
YIII-50-20
$806.00
Capacity Range0.5 T
Safety Factor4:1
Lift Range5' – 20'

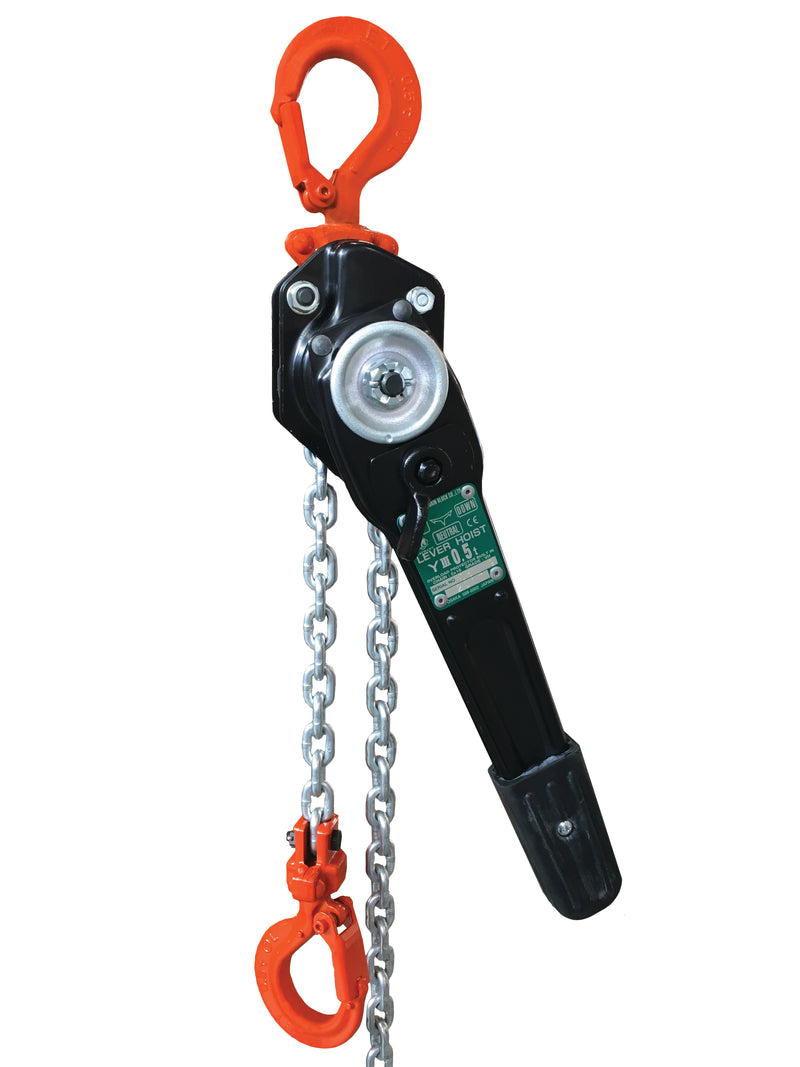

ELEPHANT LIFTING — MINI LEVER HOIST · YIII SERIES · 0.5 T · JAPAN · DESIGN FACTOR 4:1
The Elephant Mini Lever Hoist (YIII Series) is the YIII mini lever hoist with built-in overload protection. 500 kg capacity in a compact Japanese body — overload clutch slips at rated load to prevent damage during tensioning operations.
- YIII mini lever hoist — 500 kg capacity
- Integrated overload protection clutch
- Forged steel hooks with safety latches
- Lift options: up to 0.5 t
- Design factor: 4:1 · Made in Japan
SeriesYIII SERIES
TypeLEVER HOIST
Capacity0.5 T
Design Factor4:1
Country of OriginJAPAN
HS Code8425.39.0100
Model Lineup — 4 Variants
| Part Number | WLL | Lift Height | Ship Weight | LTL |
|---|---|---|---|---|
| YIII-50-5 | 0.5 T | 5' | 9 LB | — |
| YIII-50-10 | 0.5 T | 10' | 11 LB | — |
| YIII-50-15 | 0.5 T | 15' | 13 LB | — |
| YIII-50-20 | 0.5 T | 20' | 15 LB | — |
⚠
Never exceed the rated capacity — verify WLL and lever travel before use. Inspect hook latches, load chain, lever, and ratchet mechanism before every use. Do not use if the chain is twisted, kinked, or stretched. Ensure anchor and load points are rated. Never use a cheater bar or extension on the lever. Remove from service if the ratchet skips, the brake fails to hold, or any component shows visible damage.
ASME B30.21 · DESIGN FACTOR 4:1 · HS 8425.39.0100Elephant LiftingLever Hoist — Mini Lever Hoist
