Order Sheet
| SKU | WLL | Price | Qty | |
|---|---|---|---|---|
| VA-05 | 0.5 t | $822.00 |
|
|
| VA-1 | 1 t | $1,098.00 |
|
|
| VA-2 | 2 t | $1,567.00 |
|
|
| VA-3 | 3 t | $1,776.00 |
|
|
| VA-5 | 5 t | $2,323.00 |
|
VA-05
$822.00
VA-1
$1,098.00
VA-2
$1,567.00
VA-3
$1,776.00
VA-5
$2,323.00
Capacity Range0.5–5 T
Safety Factor5:1
OrientationVERTICAL
ELEPHANT LIFTING — VERTICAL TYPE PLATE CLAMP · VA SERIES · 0.5 T – 5 T · JAPAN · DESIGN FACTOR 5:1

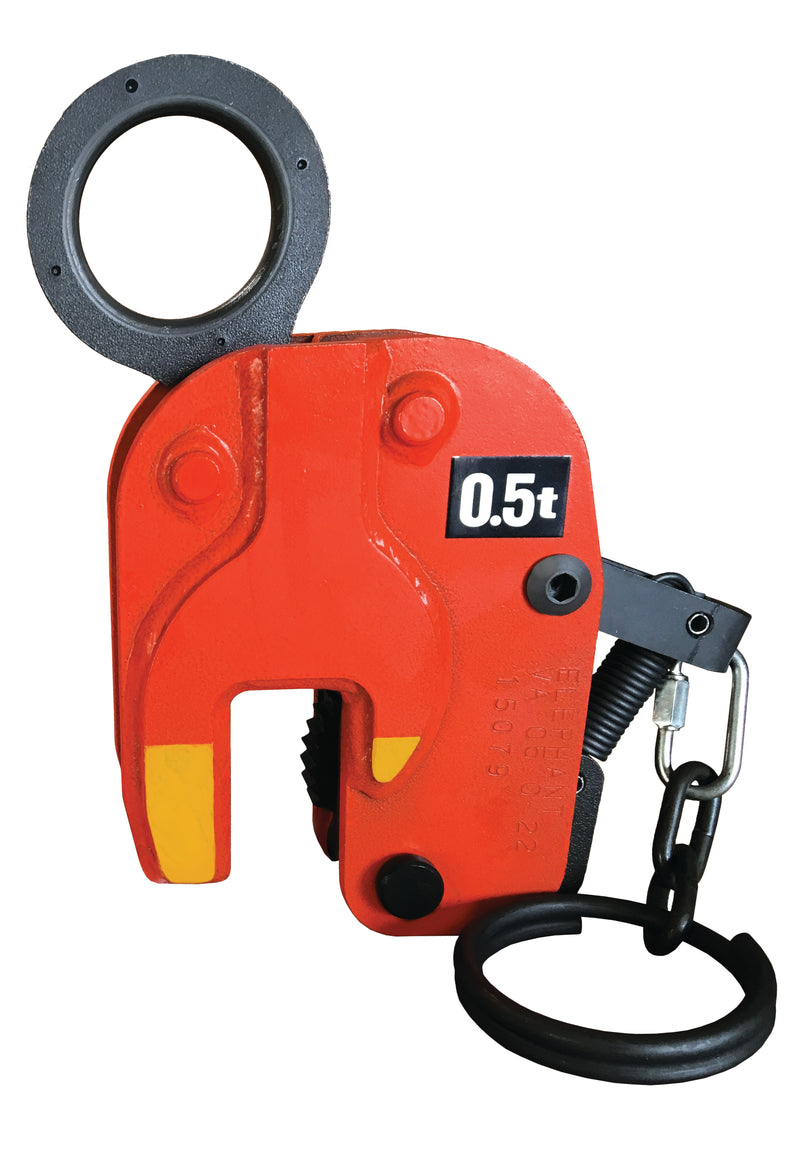

The Elephant Vertical Type Plate Clamp (VA Series) is a vertical-lift plate clamp (VA type) designed for lifting steel plate vertically. Spring-loaded cam action grips the plate as load is applied, with a manual safety lock for secure handling.
- Vertical plate lifting — single-point lift of plate material
- Spring-loaded cam jaw — self-locking under load
- Manual safety lock for secure handling
- Capacity range: 0.5 t – 5 t
- Design factor: 5:1 · Made in Japan
SeriesVA SERIES
TypePLATE CLAMP
Capacity Range0.5 T — 5 T
Design Factor5:1
Country of OriginJAPAN
HS Code8431.10.0090
Model Lineup — 5 Variants
| Part Number | WLL | Plate Thickness | Ship Weight | LTL |
|---|---|---|---|---|
| VA-05 | 0.5 T | 0.0" – 0.866" | 7 LB | — |
| VA-1 | 1 T | 0.0" – 0.98" | 13 LB | — |
| VA-2 | 2 T | 0.0" – 1.4" | 19 LB | — |
| VA-3 | 3 T | 0.0" – 1.57" | 32 LB | — |
| VA-5 | 5 T | 0.0" – 1.96" | 48 LB | — |
⚠
Verify plate thickness is within the clamp's rated range before lifting. Never exceed the rated WLL. Inspect jaw teeth, cam, safety lock, and body before every lift. Remove from service if jaw teeth are worn, the cam spring is weak, or the safety lock fails to engage.
ASME B30.20 · DESIGN FACTOR 5:1 · HS 8431.10.0090Elephant LiftingPlate Clamp — Vertical Type Plate Clamp
