Image may not match exactly. Refer to the specs.
Schematic

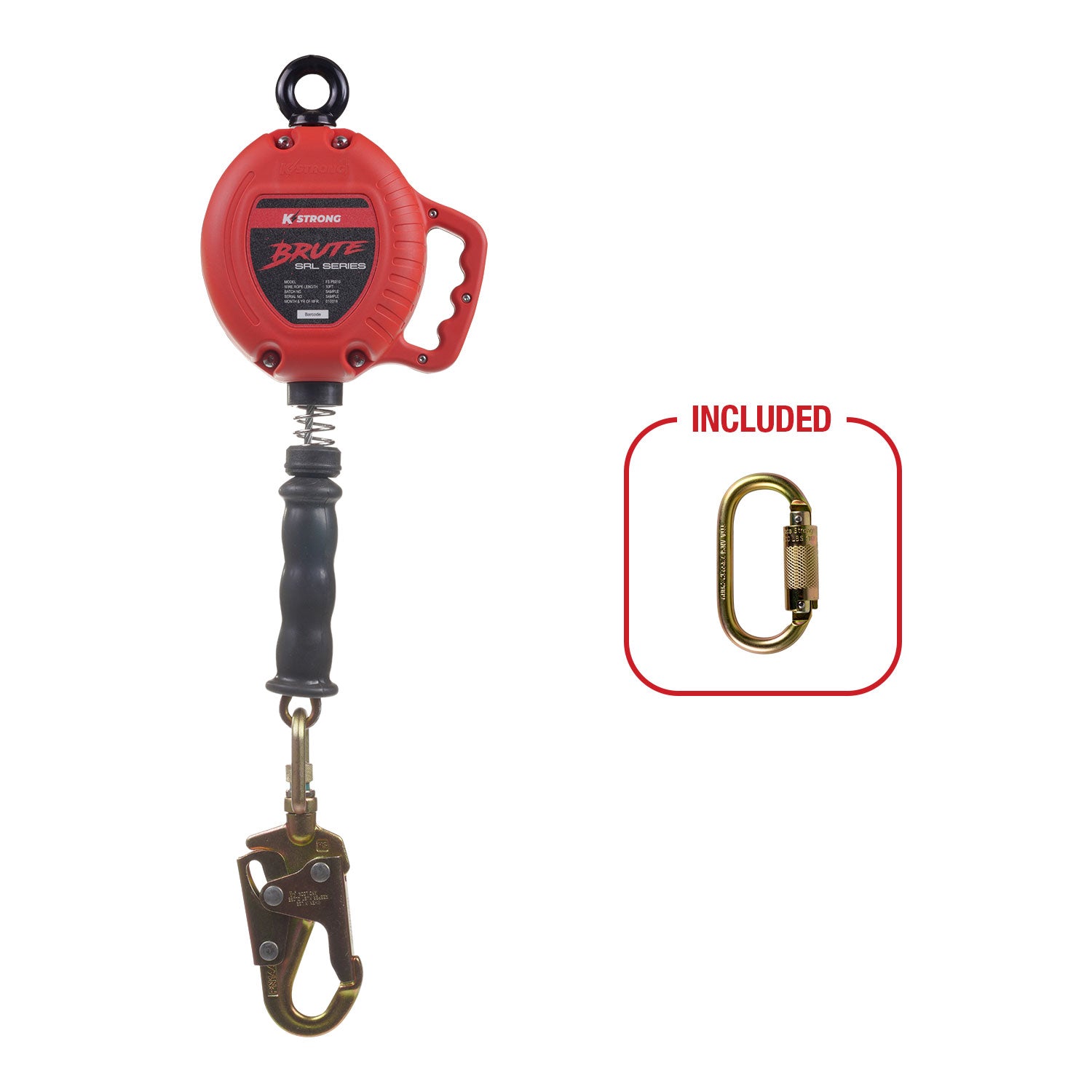

KStrong BRUTE 10 ft Cable SRL with Snap Hook, Includes Installation Carabiner (ANSI) – UFS310010
SKU UFS310010
$266.00
Use it with
Green Pin 1" Bolt Type Shackle – 18,730 lb (8.5 tonnes) WLL – GPGHMB25$82.68
Liftgear LERS5 Endless Round Sling, Red13,200 lb WLL$24.72
Green Pin P-6703A Swivel Hoist Hook with Safety Latch – 11,900 lb (5.4 tonnes) WLL – HKK03A054$145.62
CM Super Strong 1/2" Screw Pin Anchor Shackle – 6,000 lb WLL – M650G$24.10
Details
KStrong® BRUTE™ 10′ Galvanized Wire Cable SRL with High Impact Strength Polymer Housing with Built-in Handle, swivel eye at anchorage end, other end with load indicator swivel snap hook. Includes one (1) installation carabiner (ANSI) - UFS310010
DESIGN:
• Robust & durable plastic casing
• Has anchorage handle at anchorage end
• Steel swivel hook at retractable end (Our ref. PN 144 as per ANSI
Z359.12-2009 gate strength 3600 lbs. (1633 kg))
• Galvanized steel wire rope (option of having S.S. wire rope available)
LENGTH:
10 ft.
CABLE:
Material : Galvanized steel wire rope Ø3/16 inches
Minimum Breaking strength : 3400 lbs. (1542 kg)
WEIGHT:
5.55 lbs. ± 0.22 lbs. (2517 gm ± 100 gm)
USER CAPACITY:
ANSI User Capacity: 310 lbs. Max.
OSHA User Capacity: 400 lbs. Max
RELEVANT STANDARDS:
Meets or Exceeds ANSI Z359.14-2021 Class 1
