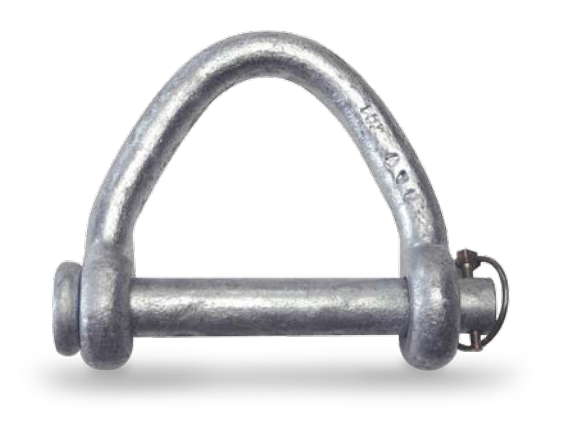

CM 5" Carbon Round Pin Web Sling Shackle – 18,000 lb WLL – M705
SKU M705
$154.88
Use it with
Details
Working Load Limit 9 TON
Factor 4:1
Webbing 5"
CM Carbon Web Sling Shackles connect synthetic web slings to hooks, links and other lifting hardware. The sling rides on a long, straight pin sized to the webbing width, so the sling lies flat and loads the whole pin instead of bunching in a narrow bow. This shackle fits 5" webbing and is rated 18,000 lb (9 ton).
- Heat treated carbon steel body, heat treated alloy steel pin
- Hot dip galvanized finish
- Zinc-plated linch pin standard; cotter or hairpin on special order
- 4:1 design factor
- Fits web slings from 2" to 6" wide
- Made in the USA
Pin TypeROUND PIN, LINCH PIN RETAINED
Fits Webbing5" WIDE
MaterialHEAT TREATED CARBON STEEL BODY; HEAT TREATED ALLOY STEEL PIN
FinishHOT DIP GALVANIZED
Design Factor4 : 1
Size Range2" — 6"
WLL Range4 TON — 11-3/4 TON
Made InUSA
Product CodeM705
Replacement Pin2X705
Linch Pin5511
Working Load Limits & Dimensions by Size
| Webbing (in) | WLL (ton) | WLL (lb) | P (in) | D (in) | L (in) | W (in) | R (in) | Weight (lb) | Product # |
|---|---|---|---|---|---|---|---|---|---|
| 2 | 4 | 8,000 | 0.75 | 0.63 | 2.25 | 2.00 | 1.63 | 1.70 | M702 |
| 3 | 6-1/2 | 13,000 | 0.88 | 0.75 | 3.25 | 3.00 | 1.88 | 2.86 | M703 |
| 4 | 5-1/2 | 11,000 | 0.88 | 0.75 | 3.75 | 4.00 | 1.88 | 3.15 | M704 |
| 5 | 9 | 18,000 | 1.00 | 0.88 | 4.25 | 5.00 | 2.13 | 4.75 | M705 |
| 6 | 9 | 18,000 | 1.13 | 1.00 | 4.75 | 6.00 | 2.38 | 6.75 | M706 |
| 6 | 11-3/4 | 23,500 | 1.25 | 1.13 | 4.75 | 6.00 | 2.63 | 9.80 | M706H |
⚠
Never exceed the rated Working Load Limit. Do not point load: spread the load across the whole pin to reach the full working load limit. Always follow applicable domestic safety regulations. Inspect before every use — remove from service if deformed, worn, or damaged.
4:1 DESIGN FACTOR │ CARBON │ GALVANIZED Liftgear Houston, Texas
