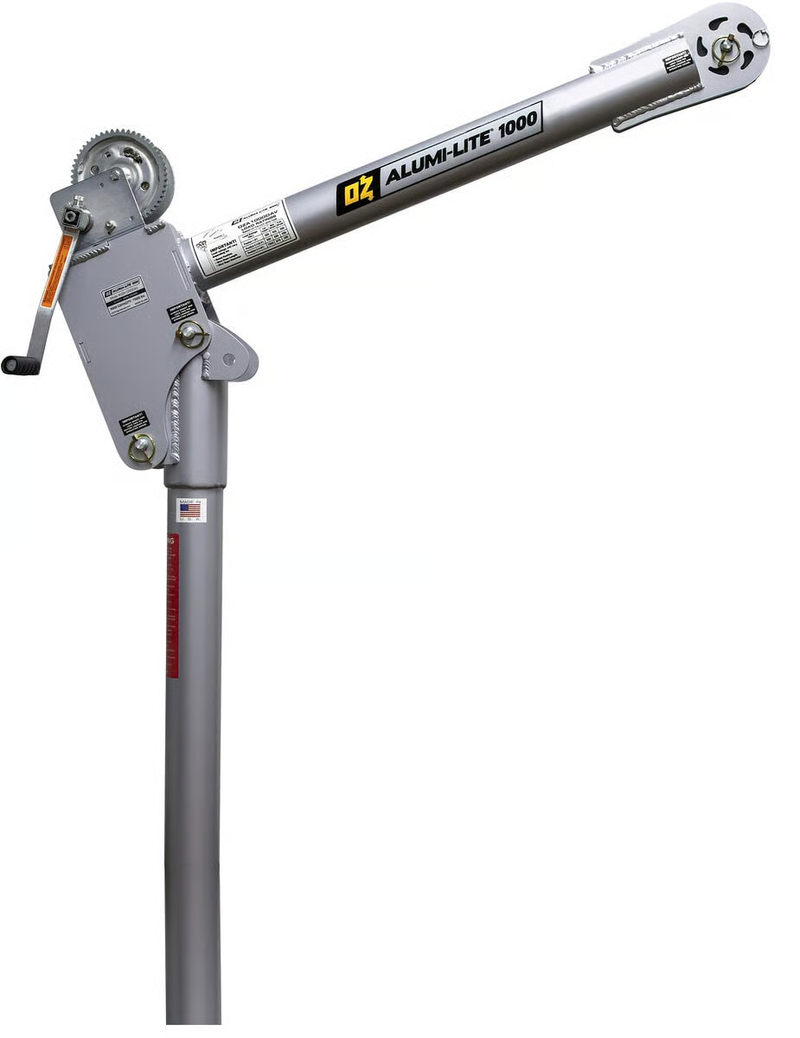

OZ Lifting Alumi-Lite Davit Crane with 2,500 lb Carbon Steel Brake Winch – 1,000 lb WLL – OZA1000DAV-HND2
SKU OZA1000DAV-HND2
$3,320.08
Use it with
OZ Lifting 3/16" Galvanized Cable Assembly, 70 ft Lift, Ball End and Latched Swivel Hook – OZGAL.19-70B$126.08
OZ Lifting Stainless Steel Brake Winch with Drill Drive Adaptor – 1,500 lb WLL – OZ1500BWSS$797.62
CM Super Strong 3/8" Screw Pin Anchor Shackle – 3,000 lb WLL – M648G$17.62
OZ Lifting 5/16" Synthetic Rope Assembly, 45 ft Lift, Latched Swivel Hook – OZSR.31-45$589.88
Details
OZ Lifting davit cranes are portable, base-mounted lifting systems designed for repetitive vertical and horizontal load positioning in industrial, maintenance, and confined space applications. All models rotate 360° and offer multiple adjustable boom positions, allowing operators to position loads precisely without repositioning the base. Four series cover the full range from lightweight aluminum portables to heavy-duty 2,500 lb steel models — with manual, AC electric, and DC electric winch configurations available across the lineup.
- 360° rotation — full horizontal coverage from a fixed base
- 4 adjustable boom positions — dial in reach and hook height without moving the base
- Manual, AC electric, and DC electric winch options available
- Steel, composite, and aerospace-grade aluminum construction options
- 500 lb to 2,500 lb capacity range across the lineup
- Compatible with OZ wire rope and synthetic rope assemblies
- Headache ball, wire rope holder, and winch cover accessories available
Model Lineup
| Model | Series | Capacity | Construction | Reach | Winch Options |
|---|---|---|---|---|---|
| Steel Davit 500 | Steel Davit | 500 lb | Steel | 34.5–42" | Manual / AC / DC |
| Steel Davit 1000 | Steel Davit | 1,000 lb | Steel — zinc plated | 34.5–42" | Manual / AC / DC |
| Steel Davit 2500 | Steel Davit | 2,500 lb | Steel — heavy duty | 39–48" | Manual / AC / DC |
| XR Davit 500 | XR Series | 500 lb | Steel — extended reach | Up to 62" | Manual / AC / DC |
| XR Davit 1000 | XR Series | 1,000 lb | Steel — extended reach | Up to 62" | Manual / AC / DC |
| CompOZite 1200 | CompOZite | 1,200 lb | Composite — ~40% lighter than steel | — | Manual / Optional power |
| Alumi-Lite 500 | Alumi-Lite | 500 lb | Aerospace aluminum | Varies | Manual brake winch |
| Alumi-Lite 1000 | Alumi-Lite | 1,000 lb | Aerospace aluminum | Varies | Manual brake winch |
Never exceed the rated WLL for your specific model. Capacity is determined by the crane model — not the rope or winch. Ensure the base and mounting surface are rated for the applied load before use. Inspect wire rope, hook latch, and all rigging before every lift. Contact Liftgear for model-specific load charts, base options, and installation requirements at liftgear.com/pages/contact or 1-888-R1GGING.
