Codipro

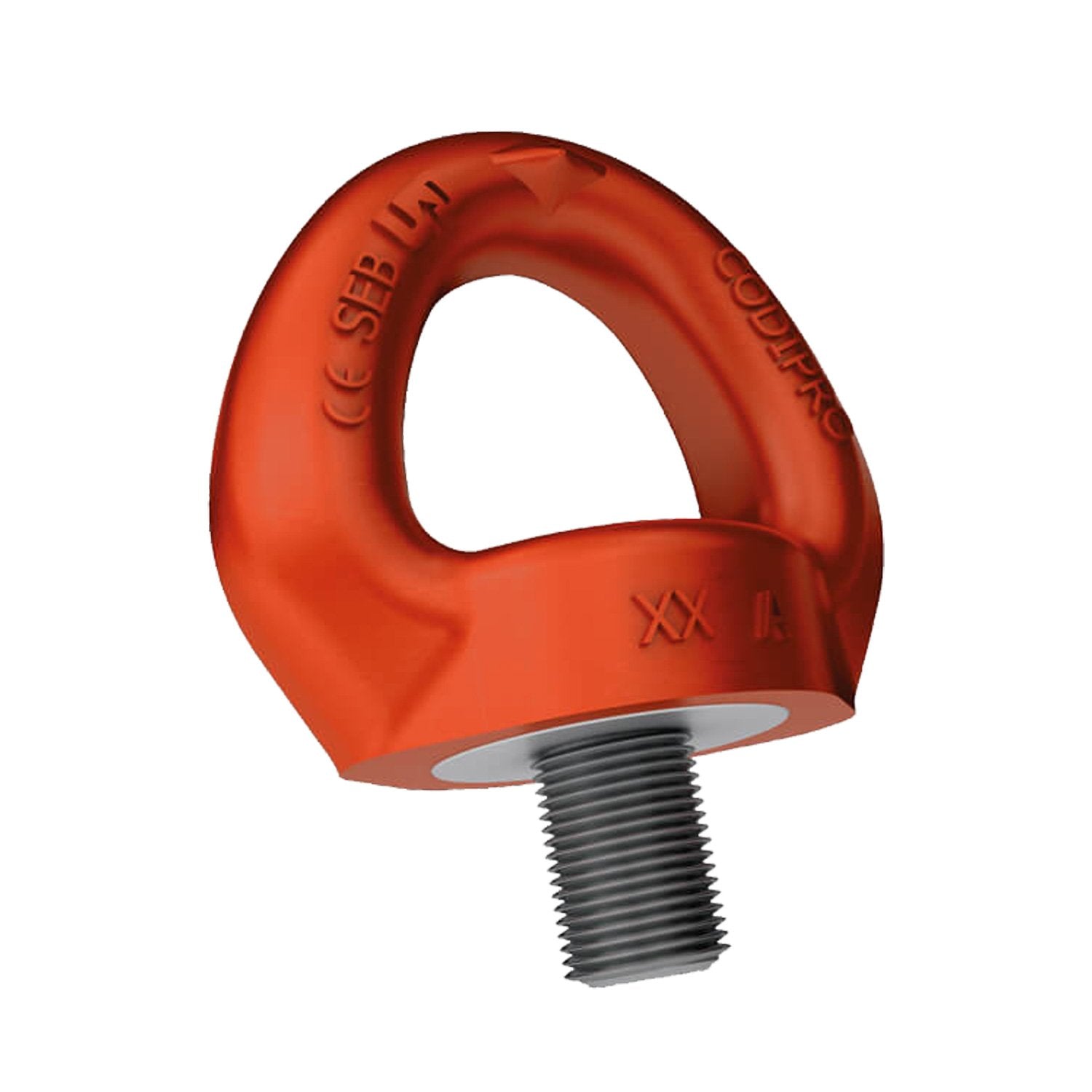

1-1/4"-7 CODIPRO SWIVEL EYE BOLT UNC WLL 13800 LBS - SEB U 125 UP
SKU: SEB U 125 UP
$294.95
View Details
Working Load Limit 13K LB
Swivel 360°
Thread UNC
The Codipro SEB is a single swivel lifting ring equipped with two pins that always guide it perfectly in the direction of the sling — eliminating side loading regardless of pull angle. Built from GRADUP steel specially designed for lifting, the SEB handles rotating loads safely and is available in male (SEB) or female (FE.SEB) versions. Each unit ships with a user manual, certificate, and Coditracer traceability enabled.
- 360° swivel — dual pin guidance always aligns with sling direction
- GRADUP steel — engineered specifically for lifting applications
- Handles rotating and off-angle loads safely
- Available in male (SEB) and female (FE.SEB) versions
- Coditracer enabled for asset traceability
- Supplied with user manual and individual certificate
- ISO 9001, ISO 14001 & ISO 27001 certified
- CE marked
TypeSWIVEL EYE BOLT — SINGLE SWIVEL RING
MaterialGRADUP STEEL — ZINC PLATED
ThreadUNC (3/8" TO 2")
Swivel Range360°
Safety Factor5 : 1 (4:1 ALSO RATED — SEE TABLE)
TraceabilityCODITRACER ENABLED / INDIVIDUAL CERT
CertificationsCE / ISO 9001 / ISO 14001 / ISO 27001
OriginMADE IN LUXEMBOURG — CODIPRO
Working Load Limits by Thread Size
| Reference | Thread | WLL 5:1 (lb) | WLL 4:1 (lb) | Weight (lb) |
|---|---|---|---|---|
| SEB U 038 UP | UNC 3/8"-16 | 1,200 | 1,500 | 0.53 |
| SEB U 050 UP | UNC 1/2"-13 | 1,800 | 1,950 | 0.53 |
| SEB U 058 UP | UNC 5/8"-11 | 3,200 | 4,000 | 1.76 |
| SEB U 075 UP | UNC 3/4"-10 | 4,750 | 5,900 | 1.76 |
| SEB U 100 UP | UNC 1"-8 | 7,500 | 9,300 | 5.73 |
| SEB U 125 UP | UNC 1-1/4"-7 | 12,200 | 13,800 | 6.17 |
| SEB U 150 UP | UNC 1-1/2"-6 | 20,000 | 25,000 | 15.43 |
| SEB U 200 UP | UNC 2"-4.5 | 33,000 | 35,200 | 16.09 |
⚠
Never exceed the rated Working Load Limit. Always torque to the specified value before use. Always follow applicable domestic safety regulations. Inspect before every use — remove from service if deformed, cracked, or damaged.
CE │ ISO 9001 │ ISO 14001 │ 360° SWIVEL │ CODITRACER Codipro Made in Luxembourg
